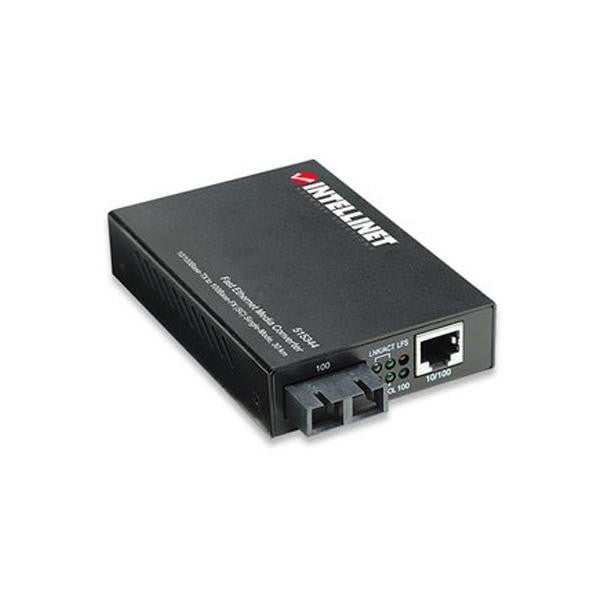

515344 Fast Ethernet Media Converter

Overview:

INTELLINET NETWORK SOLUTIONS Fast Ethernet Media Converter is a device specifically designed for network designers to migrate from copper-based Ethernet to fiber Ethernet. In this way, transitions or development of existing networks can be achieved with minimum cost and in a simple way. The converter works in a completely understandable way in the network, so the network continues to work as it did before  but now it can support both copper and fiber media.

Extends the size of an existing network
It provides fiber connectivity to Ethernet segments, allowing even greater network expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption of installing additional routers.

Increases Distance Between Network Devices
Connecting the converter to fiber sections can further extend the distance between network nodes. This can be achieved by a direct connection between the converter and a fiber-based node or network device.

Wiring Flexibility
Network administrators can install fiber cabling anywhere in a network without changing the copper-based Ethernet layout. The converter's compact size allows it to be easily installed in any narrow desktop or wall-mounted installation. Several converters can be installed simultaneously in a 19" rack-mountable frame.

General Features:

• Data transfer rate: 100 Mbps
• One 10/100Base-TX RJ-45 Port, maximum distance 100 m / 300 ft
• Auto MDI/MDI-X support and auto-negotiation RJ-45 port
• One 100Base-FX Single-mode fiber SC duplex port
• Fiber distance support: up to 30 km/18.6 mi (9/125 µm cable)
• Status LEDs to easily view the status of the device
• Link Failure Signal (LFS)
• Remote and local network support testing
• DIP option switches for multiple configurations
• External power adapter
• Can be used alone or with INTELLINET NETWORK SOLUTIONS 519151 model converter chassis (12 Port)

Technical Features:

standards

• IEEE 802.3 (Twisted Pair Ethernet)
• IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)

General

• Media Support:
  • 100Base-TX Cat3 or higher UTP/STP RJ-45, EIA/TIA 568
  • 100Base-FX Single-mode 9/125 μm fiber
• Connectors:
  • One RJ-45 port, 100Base-TX
  • One Fiber SC duplex port, 100Base-FX
• Distances:
  • 30 km / 18.6 mi (9/125µm Fiber cable)
  • 100m / 300ft (RJ-45 cable)
• Wavelength: 1310 nm
• Min. TX Power: -15 dBm
• Max. TX Power: -8 dBm
• RX sensitivity: -34dBm
• Min. Power budget: 19 dB
• Max. Power budget: 26 dB
• Approvals: Class A FCC, CE Marked

LEDs

• COL: indicates data conflict amber flash light
• FDX: Green color indicates operating in full duplex mode
• ACT: Flashes green to indicate data transfer
• LNK: green color indicates that a link signal is received from a compatible device
• LFS: lights up red in case of a break in the fiber link or cable
• 100: Lights up green when data packets are transmitted at 100Mbps

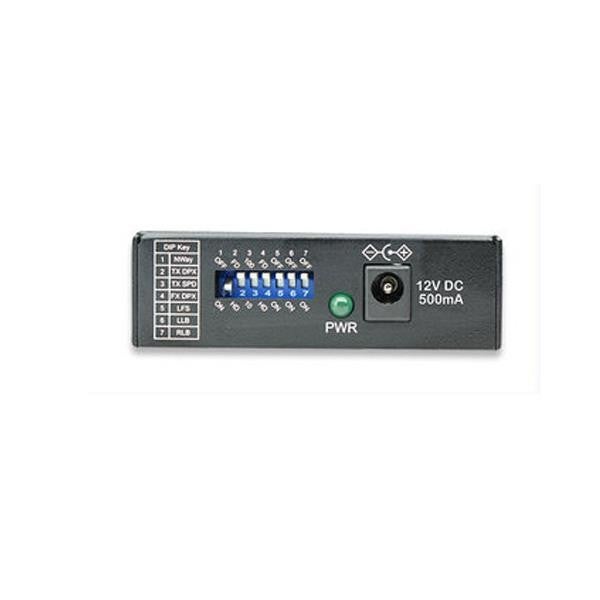

Dip Switches:

• DIP 1  Enables/disables auto-negotiation
• DIP 2  Copper port (RJ45) duplex mode; Full-duplex or half-duplex
• DIP 3  Copper port (RJ45) data bit rate; 10Mbps or 100Mbps
• DIP 4  Fiber port duplex mode; Full-duplex or half-duplex
• DIP 5  Enables/disables the link failure signal (LFS)
• DIP 6 – Enables/disables local area network support (LLBK)
• DIP 7 – Enables/disables remote network support (RLBK)

Power

• External power adapter, 12 V DC, 0.5 A

Environmental Features

• metal enclosure
• Dimensions: 133(Length) x 86(Width) x 29(Height) mm (5.23 x 3.4 x 1.1 in.)
• Weight: 158g (0.34lbs.)
• Operating temperature: 0° to 50°C (32° to 122°F)
• Operating Humidity: 10% to 80% RH, Non-condensing
• Storage temperature: -20°C to 70°C (-4°F to 158°F)

Package Contents

• Fast Ethernet Media Converter
• External power adapter
• User guide
