Name: Grundfos - SCALA1 3-45
Brand: Grundfos
SKU: Z9120C32E62EB9D175BA0Z
Price: 19600 EGP
Availability: InStock

bold

Previously browsed products

GAM Web

Specifications
Product name	SCALA1 3-45
Product No	99530405
EAN number	5713830591598
Technical
Rated flow	3.59 m³/h
Rated head	25 m
Maximum head	44 m
Shaft seal type	BVBP
Approvals	CE,EAC,AAA
Approvals for drinking water	WRAS,ACS
Curve tolerance	ISO9906:2012 3B
Model	A
Start pressure	2.2 bar
Materials
Pump housing	Composite
Impeller	Composite
Installation
Range of ambient temperature	0 .. 55 °C
Maximum operating pressure	8 bar
Maximum permissible inlet pressure	3 bar
Type of inlet connection	R
Type of outlet connection	R
Size of inlet connection	1 inch
Size of outlet connection	1 inch
Pressure rating for connection	PN 8
Liquid
Pumped liquid	Water
Liquid temperature range	0 .. 45 °C
Selected liquid temperature	20 °C
Density	998.2 kg/m³
Electrical data
P1 max.	910 W
Rated power - P2	0.58 kW
Mains frequency	50 Hz
Rated voltage	1 x 230 V
Maximum current consumption	4.1 A
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Length of power cable	1.5 m
Power plug	Type E/F (CEE7/7)
	Schuko plug
Others
Net weight	12 kg
Gross weight	14 kg
Shipping volume	0.046 m³
Storage temperature range	-40 .. 70 °C
Finnish LVI No.	4732545
Norwegian NRF no.	9045229
Quotation

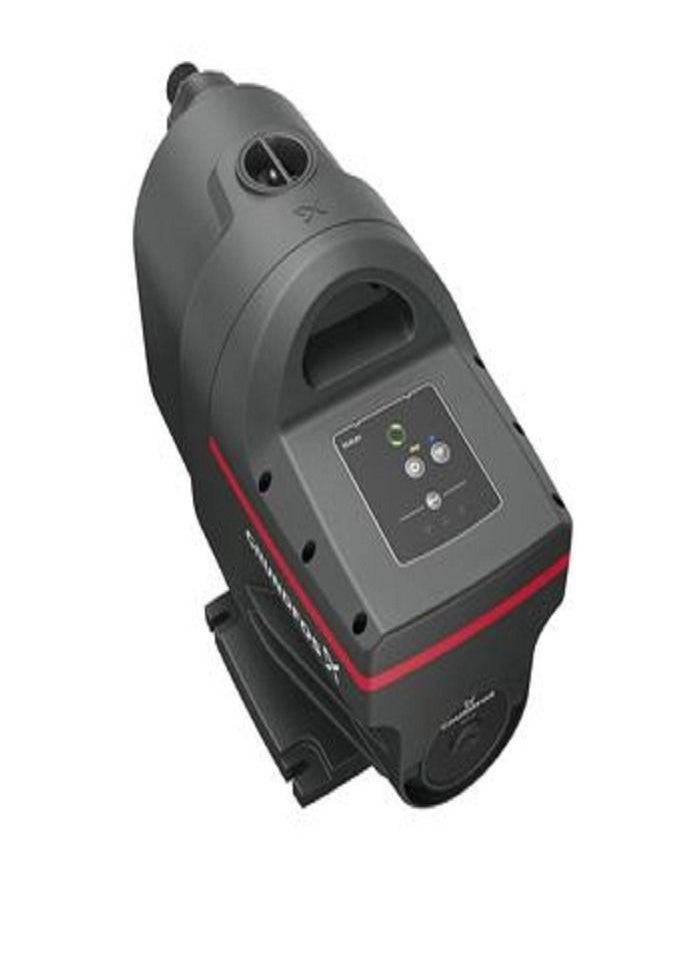

SCALA1 3-45

The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure.
As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.
SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application.
SCALA1 incorporates advanced protection features such as:
•	Dry running protection that will automatically stop the pump in case of water shortage
•	Cycling protection which will prevent pump starting frequently in case of minor leakages in installation
•	Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case of pipe breakages.

The pump has a built-in motor protection that will stop the pump if exposed to excessive temperature due to high ambient temperature, in case of seizure or overload, thus preventing a motor burnout.
With Grundfos GO you can easily setup SCALA1 as a Twin booster system, operating as duty/stand by as well as duty/assist. It is also possible to add external input control and schedule a pump operation via calendar function.
SCALA1 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.
