Name: Grundfos - SOLOLIFT2 CWC-3
Brand: Grundfos
SKU: ZA2F4DA67BCF4E91CE8C5Z
Price: 28900 EGP
Availability: InStock

bold

Previously browsed products

GAM Web

Specifications
Product name	SOLOLIFT2 CWC-3
Product No	97775316
EAN number	5710624187258
Technical
Head max	8.5 m
Approvals on nameplate	CE,TR,VDEEMV,VDE,MORO
Curve tolerance	ISO9906:2012 3B
Materials
Tank	Plastic
Installation
Pump inlet	32/36/40, 36/40/50, DN 100
Pump outlet	22/25/28/32/36/40
Number of leads	3X0,75MM2
Liquid
Liquid max temp	50 °C
Density	998.2 kg/m³
Electrical data
Power input - P1	620 W
Mains frequency	50 Hz
Rated voltage	1 x 220-240 V
Rated current	3 A
Cos phi - power factor	0.92
Rated speed	2800 rpm
Enclosure class (IEC 34-5)	IP44
Insulation class (IEC 85)	F
Thermal protec	THERMIK S06-150-05
Length of cable	1.2 m
Cable type	H05VV-F-3G
Type of cable plug	SCHUKO
Others
Net weight	8.09 kg
Gross weight	9.69 kg
Product range	International
Danish VVS No.	614364632
Swedish RSK No.	5885483
Finnish LVI No.	4965314
Norwegian NRF no.	9045712
Quotation
SOLOLIFT2 CWC-3

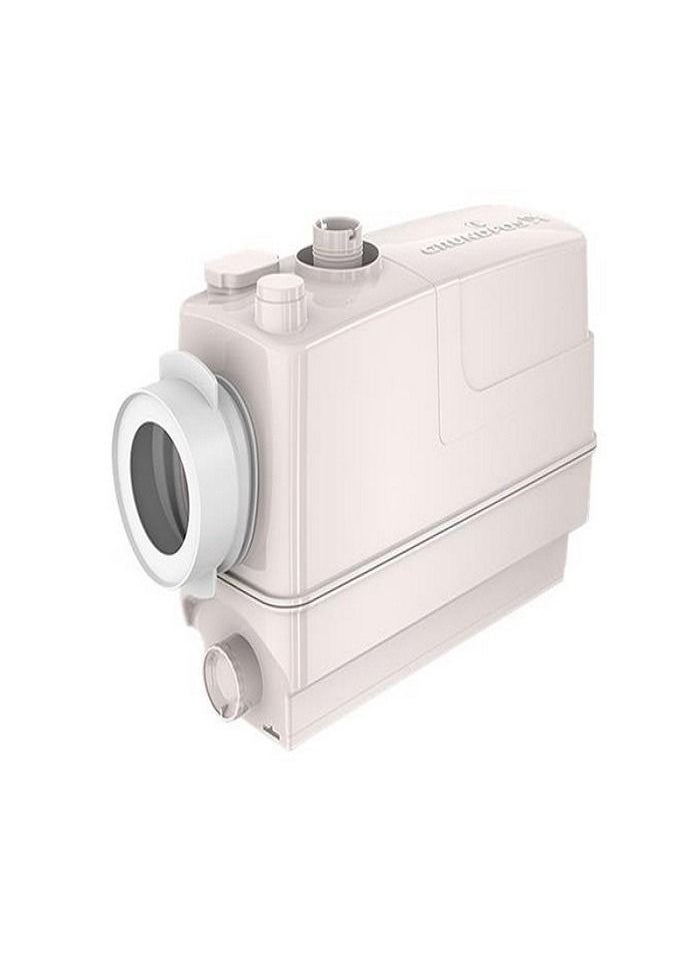

Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:
•	wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with
•	Cable with or without plug (see technical data)
•	Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
•	integrated non return valve
•	Dry and high performance motor unit incl. thermal protection, pressure switch and controller
•	DN100 toilet connection hose
•	Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
•	Slot for an alarm board with buzzer (accessory)
•	Manual anti clogging function and separate drain connection for service
•	Venting valve with overflow protection
•	Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.
