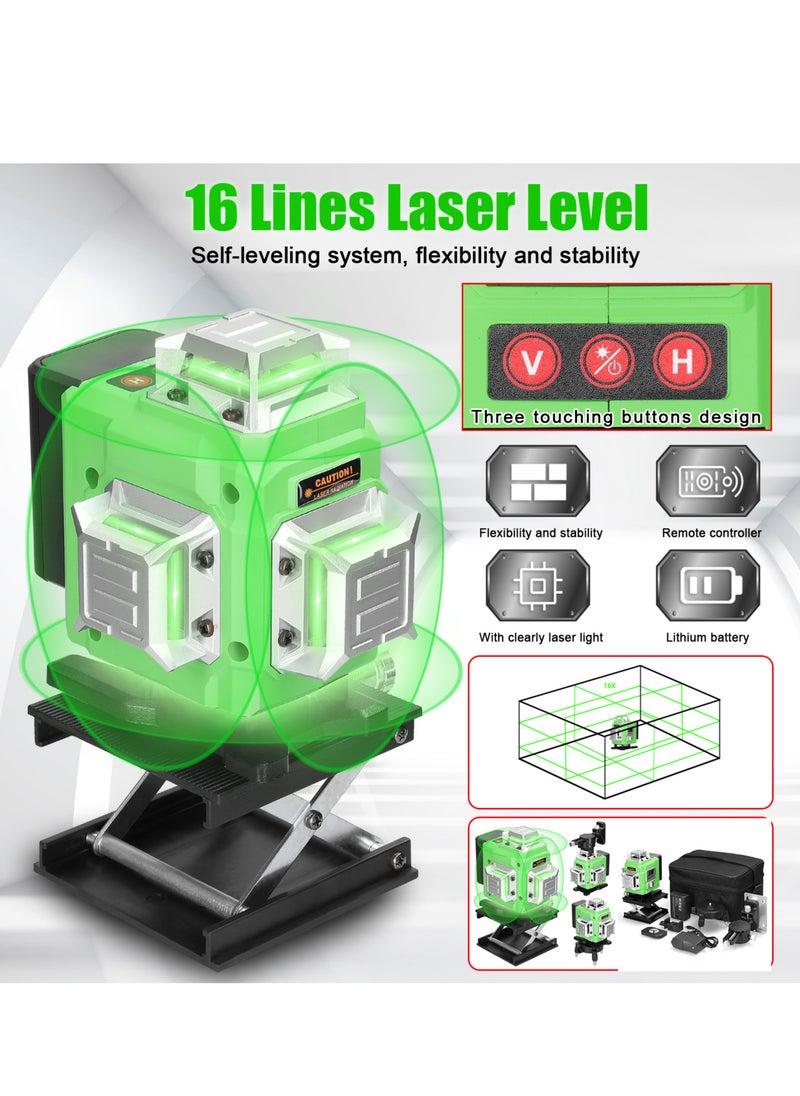

Multifunctional 16 Lines Laser Level 3° Self-leveling Machine Rechargeable Lithium Battery Leveling Tool Omnidirectional Ground Wall Sticker Waterproof Home Improvement Tools Set

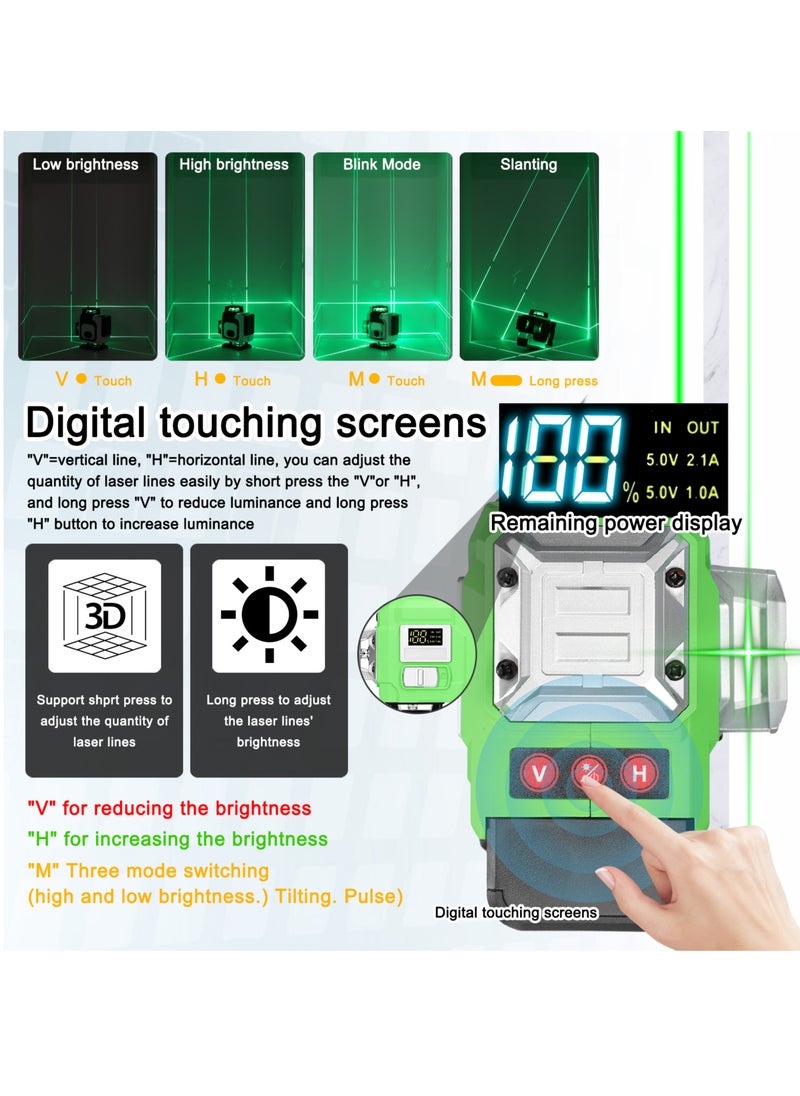

【Laser Quantity & Brightness Adjustable】: Touching panel, convenient for you to control the laser quantity and laser brightness, which makes it suitable for both indoor and outdoor use, with continuous laser and pulse laser. And also support pulse laser under tilt mode.

【High Extensibility】: The bottom of the laser level is reserved with 1/4inch screw thread for easy connection, it can also be used with tripod (not included) by 1/4inch to 5/8inch threaded rotation base (included) or 1/4inch to 5/8inch adapter (not included) to adjust the working height of the machine.

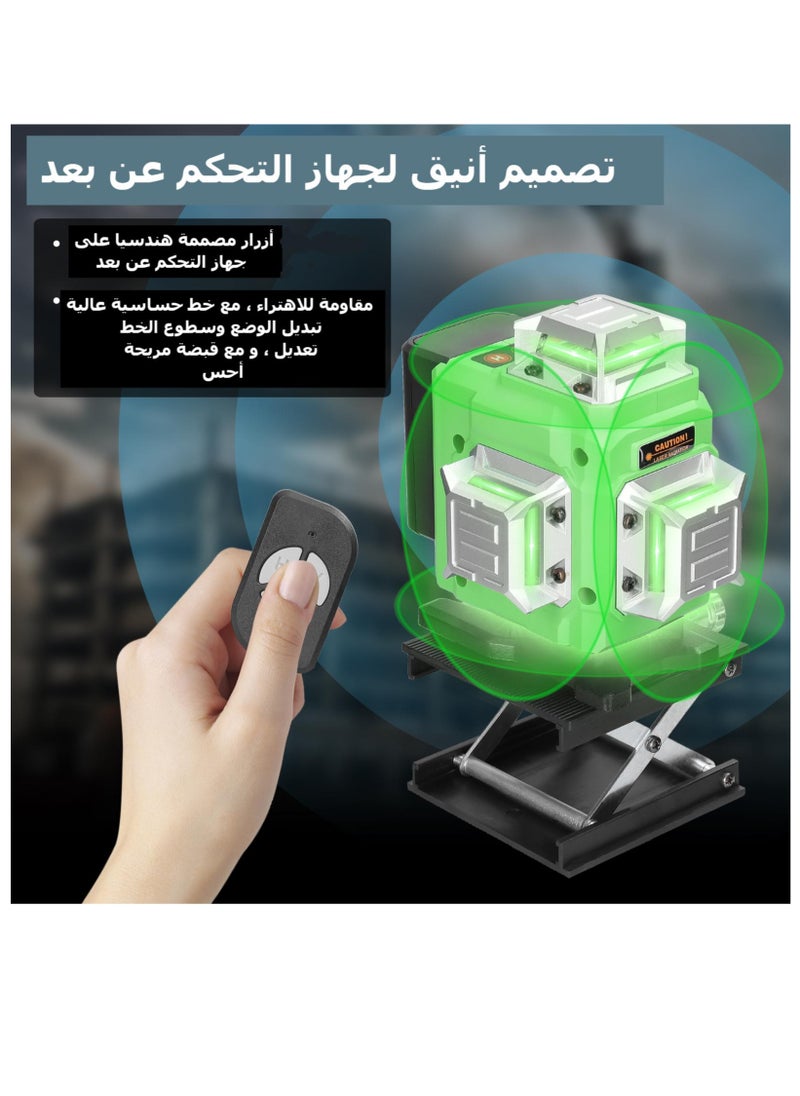

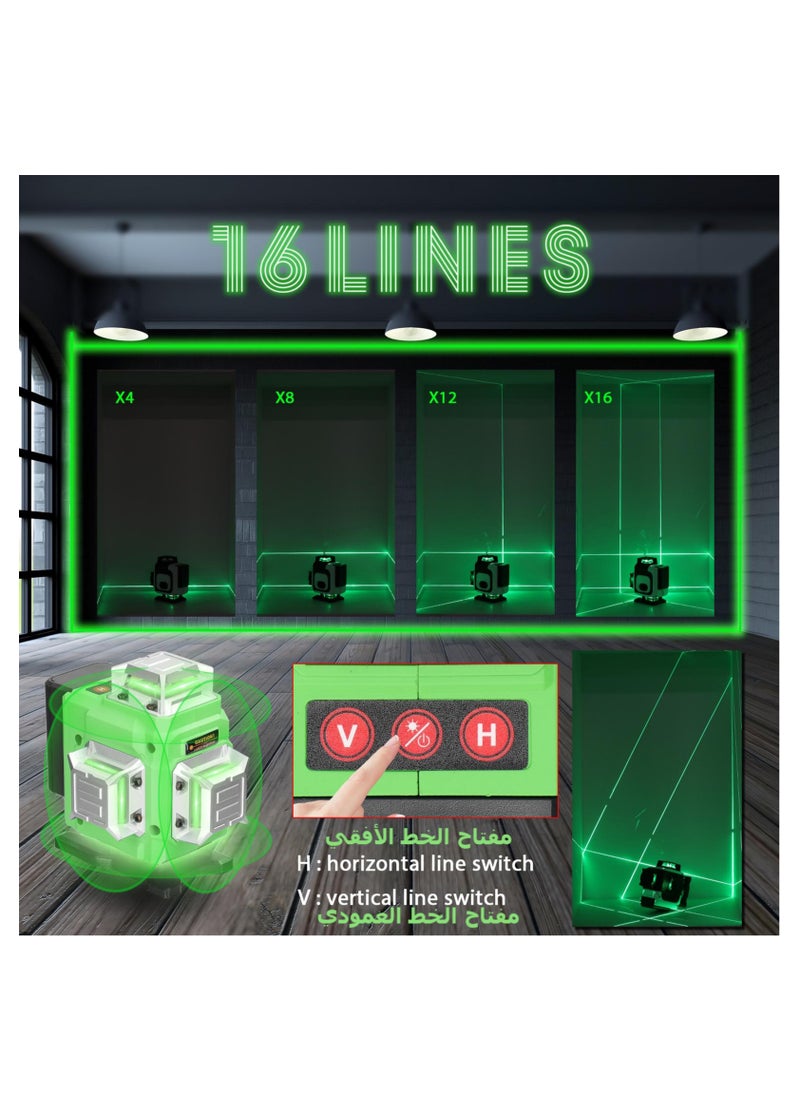

【Stylish Remote Controller Design】: Ergonomically designed buttons on the remote controller, wear-resistant, with high sensitivity line mode switching and line brightness adjustment, and with a comfortable grip feel. "V"=vertical line, "H"=horizontal line, you can easily adjust the amount of laser lines by briefly pressing "V" or "H"; and long pressing "V" to decrease luminance and long pressing "H" to increase luminance.

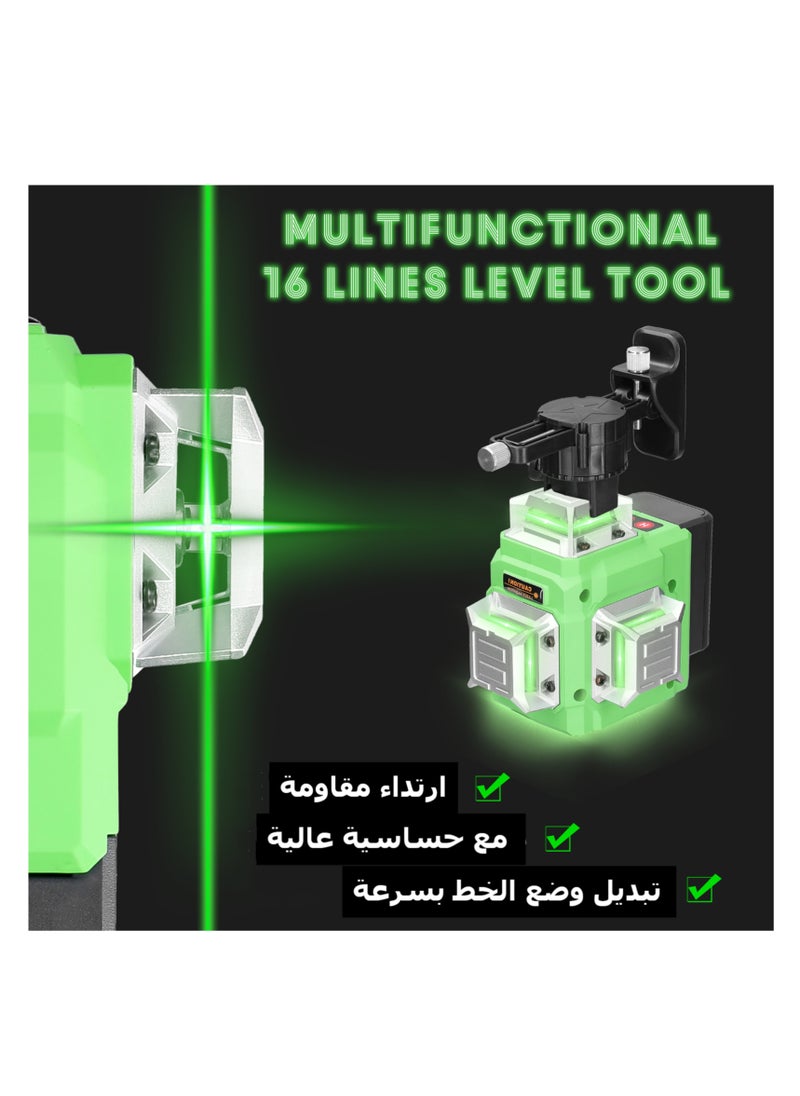

【7mm Wall-mounted Bracket】: The T-shaped bracket with 7mm wall mounting distance, which has 360° rotatable fine adjustment mechanism, up and down angle regulation and 47mm fore-and-aft regulation distance, all the structures can make the machine quickly find the target (1/4 inch screw size).

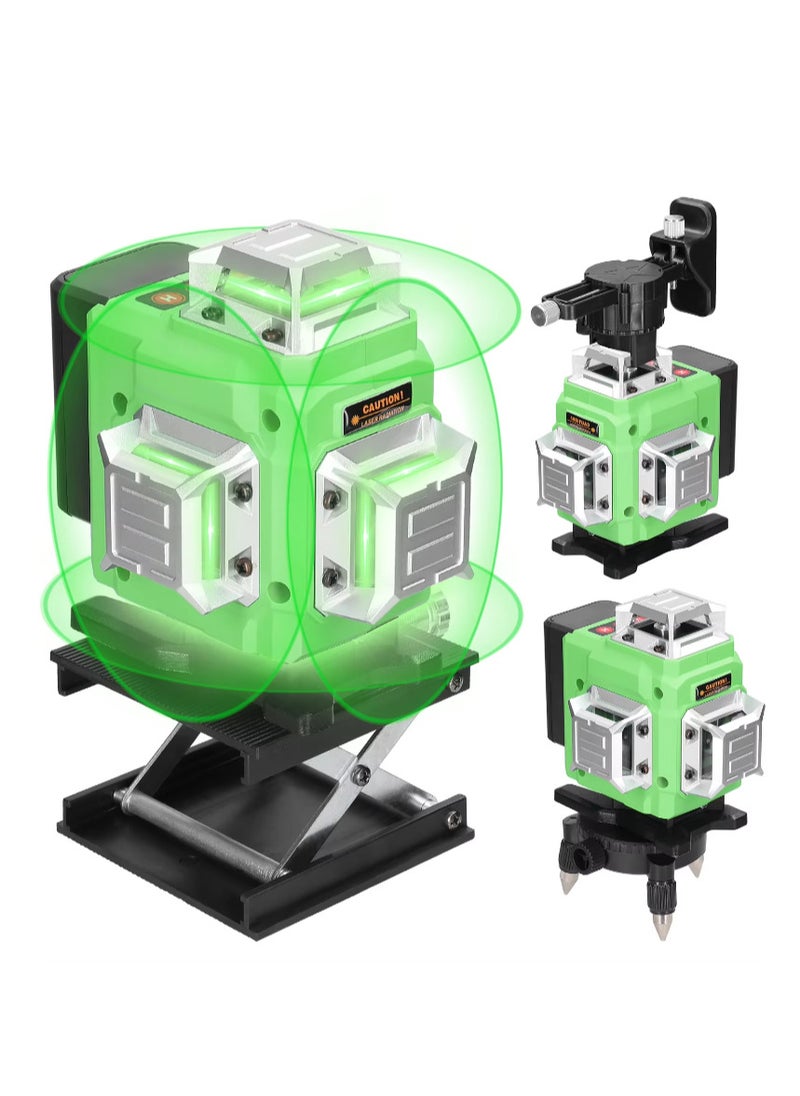

【Lifting Platform】: The laser level lifting platform is height adjustable design, max 65mm adjustment ranges, anti-slip texture design for increasing friction, more stable placement.

​【Window Clip】: There is a window clip holder for working with the wall-mounted bracket, with 27-36mm wide clamping ranges, suitable for a variety of laser levels.

【Carrying Bag】: Comes with a EVA cloth bag, wear resistant and impact resistant, easy to carry, providing quick and convenient mobility and storage in a complex environment.

Note:

Please do not let the laser line shoots your eyes directly, and do not stare directly at the laser light.

The laser output maker is located at the output hole.

Do not disassemble the instrument and perform your own internal repairs.

The instrument meets laser radiation safety rating standards.​

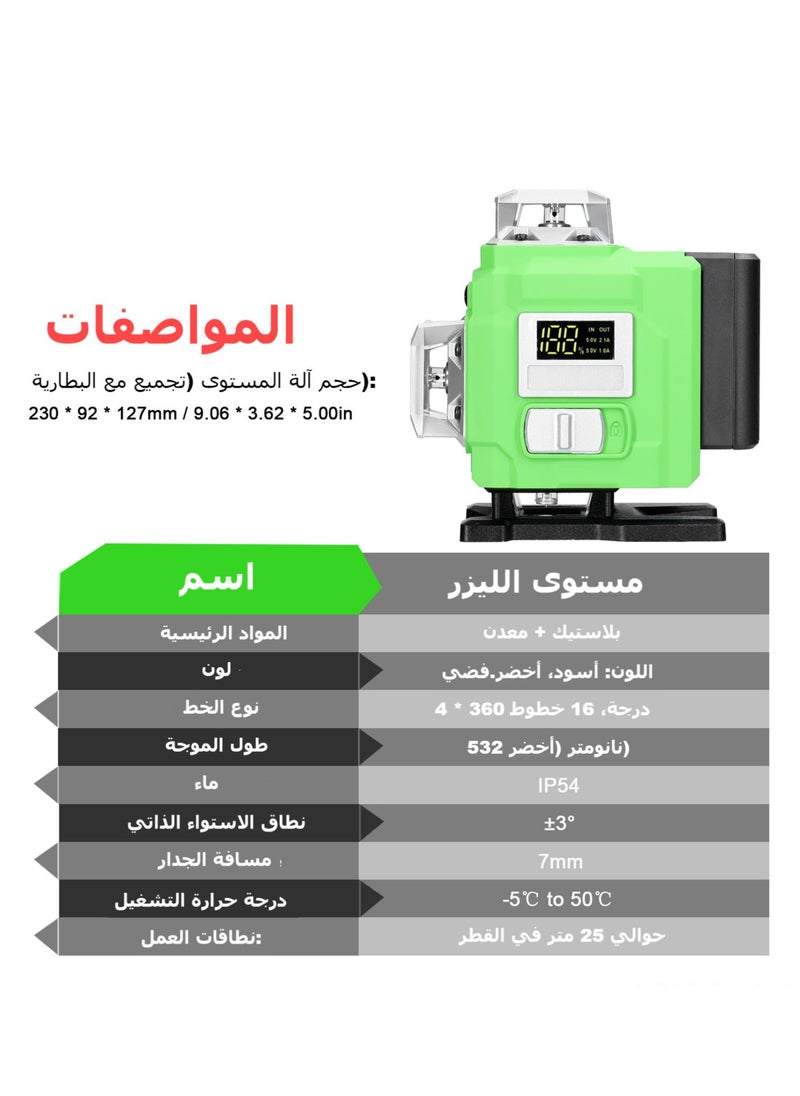

Specifications:

Name: Laser Level

Main material: plastics+metal

Battery: 2 * rechargeable lithium batteries, 3.7V, 2400mAh (included)

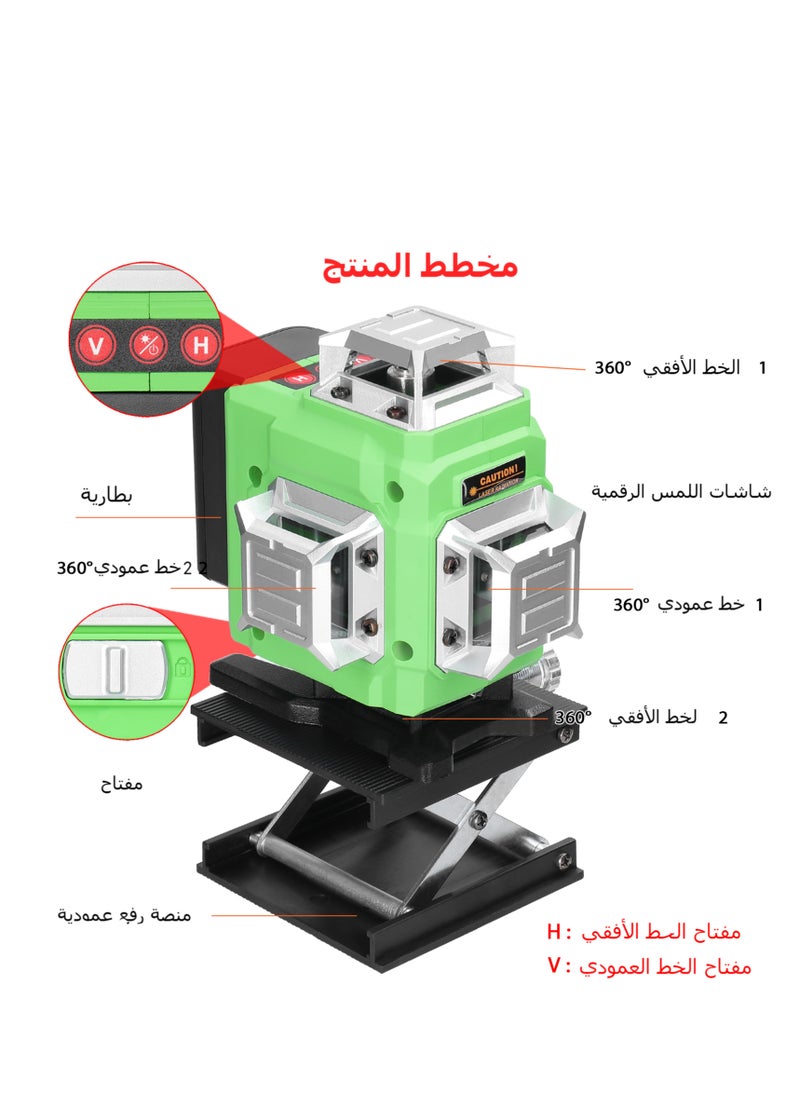

Line type: 4 * 360°, 16 lines

Wavelength: 532nm (Green)

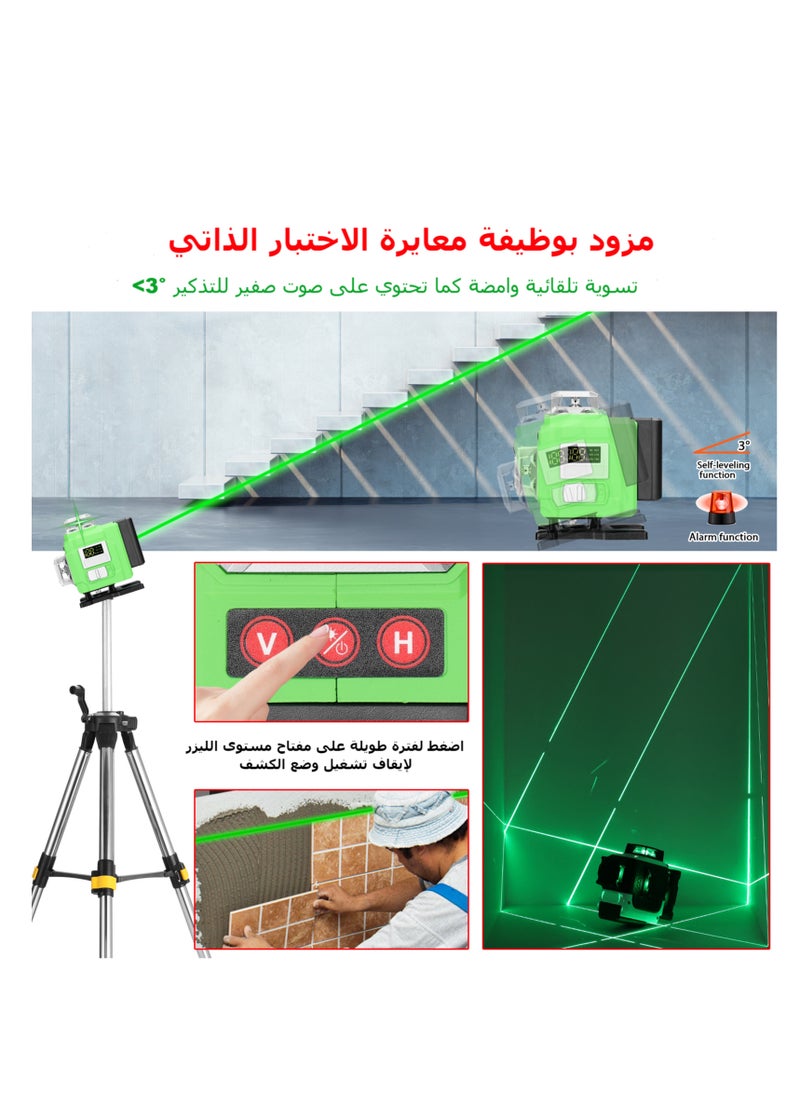

Self-leveling angle: ±3°

Wall mounted distance: 7mm

Operating temperature: -5℃ to 50℃

Working ranges: about 25m in diameter

Waterproof: IP54

Level machine size (assemble with battery): 230 * 92 * 127mm / 9.06 * 3.62 * 5.00in

Wall-mounted bracket size: 155 * 68 * 83mm / 6.10 * 2.68 * 3.27in

Iron board size: 100 * 60 * 13mm / 3.94 * 2.36 * 0.51in

Rotation base size: 89 * 97 * 70mm / 3.50 * 3.82 * 2.76in

Lifting platform size: 110 * 90 * 28mm / 4.33 * 3.54 * 1.10in

Clip holder size: 64 * 26 * 26mm / 2.52 * 1.02 * 1.02in

Remote controller size: 60 * 35 * 12mm / 2.36 * 1.38 * 0.47in

EVA bag size: 220 * 200 * 135mm / 8.66 * 7.87 * 5.31in

Package size: 210 * 160 * 250mm / 8.27 * 6.30 * 9.84in

Package weight: 1500g / 3.31lb

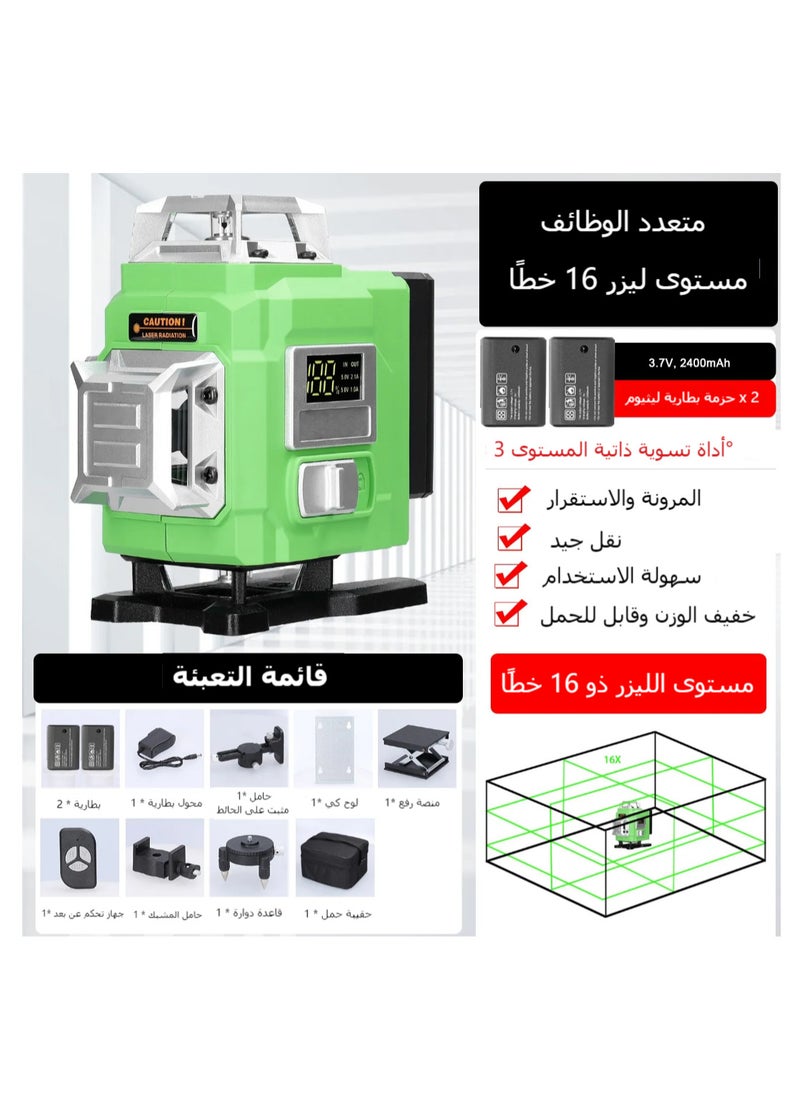

Packing List:

1 * Level Machine

2 * Battery

1 * Battery Adapter

1 * Rotation Base

1 * Wall Mounted Bracket

1 * Iron Board

1 * Lifting Platform

1 * Clip Holder

1 * Remote Controller

1 * Guideline

1 * Carrying Bag
