PTP 5-N Unity N-Type Connectors Point-To-Point Backhaul Device 4.780 – 6.100 GHz Support White
Sorry! This product is not available.
1
Available Soon
Highlights

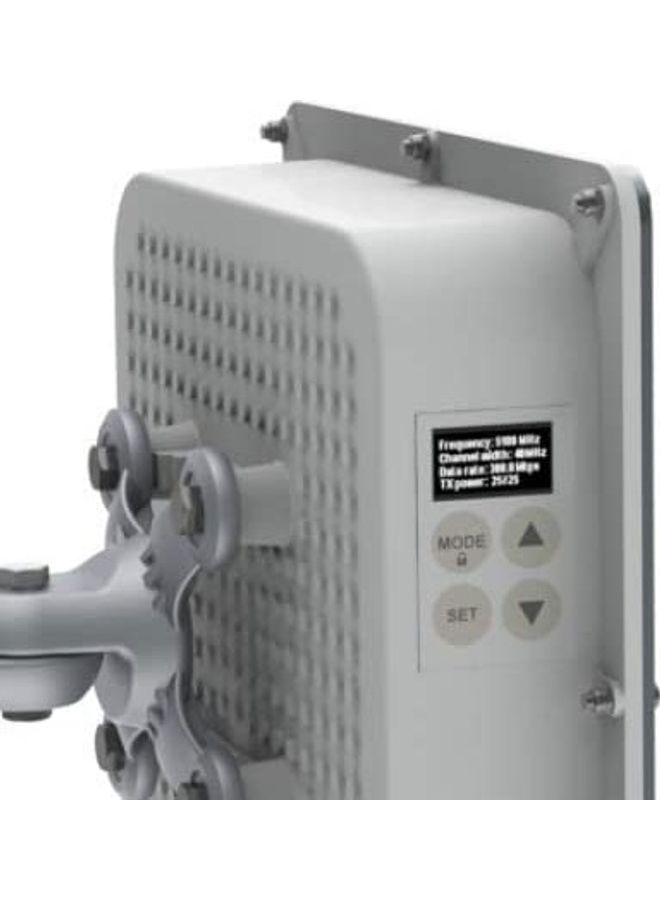

- LigoWave unleashes its highest-end, license-free PTP device with the release of the LigoPTP UNITY series product line. Making use of groundbreaking 2x2 MiMo technology, the LigoPTP 5-23/5-N UNITY delivers real aggregate throughput capability of up to 220 Mbps (110 Mbps full-duplex) combined with high packets-per-second performance (140000) and at the same time a link bonding option integrated on the device to double the capacity for up to 400 Mbps (200 Mbps Full-duplex). Link bonding is done using a powerful CPU and uses fair queuing mechanism. The throughput is not only doubled, but it also ensures radio link redundancy at the same time and works efficiently when traffic source is coming from a single MAC address.Highlights:220 Mbps capacity140,000 PPS4.780 – 6.100 GHz supportHigh output power 28 dBm (per chain) radioN-connectors for external antennaPowerful OSW-jet 2 - protocol optimized for point-to-point scenarioWire speed QoS (L2 and L3)2+0 and 1+1 configuration supportExternal OLED screen for antenna alignment and throughput testingWeather proof (IP-67 rated) designIntegrated surge protection (IEC standards rated)Free NMS (Infinity Controller)Professional articulating mounting bracket
Specifications
| Colour Name | White |
| What's In The Box | 1 x LigoPTP 5-N Unite,1 x Poe Adapter, 1 x Pole Mount Bracket |
| Wireless Technology | WiFi |
| Band Technology | Dual Band |
| Antenna Type | External |
| Wireless Standard | N |
| Product Length | 335 mm |
| Max Data Transfer Rate | 220 Mbps |
| Model Number | LigoPTP 5-N UNITY |
| Model Name | LigoPTP 5-N UNITY |
| Number of Ports | 2 |
| Wireless Standard Value | 802.11 |
