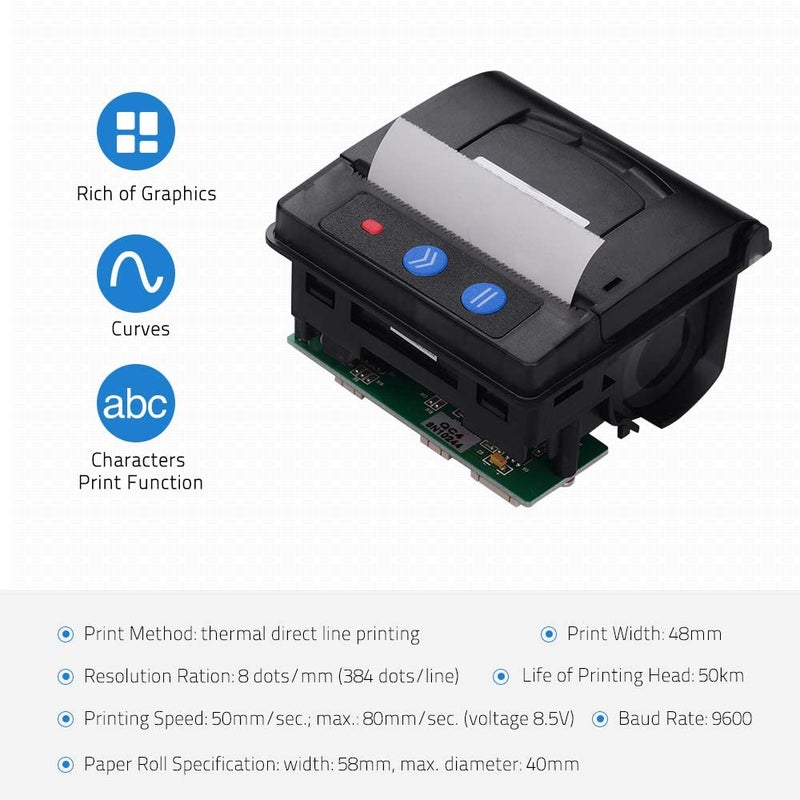

Highlights- Low-noise direct thermal printing method; fast printing speed.
- Support max. 40mm (diameter) paper roll, around 16-20 meter; serial interface (RS-232C,TTL).
- Rich of grasphics / curves / characters print function.

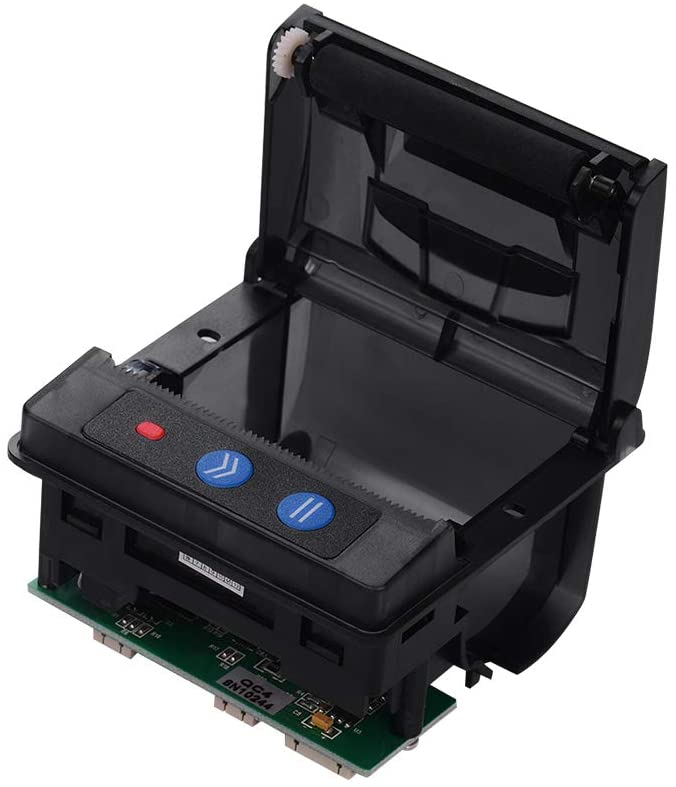

- Easy paper loading structure.
- Support 5V-9V wide power voltage.
OverviewPaper width: 2.244 in.
Print width: 1890 in.
Resolution Ration: 8 dots/mm (384 dots/line)
Head Life: 31.1 mi.
Print speed: 1,969 in/s. ; Max. : 3,150 in/s. (voltage 8.5V)
Character size: ANK: 9 x 17, 12 x 24; GBK: 24 x 24.
Chinese character fonts: GB18030: 12 x 24 or 24 x 24 dots.
Outline Dimensions (W x D x H): 3024 x 3047 x 1874mm
Installation: 2866 x 2890 in.
Integrated depth: 1364 in.
Paper roll specifications: width: 2283 in, max. Diameter: 1.575 in.

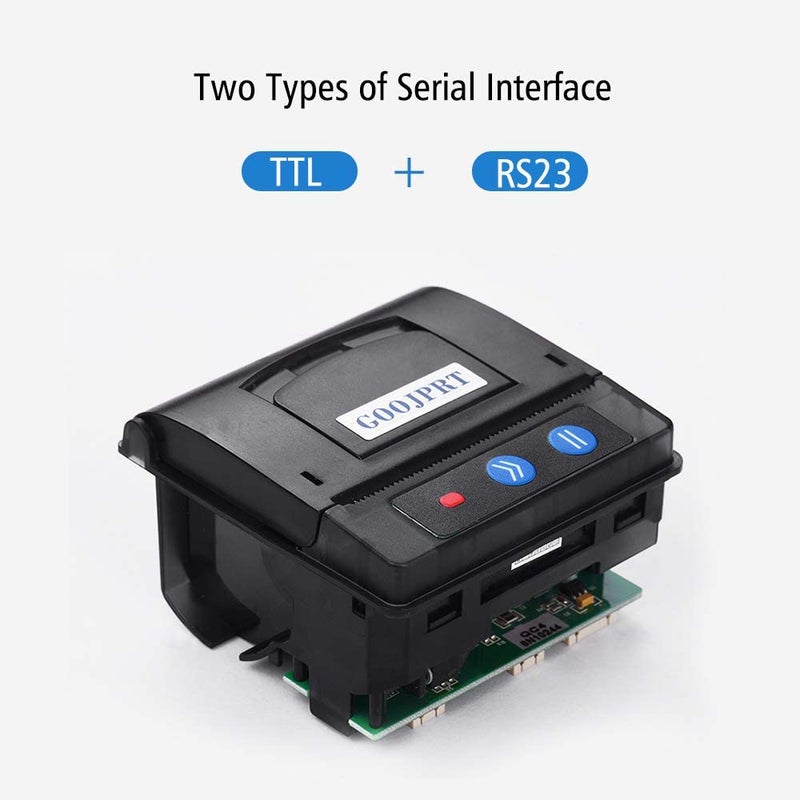

Interface: Serial (RS232, TTL)
Baud Rate: 9600
Input Power: 5 - 9 VDC, 2 A.
Operating Temperature: 32.0 ° F to 131.0 ° F.
Storage temperature: -13.0 ° F ~ 158.0 ° F.
Operating humidity: 50.0 ° F ~ 176.0 ° F.
Storage humidity: 50.0 ° F ~ 194.0 ° F.
