Highlights- The fan colour can be switched among variants including pulse red/green/blue/yellow/purple/light blue/white, RGB cycle, Solid red/green/blue/yellow/purple/light blue/white and a LED off mode
- Smart RGB Series Adopt 120mm cooling fan with intelligent RPM control s excellent cool performance and silent operation
- Smart RGB Series are equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any Situations
- The fan is also constructed with a built-in memory function, Saving the colour applied and insuring the same colour selection every time you boot your PC
OverviewTechnical Specification

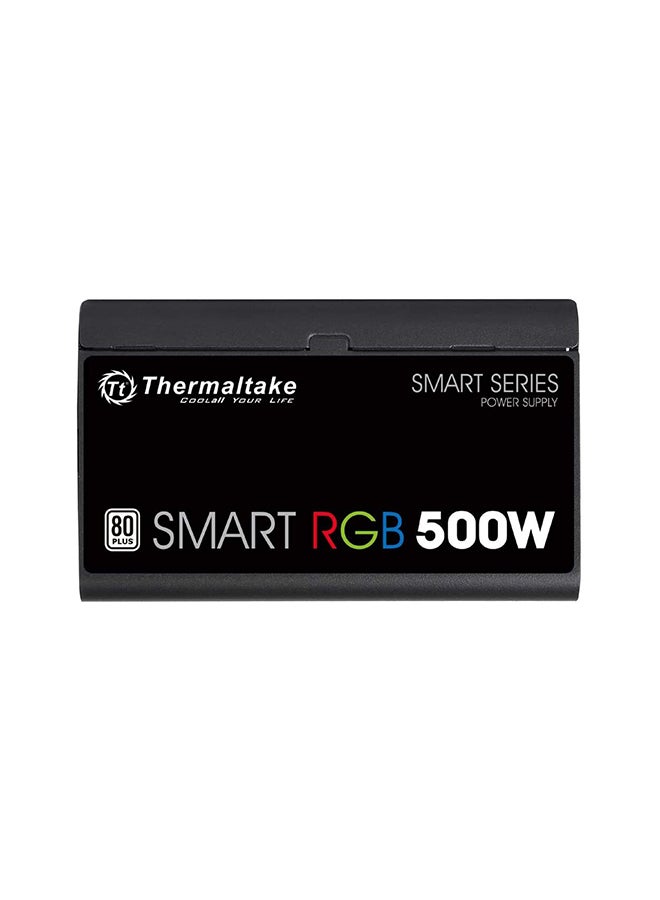

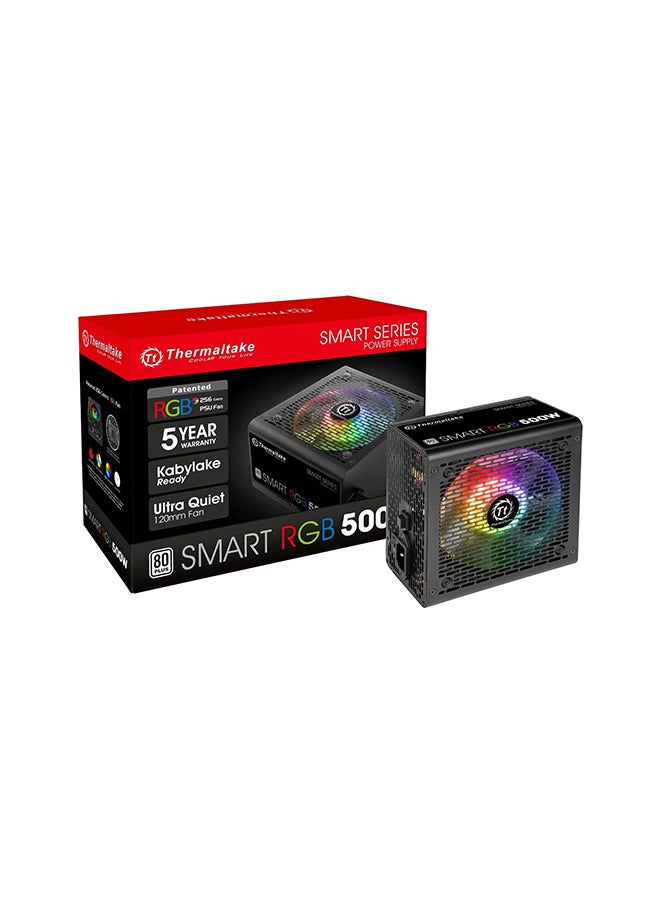

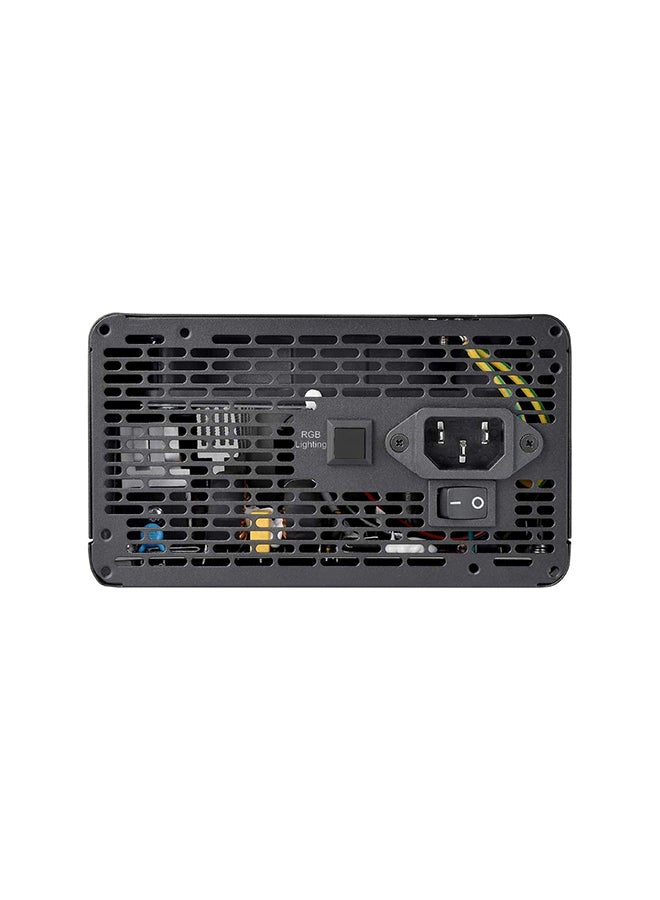

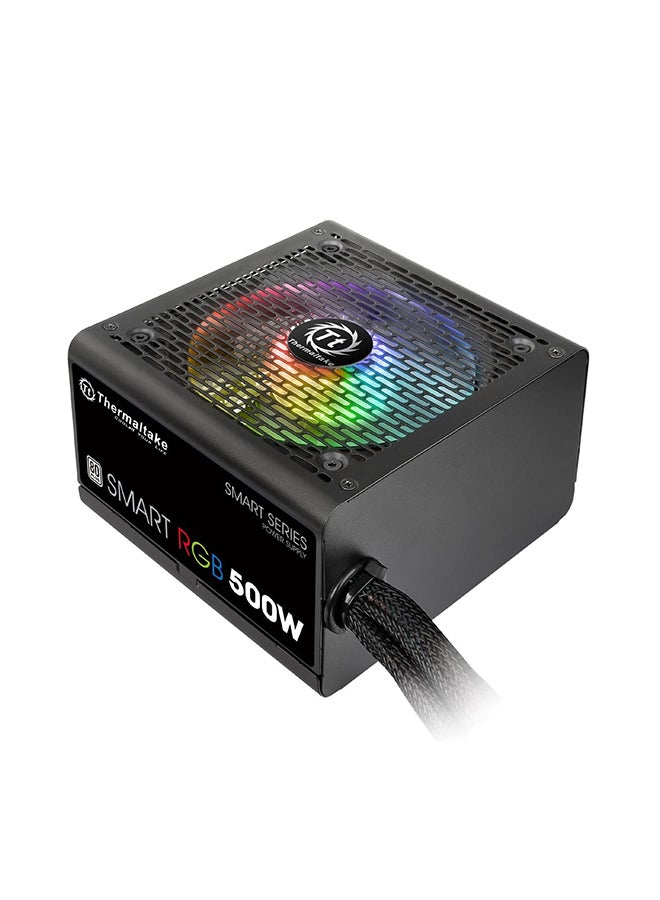

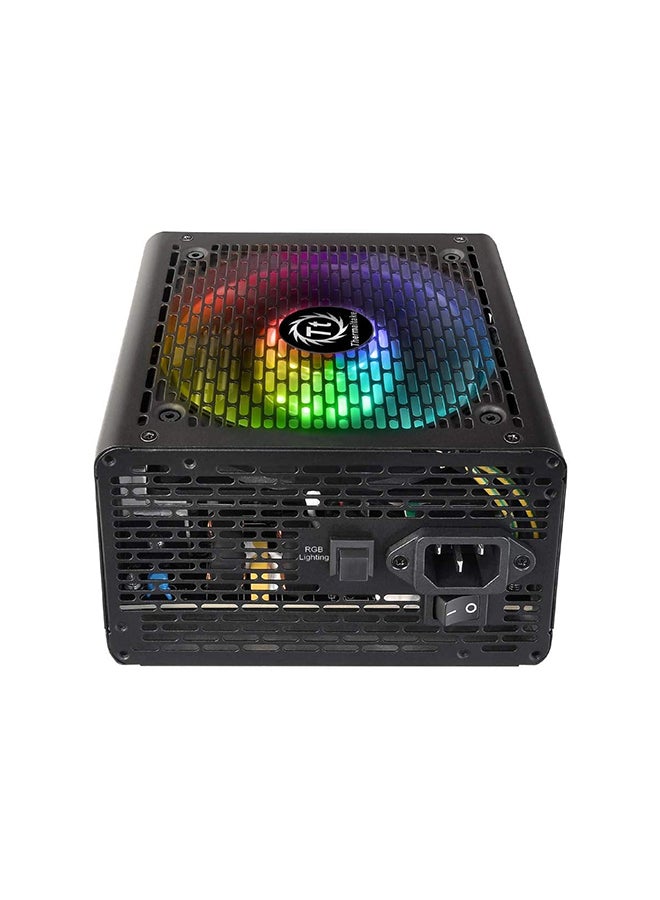

Thermaltake Smart RGB 500W PSU
Power Device
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 500 Watt

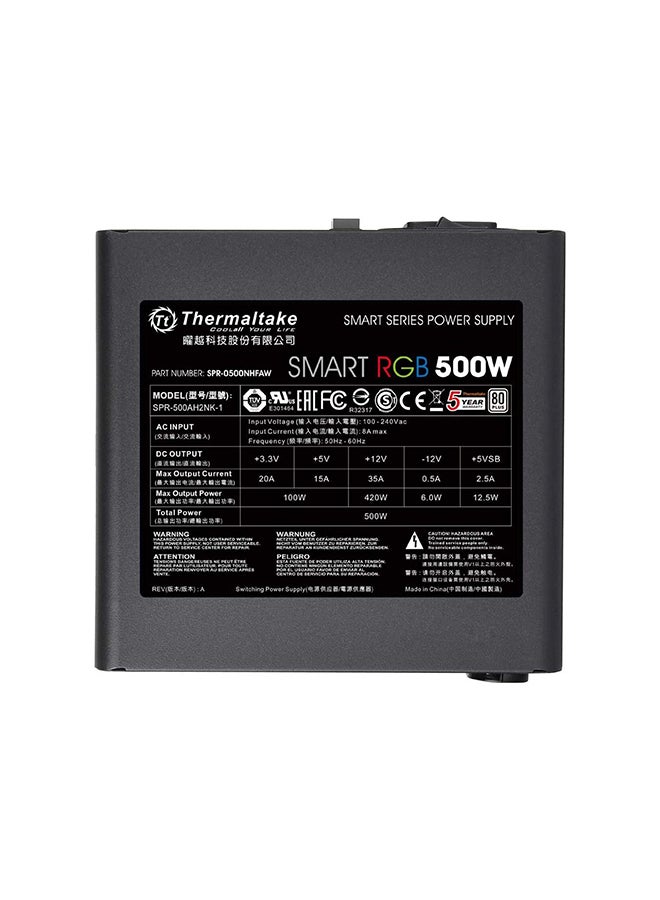

Output Current +3.3V - 20 A ¦ +5V - 15 A ¦ +12V - 35 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A
Efficiency 86%

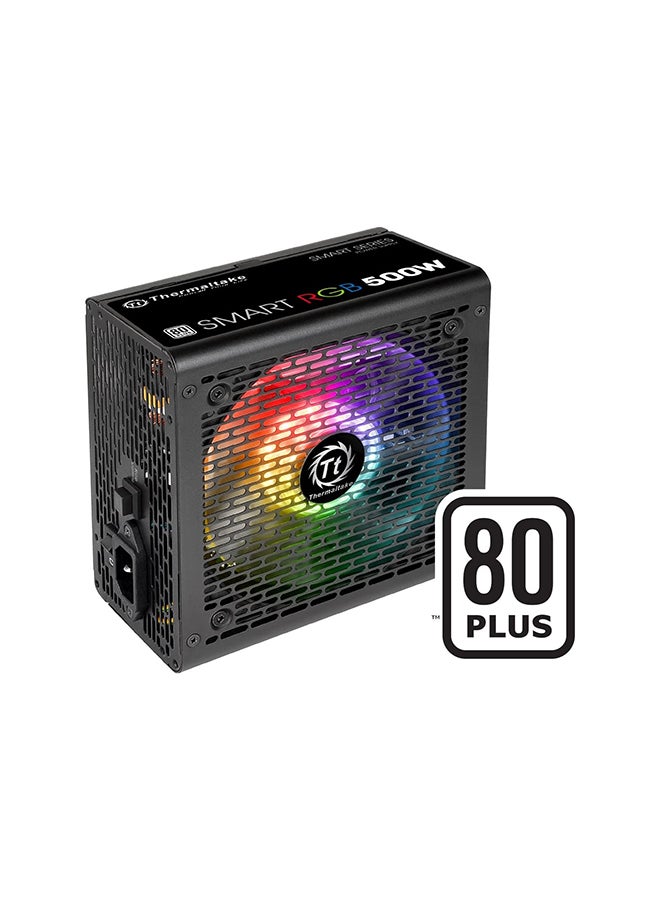

80 PLUS Certification 80 PLUS
Input Voltage AC 230 V
Frequency Required 50 - 60 Hz
Miscellaneous
MTBF 100,000 hours
Cooling System 120 mm fan
Features RGB LEDs, over voltage protection, overpower protection, short-circuit protection, LED lighting
Compliant Standards UL, TUV, CB, FCC, EAC
Service & Support
Environmental Parameters
Min Operating Temperature 5 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 85% (non-condensing)
Dimensions & Weight
Width 15 cm
Depth 14 cm
Height 8.6 cm
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.3
PSU Form Factor ATX
Colour Black
