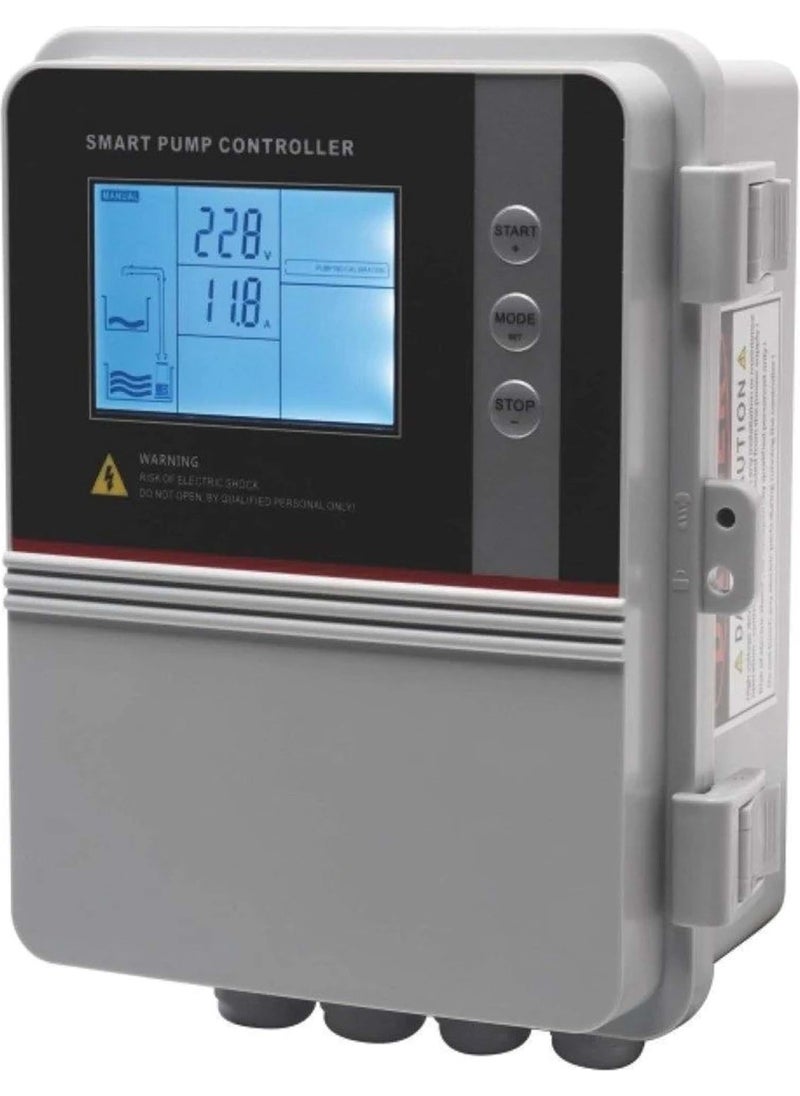

Impo PCS11 0.5 - 3hp Single Phase LCD Display 220V - Submersible Pump Control Panel

IMPO 220 V SINGLE PHASE DIVERS PROTECTION PANELS - (0.5-3 Hp) - PCS11

  Max. Capacity     :  For all maniphase powers between 0.37 kW - 2.2 kW - Direct start
  Model                     :  PCS11 LCD SINGLE PUMP PANEL - 220 V
  Feeding                 : 220 V
  Current adjustment range   :  0 - 15 A
  Relative Humidity              :  50% -  40 °C
  Dimensions (mm)       :  240*180*115
  Weight                    : 1.3 kg

Package Contents:  Protection panel, 3 well electrodes (with 50 cm cable), 2 concrete nails to hang the panel, 20 cm dissolvable tape, Turkish user manual

NOTE:  For pumps operating with external capacitors, it should not be forgotten to add a capacitor of appropriate capacity to the panel. There is a section for the capacitor in the panel.

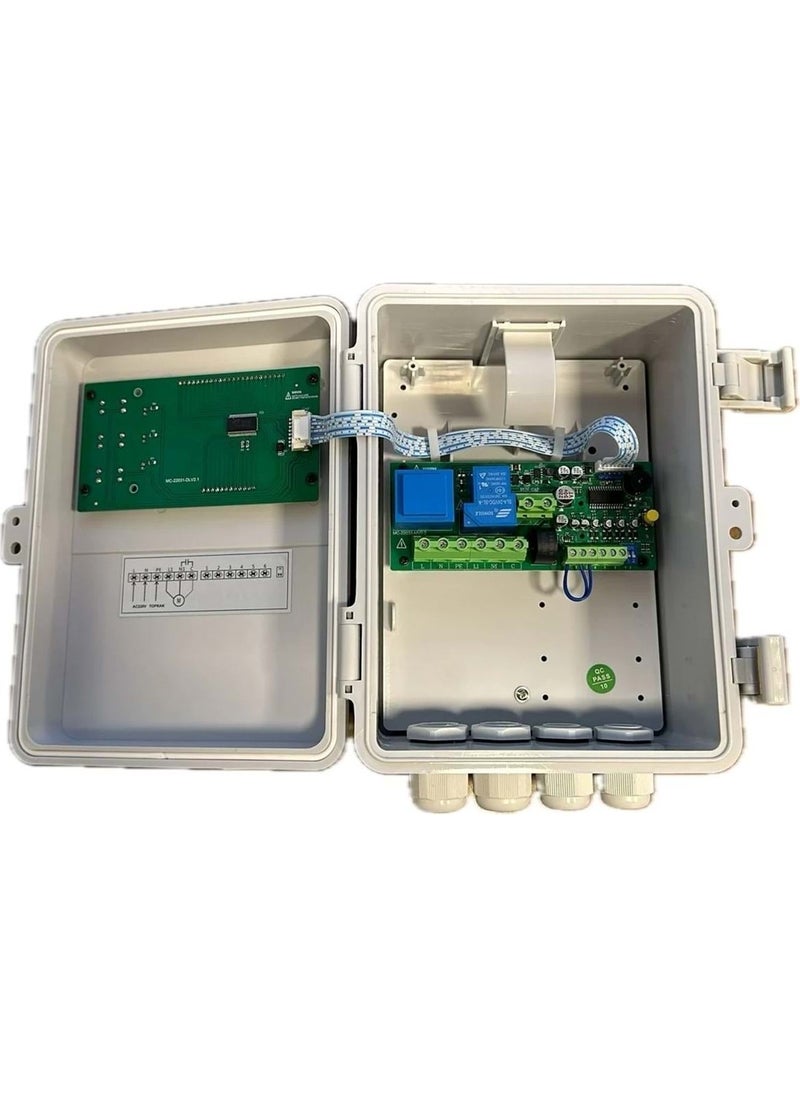

FUNDAMENTAL DIFFERENCES OF DIGITAL BOARDS WITH SCREEN FROM CLASSIC BOARDS:

1) Since the electricity inside the panel is 12 V, the risk of shock is low.

2) Operation can be done without using a liquid level electrode or floater.  It has a new system that detects the waterless operation status through the current drawn by the motor instead of receiving information from the electrodes.

Thus, you can reduce your costs without the cost of electrodes and cables. It is also possible to operate with electrodes or floaters if desired.

3) With automatic identification, pump motors can be introduced to the panel without any special entry.

4) Since overcurrent sensitivity is extremely sensitive, it provides full protection.  With its LCD illuminated display, all fault and operating information can be monitored on the screen.

5) It can be used in a single-pump wastewater system or a single-pump hydrophore system.

SINGLE PHASE LCD SCREEN PANEL FEATURES

* It can be used with all brands and models of single-phase household current pumps with motor power between 0.37 - 2.2 kW.

* Basically, it provides protection and control of deep well clean water divers, waste water divers and pumps in hydrophore systems.

* It takes up little space, is economical and provides sensitive operation. It is much safer than traditional panels.

* It has a rapid protection system that cuts off the power in 6 seconds when the pump runs out of water. In case of phase loss, it shuts down the pump in 2 seconds.

* You can see the last five faults on the screen.

* You can see the average operating time of the pump on the screen.

* There are 3 well electrode inputs, level float input and pressure switch inputs.

* Protection features: short circuit protection, overcurrent protection, phase failure, reverse phase protection, pump blocking, dry operation protection, low and high voltage protection.
