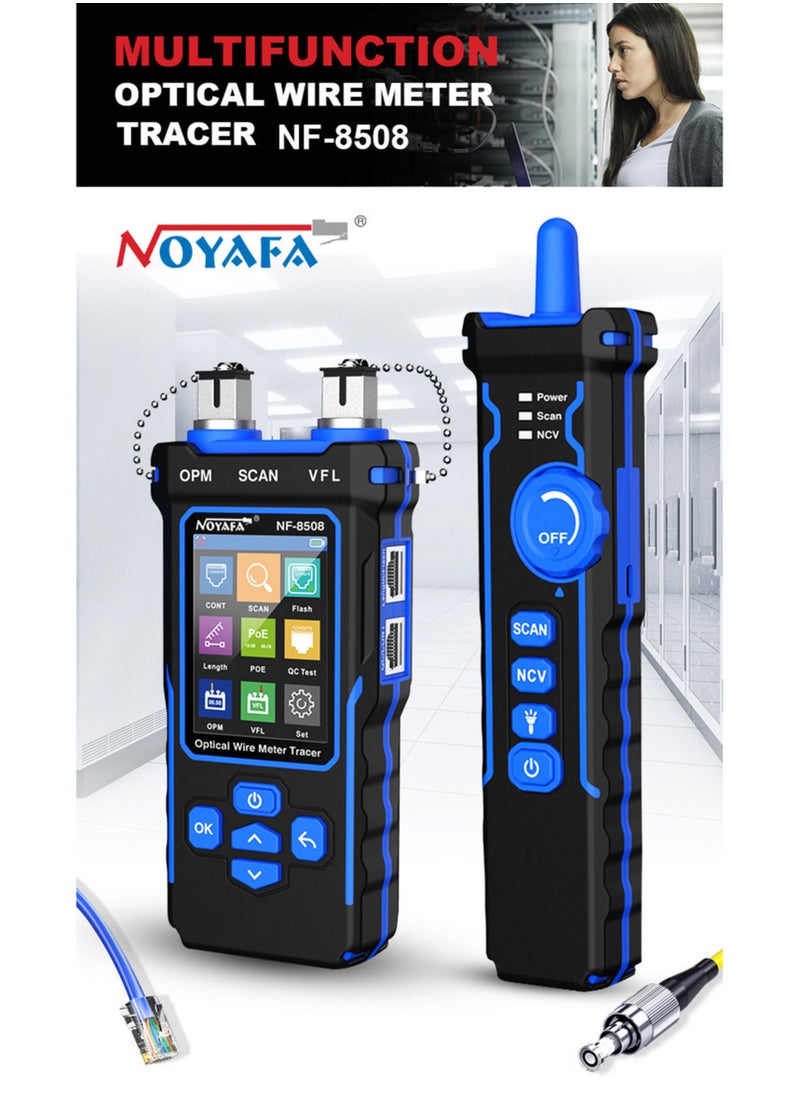

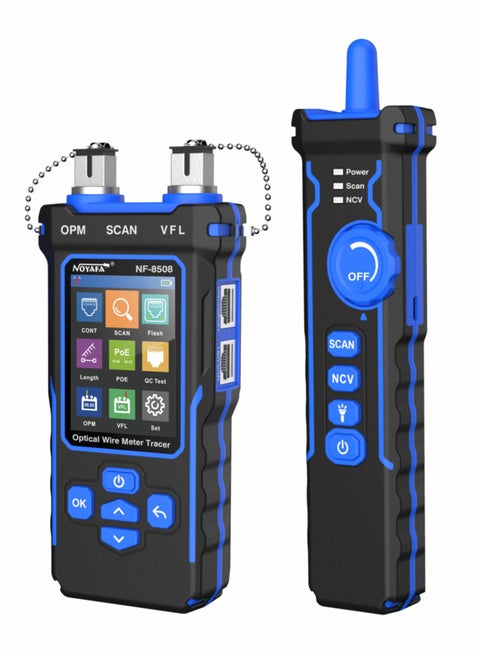

جهاز تتبع عداد الأسلاك البصري LCD جهاز اختبار كابل الشبكة الرقمية القابلة لإعادة الشحن، مكتشف خط الشبكة متعدد الوظائف، جهاز تتبع الأسلاك، مدقق PoE مع وظيفة OPM/VFL/CONT/SCAN/إضاءة

الميزات الأساسية

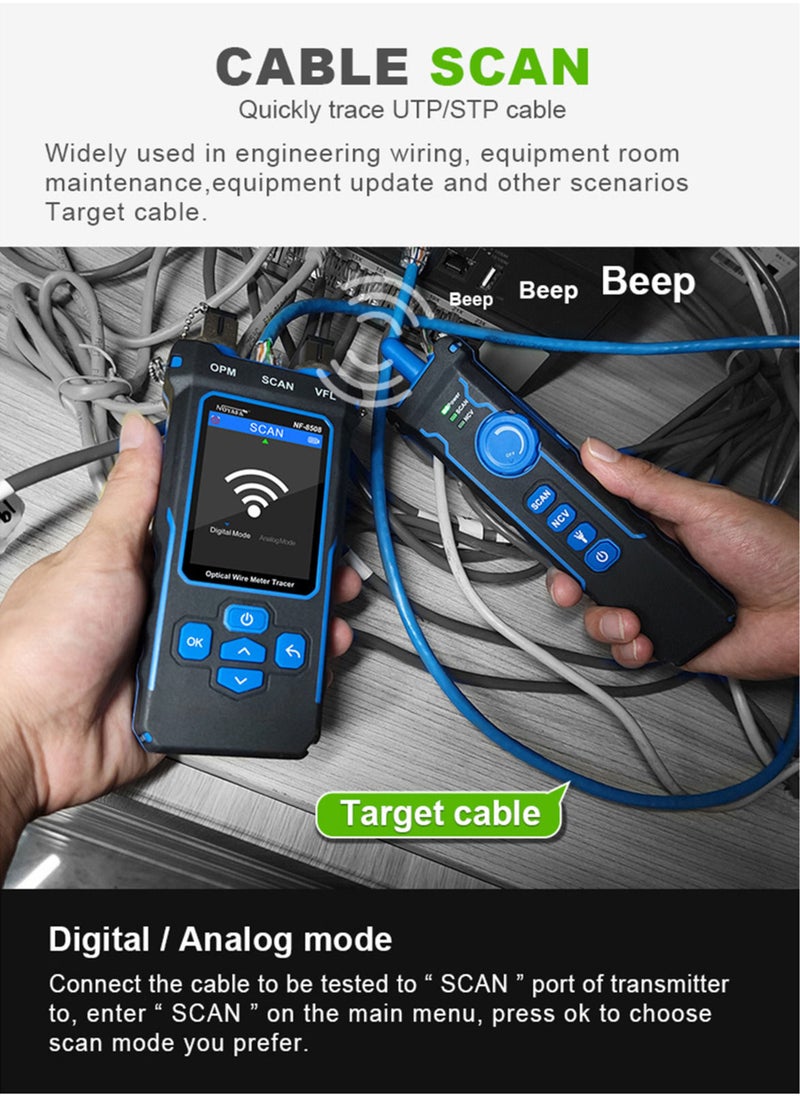

• Transmitter Testing Function: including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal head, OPM(optical power meter) and VFL(visual fault location) function.
• POE Test: automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and nonstandard device.

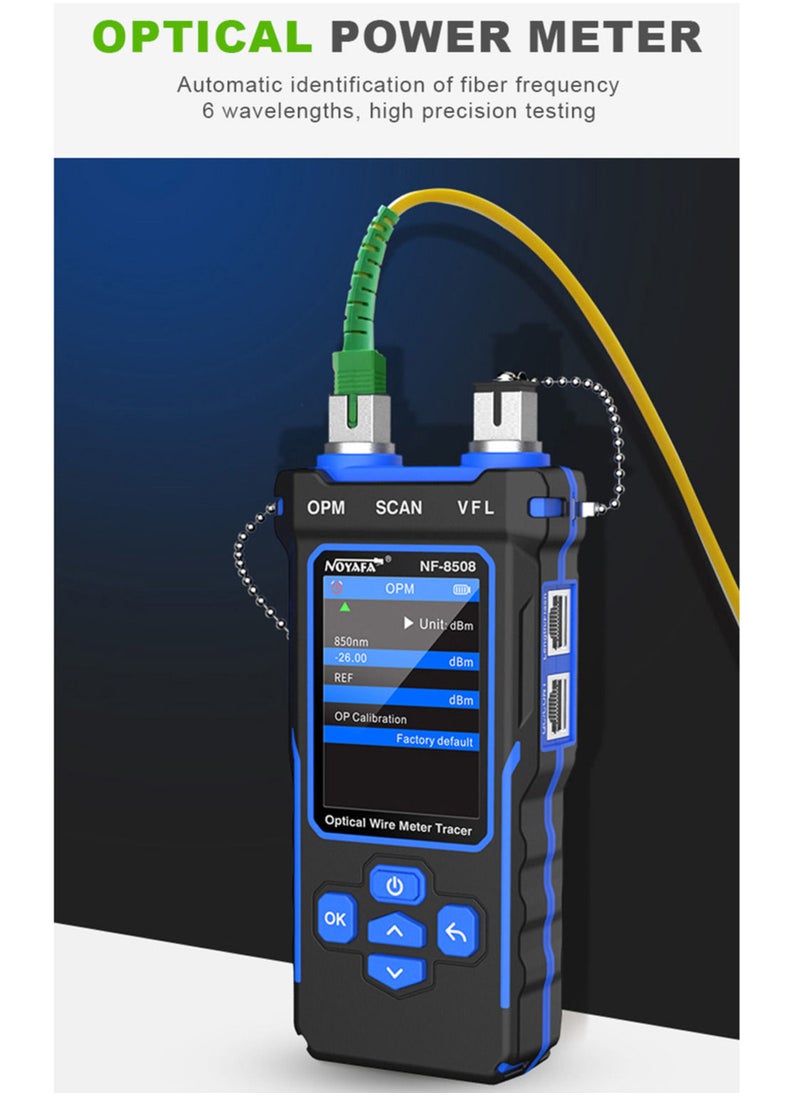

• Optical Power Meter: 850/1300/1310/1490/1550/1625nm wavelength switching; unit switching at dBm, dB, or mw, uw, nw; and REF switch.
• Visual Fault Location Function: detect and locate fiber breaks, as well as problems such as poor connections, fiber bends or cracks.
• Receiver Function: sensitivity adjustment, 300m no-load shielded network cable/non-empty shielded network cable, NCV detection, lighting function, etc.
• Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.

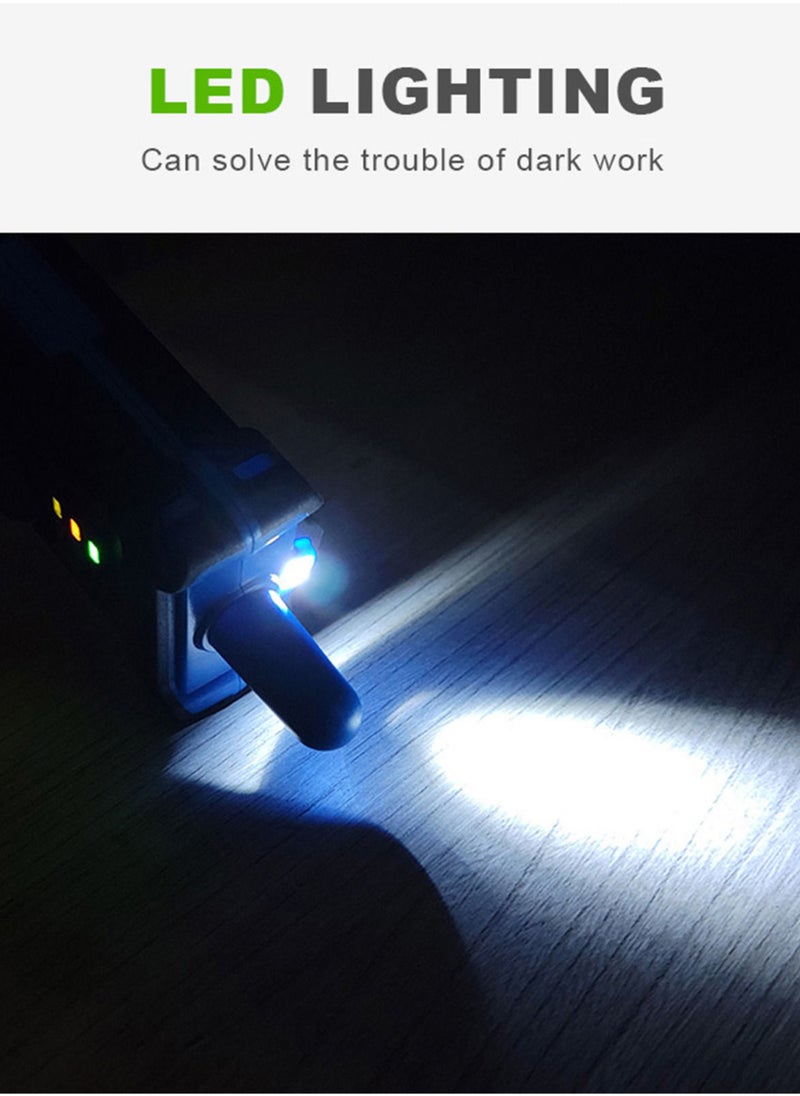

• Illuminate Function: the receiver designed with lamp for auxiliary lighting up the working areas during operation.
• Battery Operated: both the transmitter and the receiver are built-in with 1500mAh polymer battery, no need to change batteries, type-C charging, with charging indicator and low battery indicator.
• Other Settings: backlight brightness(level 1/2/3), backlight time(MAX/1min/30S/15S), auto-off time(15min/30min/1h/2h/off), red light flash under VFL function(fast flashing/slow flashing/ON).
• Wide Applications: suitable for the network line engineering and maintenance work of telecommunication, computer, other metal conductor, etc.
