نظرة عامة على المنتج

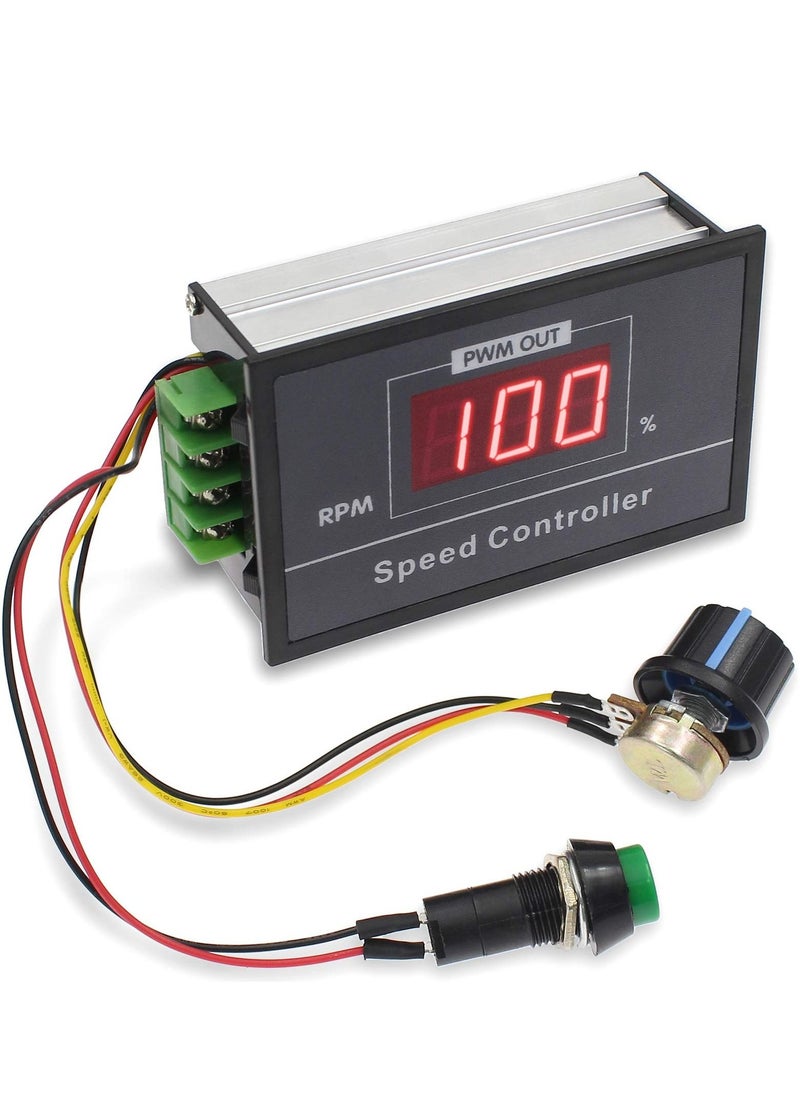

PWM DC motor governor DC6-60V 6V 9V 12V 18V 24V 36V 48V 30A,
PWM DC motor step-less speed regulation start-stop switch with digital
display


Specification:

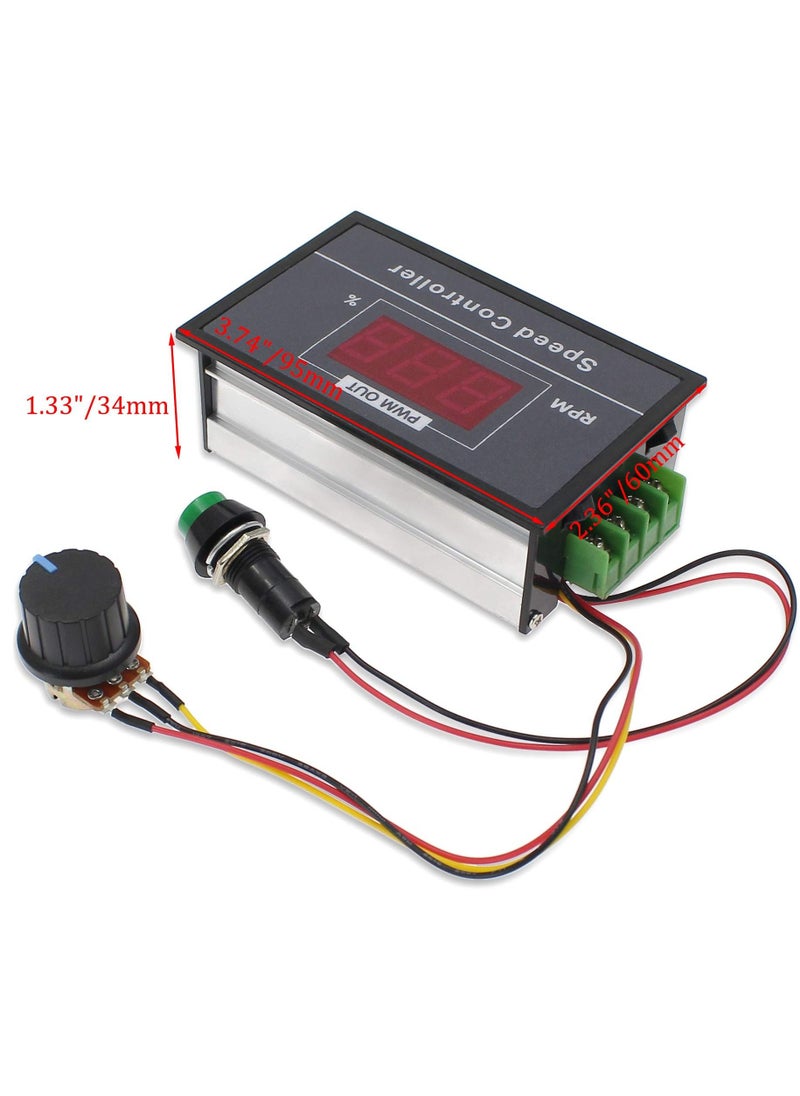

Dimensions: 3.74" x 2.36" x 1.33"/95 x 60 x 34mm (L*W*H)
Output Voltage: Linear Load
Input voltage range: DC 6V-60V
Output current: 0A-30A
Continuous current: 20A
Speed range: 0% to 100%
PWM frequency: 15KHz

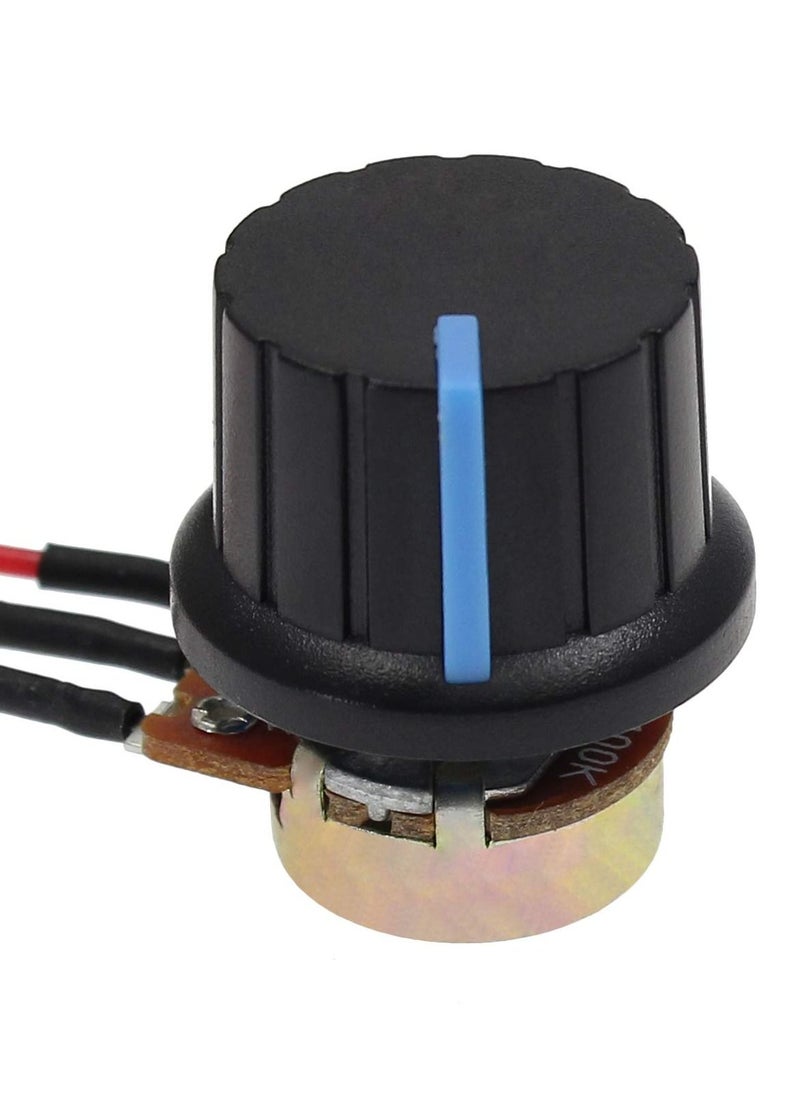

Adjustment method: potentiometer
Regulation Type: Regulation Current
Connection Type: Screw Terminals
Premium Material: Premium Circuit Board


Package contains

1 x PWM DC Motor Speed Controller Switch with Digital Display


Notice:

1. The digital display is not the percentage of the actual speed of the motor,
but the percentage of the actual speed to the maximum speed

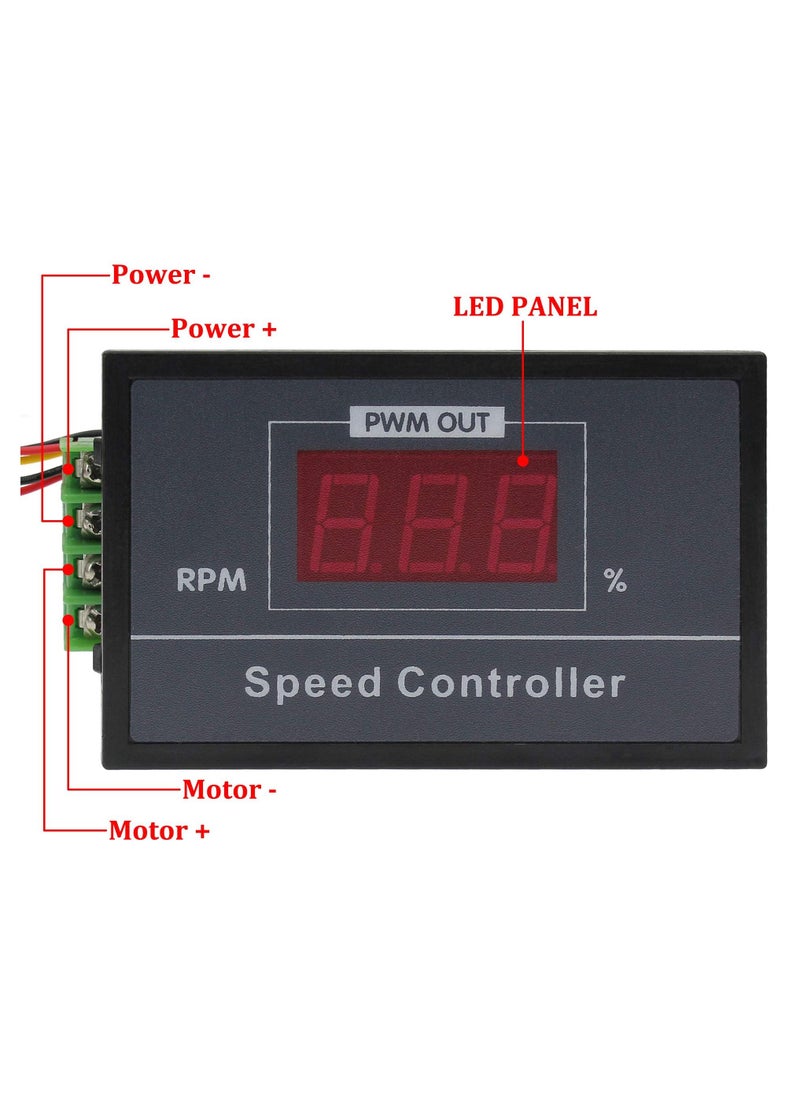

2. The input voltage must be divided into positive and negative poles

3. The input voltage must be equal to the rated voltage of the motor in the
range of 6-60V

الميزات الأساسية

  • 【Package Contents】1 PWM DC Motor Speed Controller Switch with Digital Display.
  • 【Dimensions】The length * width * height of the product is 96mm * 61mm * 34mm, and the product weight is 120 grams.
  • 【Input Power Supply Voltage】DC 6V-60V; Output current: 0-30A; Continuous current: 20A; Speed regulation: 0-100%; PWM frequency: 15KHZ

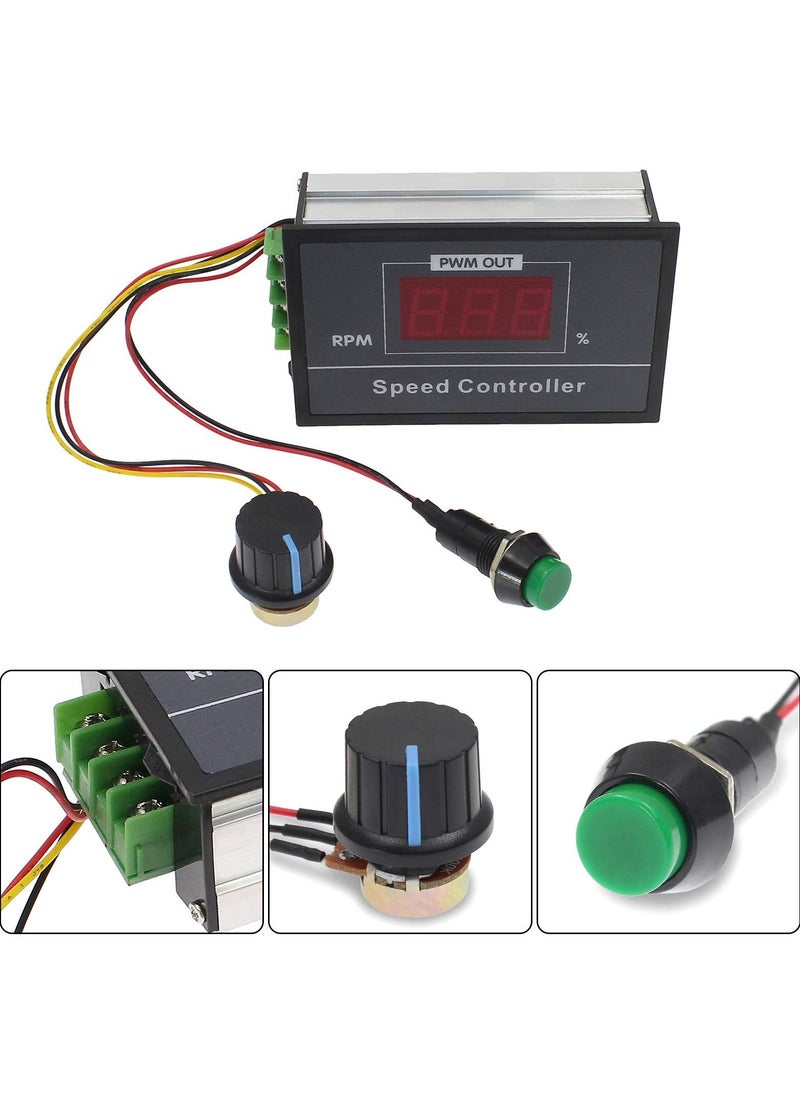

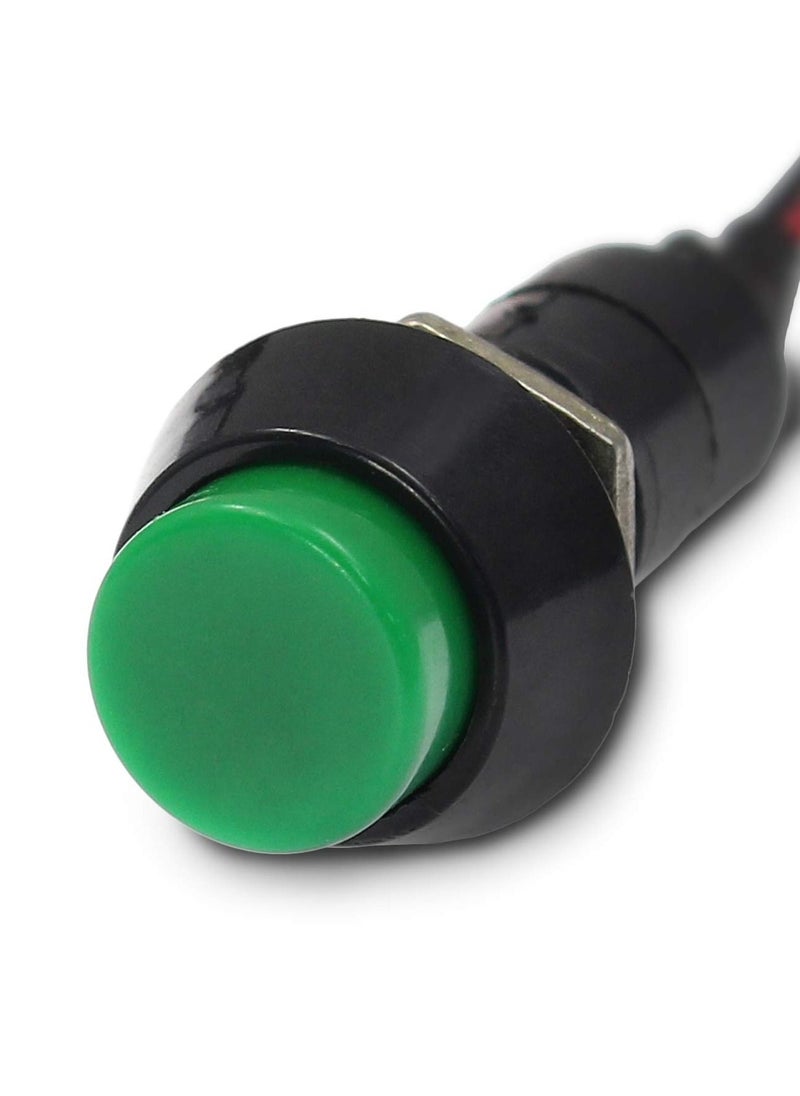

  • 【Easy to Use】The motor speed controller uses screw terminals, which can be wired very quickly. With an instant start-stop switch and speed potentiometer, easy to use
  • 【Note】1. The digital display is not the percentage of the actual speed of the motor, but the percentage of the actual speed and the maximum speed; 2. The input voltage must be divided into positive and negative poles; 3. 220V household electricity ca
