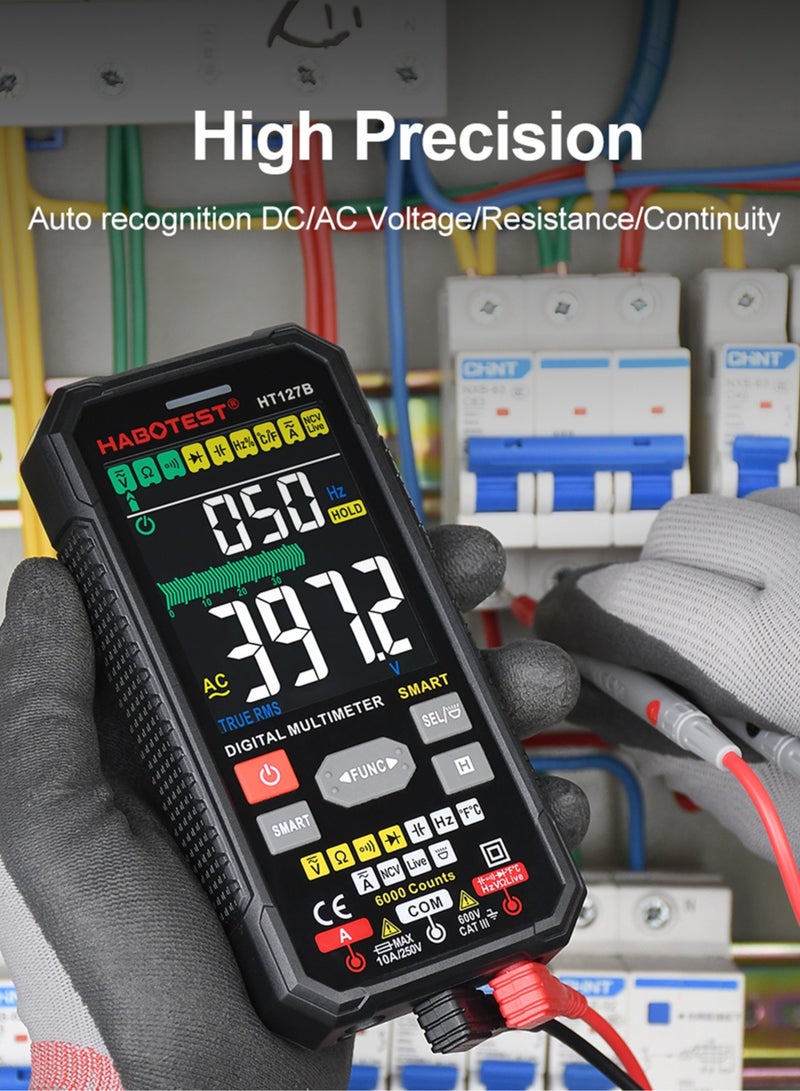

Mulifunctional Digital Tester: it can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty, temperature, diode and continuity, also has live wire detecting, NCV non-contact AC voltage detection.
TN/VA(optional) LCD Display Technology: 3.1-inch LCD screen is clear and large enough to display all the data, analog bar, and indicate icons. (the TN screen has backlight ON/OFF function)
Humanity Design: protected with silicone shell, the mini handheld multimeter is as small as a smart phone, which is convenient for one-handed operation, with data hold function to freeze the readings while taking measurement.
Safety Operation: with anti-misinput indicator, intelligent anti-burn protection, also meet with EN61010-1 and CAT.III 600V safety grade to ensure the safe use.
Auxiliary Illumination Flashlight: flashlight design lets you test efficiently and comfortably at the dim working environment.
نظرة عامةSpecifications:
Model: HT127B, VA Display (Optional)
DC Voltage: 60mV/6V/60V/600V
AC Voltage: 6V/60V/600V
DC Current: 600mA/10A/6A
AC Current: 600mA/10A/6A
Resistance: 600Ω/6kΩ//60kΩ/600kΩ/6MΩ/60MΩ
Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10Hz
Duty: 1~99% Temperature: -40~1000℃ / -40~1832℉
Diode: 0~3V Continuity: 50Ω
Material: ABS
Safety Level: CAT.III 600V
Count: 6000 counts
Range: Auto range
Analog Bar: Yes
Gear Display: Yes
True RMS: Yes
Data Hold: Yes
Backlight: Yes
The Probe Insert Error Tips: Yes
Input Jack Indication: Yes
Fuse Burnt Indication: Yes
Low Battery Indication: Yes
Auto-off: 15 minutes
Power Supply: 4 * 1.5V AAA battery (NOT included)
Item Size: 145 * 71.5 * 26mm / 5.71 * 2.81 * 1.02in Item Weight: 186g / 6.58oz
Packing List: 1 * Multimeter 1 * Pair of Test Lead 1 * K-type Thermocouple 1 * Manual (English)
