Highlights- * Waterproof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
- Specially designed for RC car with excellent start-up, acceleration, and linearity features.
- The strong resistant current capability, excellent heat dissipation.
- EASILY PROGRAMMED: Easily programmed and compatible with pocket-sized program card. Compatible with a sensorless brushless motor.
- MULTIPLE-PROTECTION: Low voltage cut-off protection for lithium or nickel battery, over-heat protection, throttle signal loss protection, motor blocked protection.
OverviewFeatures:
* Waterproof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
* Specially designed for 1/8 RC car with excellent start-up, acceleration, and linearity features.
* The strong resistant current capability, excellent heat dissipation.
* EASILY PROGRAMMED: Easily programmed and compatible with pocket-sized program card. Compatible with a sensorless brushless motor.
* MULTIPLE-PROTECTION: Low voltage cut-off protection for lithium or nickel battery, over-heat protection, throttle signal loss protection, motor blocked protection.
Specification:

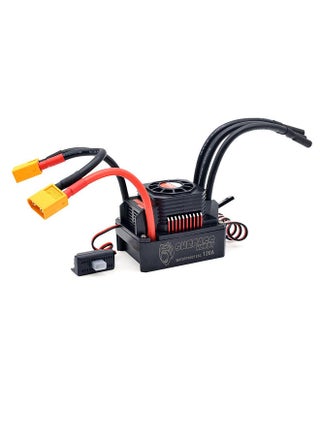

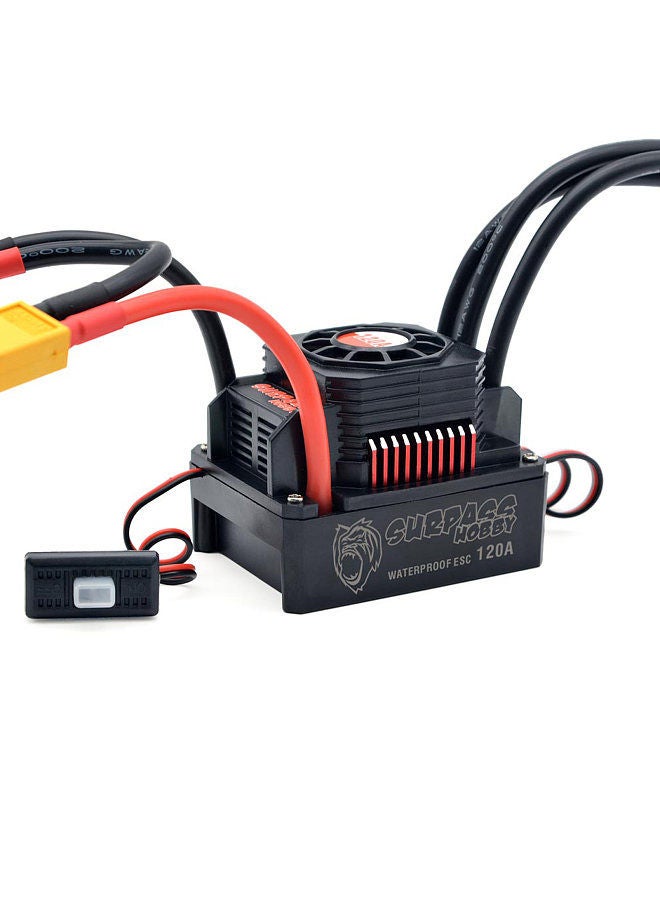

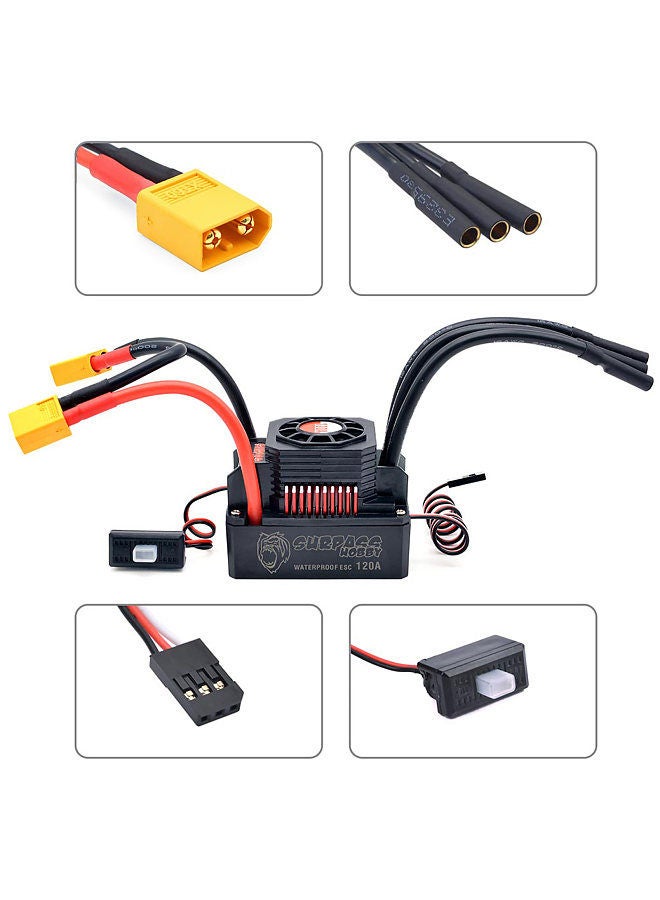

Item name: 120A Brushless ESC
Cont.Cunrrent/Burst Current: 120A/600A
Resistance: 0.00035ohm
Battery: 3-6 cell lipo; 9-18 cell NiMH
BEC output: 6.1V/3A (switch mode)
Size: About 60*45*45mm
Weight: About 136g
Package information:
Pacakage size: 25-80A: 11*6.8*4.2cm; 120-150A: 14*8.5*5cm
Pacakage Weight: 25A:67g; 35A: 72g; 45A: 125g; 60A: 126g; 80A: 130g; 120A: 189g; 150A: 200g;
