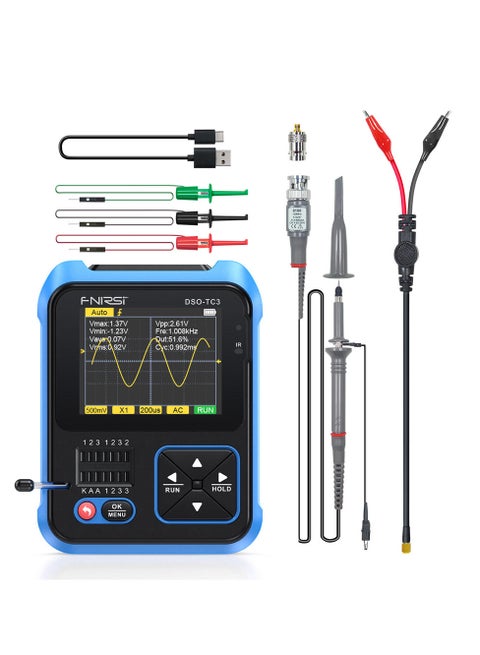

FNIRSI - 3in1 Digital Oscilloscope Transistor Tester Function Signal Generator Meter Handheld Oscilloscope 2.4inch TFT Display 10MS/s Sample Rate 500KHz Bandwidth Oscillometer - Image 1

FNIRSI

3in1 Digital Oscilloscope Transistor Tester Function Signal Generator Meter Handheld Oscilloscope 2.4inch TFT Display 10MS/s Sample Rate 500KHz Bandwidth Oscillometer

4.6

3 Ratings

209.30

 354.25

Inclusive of VAT

Saving:

 144.95

40% Off

Deal

Free Delivery

Only 4 left in stock

Free Delivery

Get it by 27 April

Order in 4 h 49 m

Delivery by noon

High Rated Seller

Low Returns

Cash on Delivery

Explore other bestsellers in
Scanners & Testers

BANK OFFERS

SELLER

Item as Described

Partner Since

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

3 In 1 Function: This product ingeniously integrates digital oscilloscope, transistor tester and signal generator functions into one machine.
Digital Oscilloscope Function: With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular).
Equipped with an efficient button AUTO, the measured waveform can be displayed without cumbersome adjustments.
Signal Generator Function: 6 kinds of signal waveforms: sinewave, squarewave, pulsewave, trianglewave, rampwave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty ratio.
Tool Box Function: Automatically analyze specific Protocol infrared code. Other function modes: including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V diode measurement, temperature and humidity sensors measurement, etc
Compact Size: Lightweight and portable, also can be used as a portable tool for on-site debugging.
Reliable Quality: Adopts ABS antidrop housing, antislip concave design, high elasticity keys, simple interface, easy operation.
2.4inch Digital TFT Display: TFT color screen, high resolution display with LED backlight, with bright colors and high contrast, you can see the data clearly in bright light.
High Accuracy: Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error.
Rich and Powerful Features: One button for automatic adjustment, support for free switch, support intelligent fire preventions.

OverviewSpecifications: Name: 3in1 Digital Oscilloscope Material: ABS Type: high configuration (optional) Display: 2.4 inches TFT color screen Battery: Built-in 1500mah rechargeable lithium battery (included) Charging interface: USB Type-C, +5V Digital Oscilloscope: 10MSa/s Real-time sample rate: 500Khz Analog Bandwidth: 1ΜΩ Input resistance: Alternating Current/Direct Current Coupling method: 400V Test voltage ranges: 10mV-10V Vertical Sensitivity (x1): 1us-10s Horizontal time base ranges: Trigger mode: Auto / Normal / Single Trigger type: Rising edges / Falling edges Waveform Freeze: Yes Automatic measurement: Yes Transistor Tester: Capacitor: 25pF~100mF Resistor: 0.01Ω ~ 50ΜΩ Inductor: 10uH~1000uH Battery: 0.1~4.5V Input voltage: 0~40V DS18B20: 0-85℃ DHT1: 0-60°C/5-95% Signal Generator: Sinewave: 1-10KHz/0-3.3V/50% Squarewave: 1-100KHz/3.3V/50% Pulsewave: 1-100KHz/3.3V/0-100% Trianglewave: 1-10KHz/0-3.3V/50% Ramp: 1-10KHz/0-3.3V/0-100% Direct current: 0-3.3V Packing List (High Configuration): 1 * 3in1 Digital Oscilloscope 1 * Adaptor 1 * Probe 1 * High Pressure Probe 3 * Test Hook 1 * Type-C Cable 1 * Manual

Specifications

Colour Name	Multicolour
Model Number	DSO-TC3
Model Name	DSO-TC3

3in1 Digital Oscilloscope Transistor Tester Function Signal Generator Meter Handheld Oscilloscope 2.4inch TFT Display 10MS/s Sample Rate 500KHz Bandwidth Oscillometer
