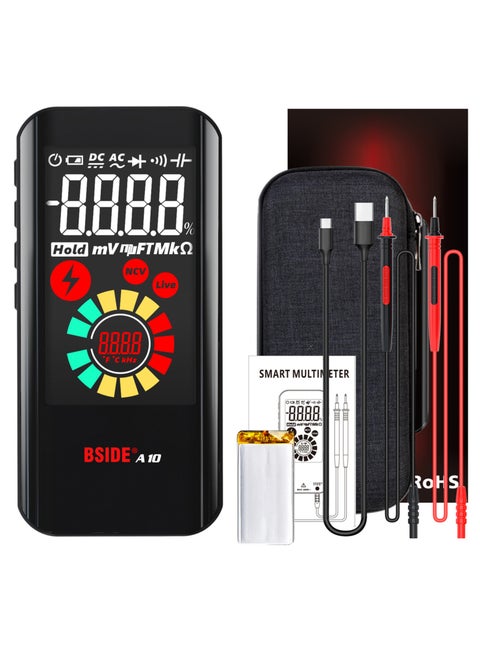

BSIDE A10 Mini Smart Digital Multimeter NCV Multifunctional Tester Voltmeter AC/DC Voltage Resistance Capacitance Frequency Diode Measuring

OverviewFeatures: Basic Measuring Functions: including DC voltage, AC voltage, frequency, resistance, continuity, capacitance, diode, non-contact voltage induction, live wire checking. Auto Measurement Mode: automatic identification of AC voltage, DC voltage, resistance. Wide Measurement Range: 0~600V AC/DC voltage, 0.1Ω~60MΩ resistance, 1nF~60mF capacitance, 10Hz~10MHz frequency, 0.1~99.9% duty ratio, 0~50℃ temperature, and measure diodes within 3V. Easy-to-read Color LCD Screen: greatly enhance the reading experience. 3 Results Display: shows voltage, frequency and analog bar on the large LCD simultaneously. Rechargeable Li-ion Battery: built-in 800mAh li-ion battery, conveniently recharged by the included charging cable via computer or the USB socket. Safety Operation: full measuring range overload protection, double insulation protection, meet with CAT II safe grade. Compact Pocket Size: convenient for one-handed operation, portable to carry around, with a zipper pouch to store and protect the meter. Specifications: DC Voltage: 0~600V(DC mode), 1~600V(auto mode) AC Voltage: 0~600V(AC mode), 1~600V(auto mode) Resistance: 0.1Ω~10MΩ, 10~60MΩ Capacitance: 1nF~1mF, 1mF~60mF Frequency: 10Hz~10MHz(ACV 3~600V) Duty Ratio: 0.1~99.9% Material: ABS Range: Automatic range Display: Color LCD Maximum Display Value: 9999 digits Polarity Indication: Self-indicating, "-"means Negative polarity Over-range Display: "OL" or "-OL" Sampling Time: The meter figures show about 0.4 seconds Automatic Power-off Time: 5 minutes Battery Low Voltage Indication: LCD display a battery symbol Operational Temperature and Humidity: 0~40℃, 0~80%RH Storage Temperature and Humidity: -10~60℃, 0~70%RH Operating Altitude: ≤2000m Battery: Li-ion battery inside
