FNIRSI LCR-ST1 10KHz LCR Meter Tweezer, Mini Smart SMD Tester, ESR Meter, Maximum accuracy 0.5%, Capacitance Inductance Continuity Diode Tester, Auto Component Recognition Electronic Component Analyze

OverviewProduct Description:

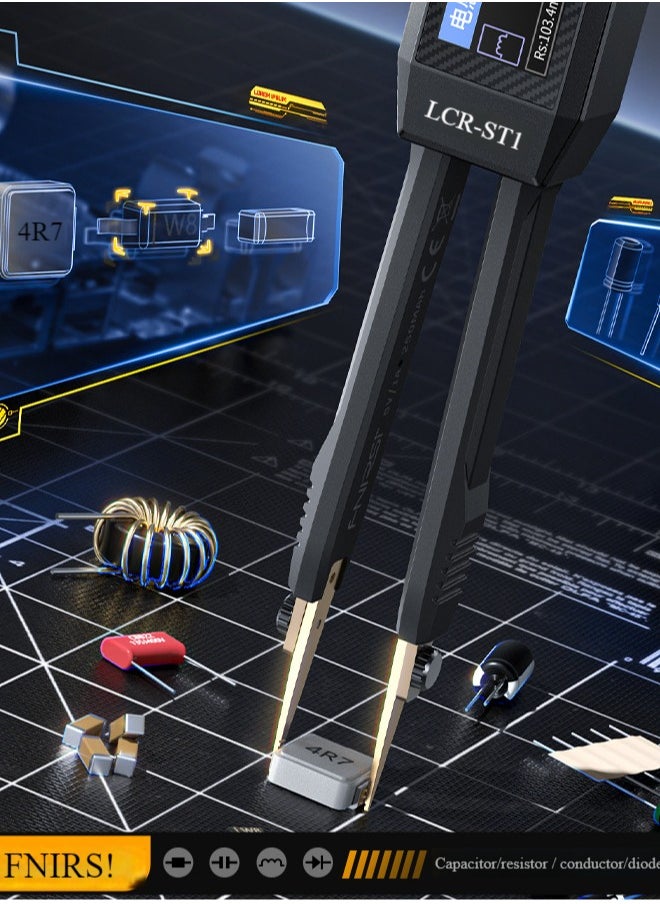

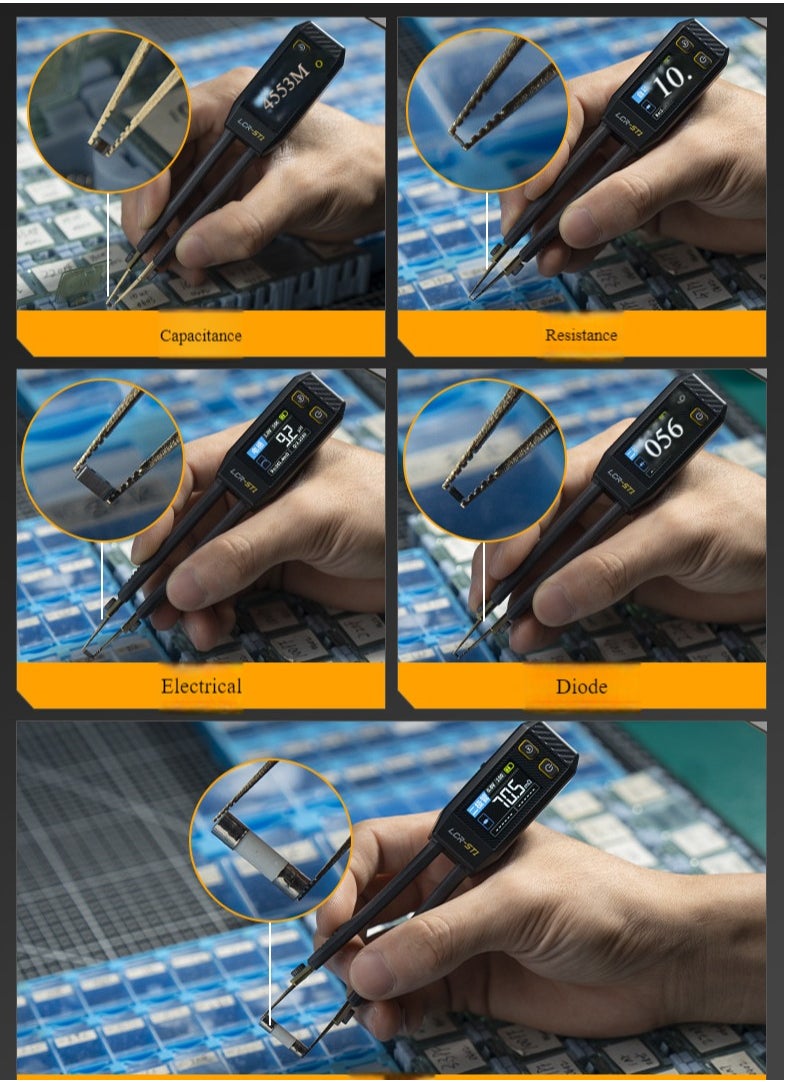

【LCR Tweezer Tester】The FNIRSI LCR-ST1 is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes
【Measurement Range】3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H
【Multiple functions】D, Z, Q, R, ESR value reading. Auto recognition of elecronic components, primary and secondary parameters display. 1.14'' HD color display, is easy to operation

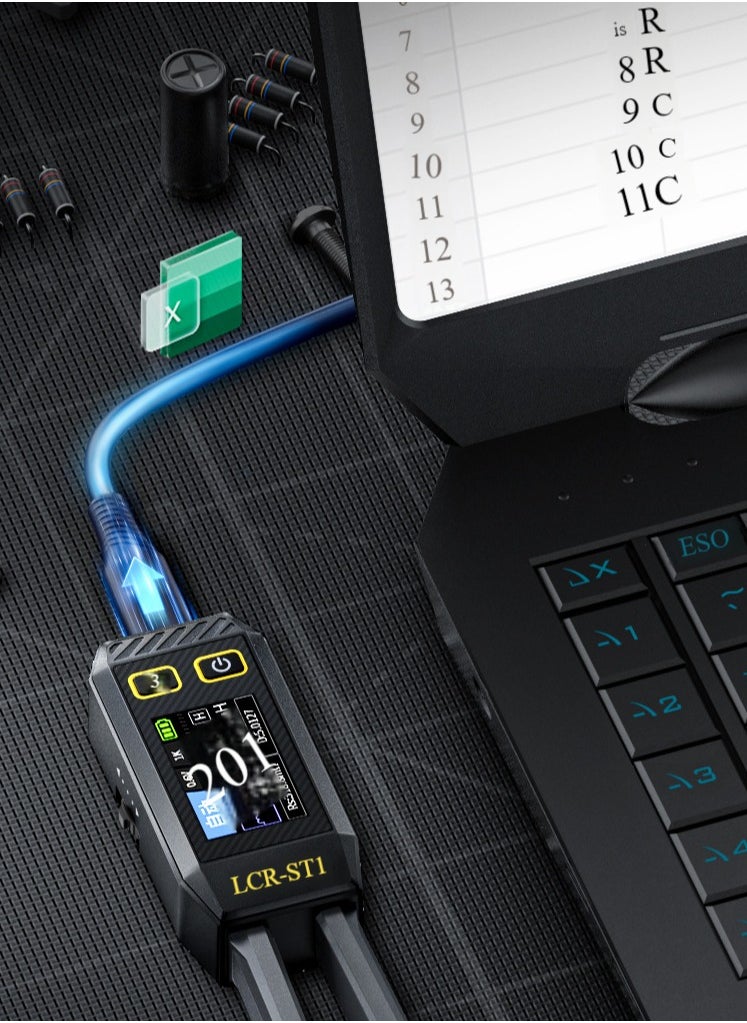

【Data Storage and Export】The LCR tester can automatically save the test records. And you could connect the tester to your PC and transfer all the data to PC via EXCEL

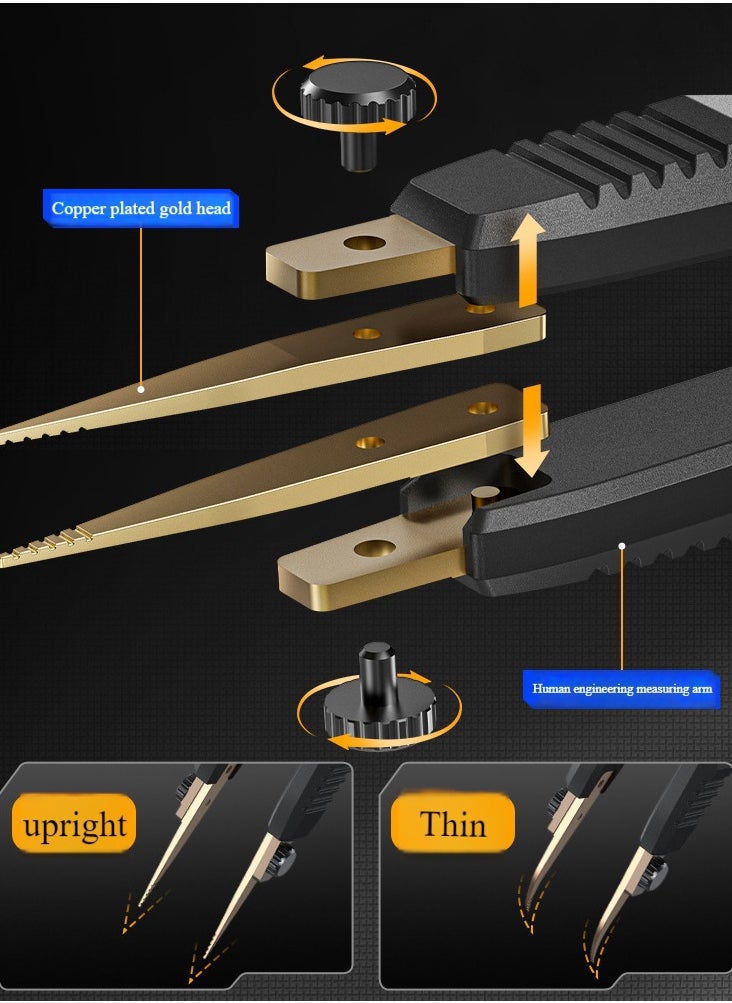

【2 Types of Tweezer Heads】With pointed head and hook head, it is convenient to test different types of products. It is equipped with a storage bag and can be charged via a data cable

1.Product Model: LCR-ST1
2.Capacitance range: 1pF-22mF
3.Inductance range: 1μh-10H
4.Resistance range: 10mΩ-10MΩ
5.Diode: On voltage 0.7V

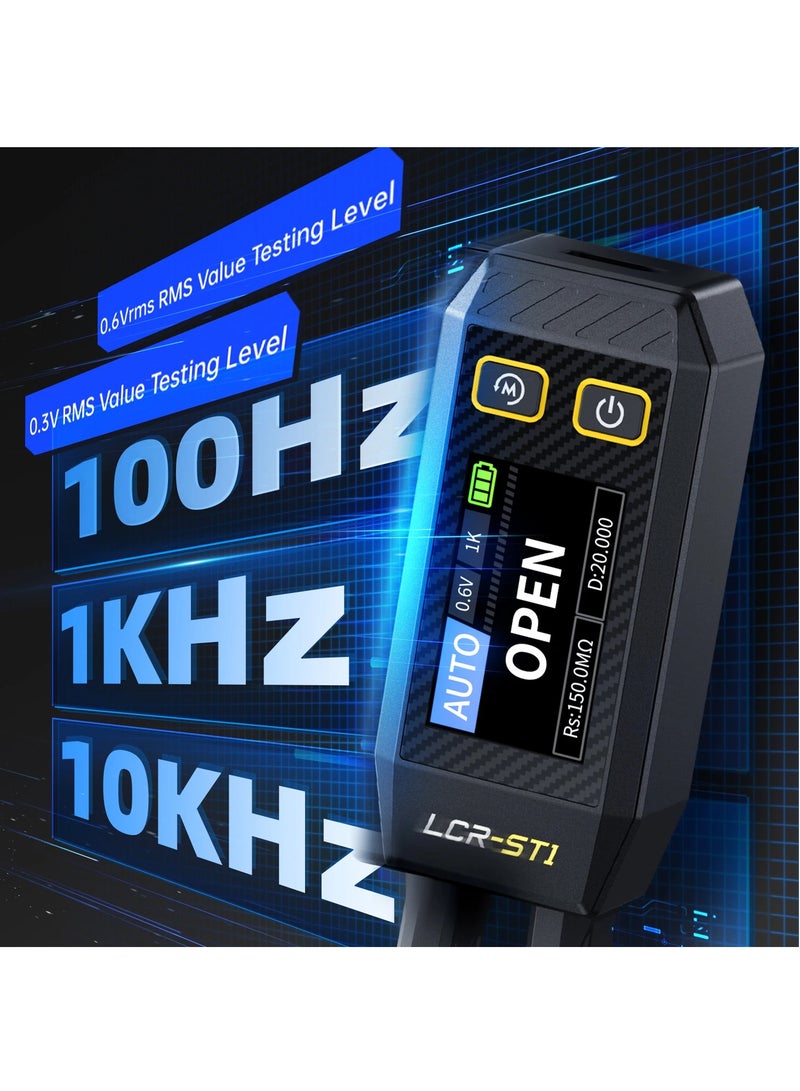

6.Frequency test: 100Hz, 1kHz, 10KHz
7.Level test: 0.3V, 0.6V RMS
8.Parameter display: ESR, D value, Q value, Z value, X value

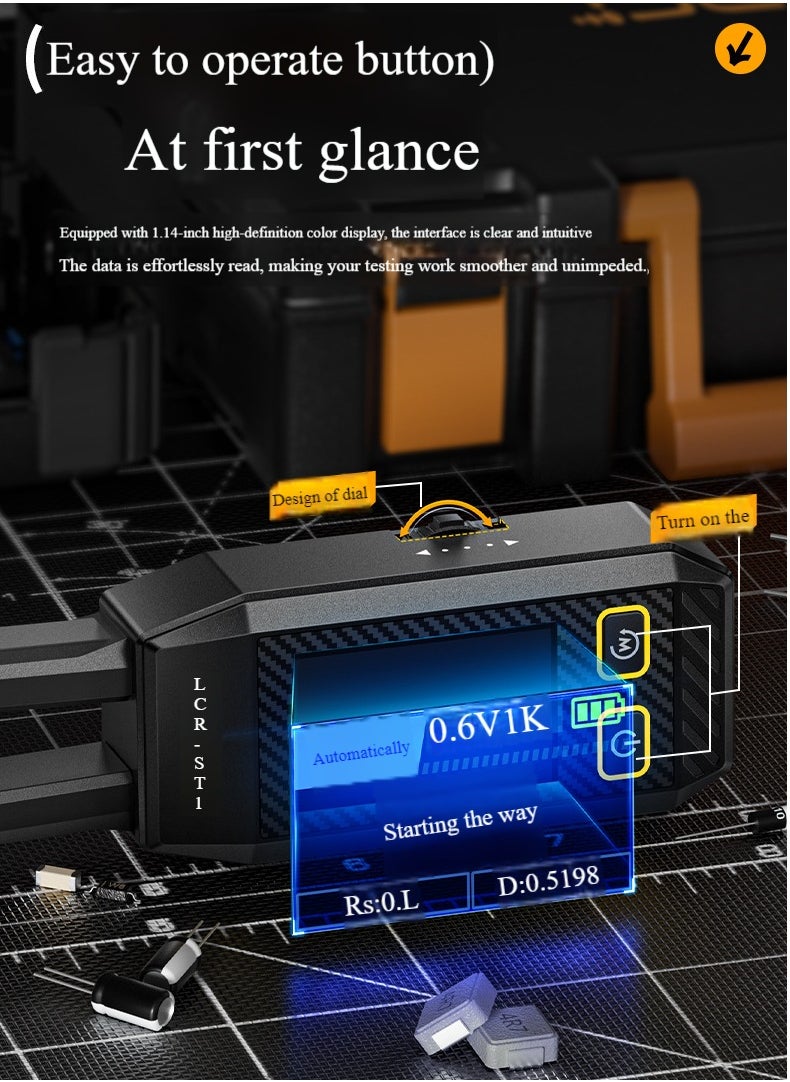

9.Display: 1.14'' color screen
10.Charging Interface: Type-C, 5V/A
11.Power Supply: 250mAh lithium battery
12.Auto recognition measurement: Support
13.Replaceable tweezer head: Support
14.Auto shutdown: Support
15.Data hold: Support
16.History record: Connect to PC to view and export
17.Size: 28×19×150mm
18.Weight: 41g

packing list
1. LCR-ST1 smart tweezers
2. Pointed head (one pair) + Hook head (one pair)
3. Storage bag
4. Magnetic patch
5. USB data cable
5. User manual
