Gigabit PoE Splitter 12V 2A Output with IEEE 802.3af/at Standard Compliant 10,100,1000Mbps Power over Ethernet Splitter Adapter for Security Camera CCTV Surveillance 5.5x2.1mm DC Plug Cable (PS5712TG)

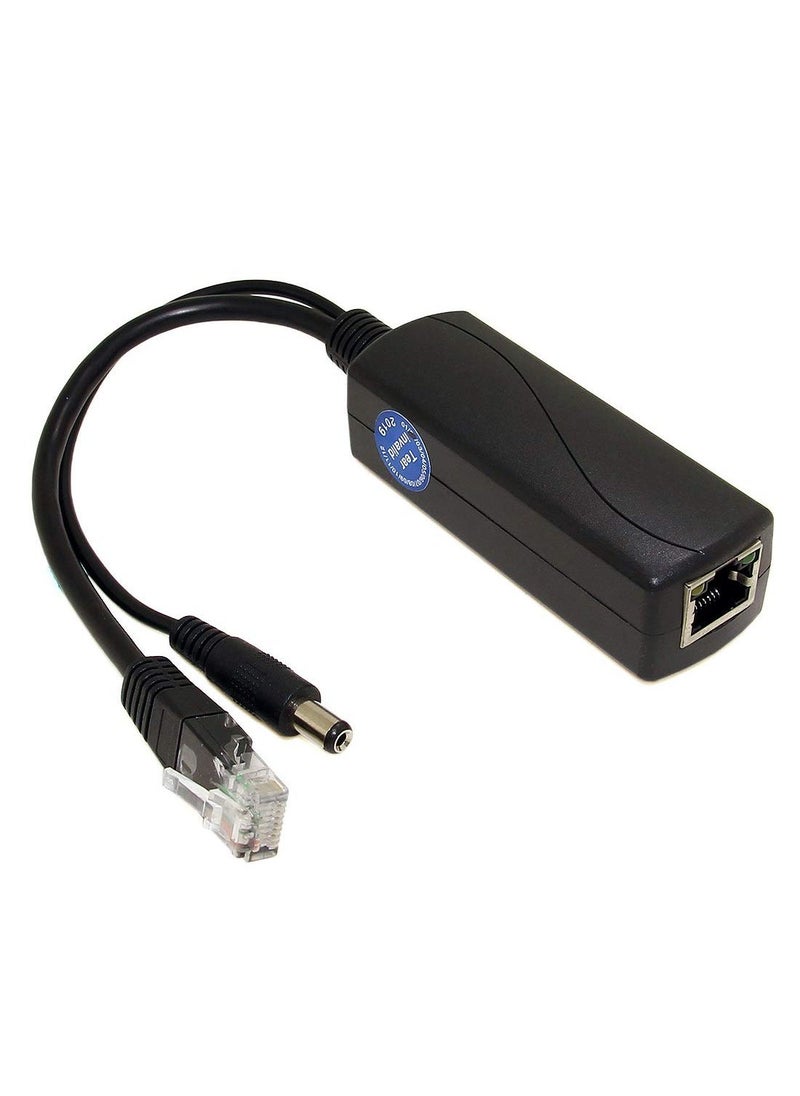

SYOSI Gigabit PoE Splitter 12V 2A Output

It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.

Fast Q&A to help customer better know our PoE splitter

Question: How to determine Poe splitter is working?

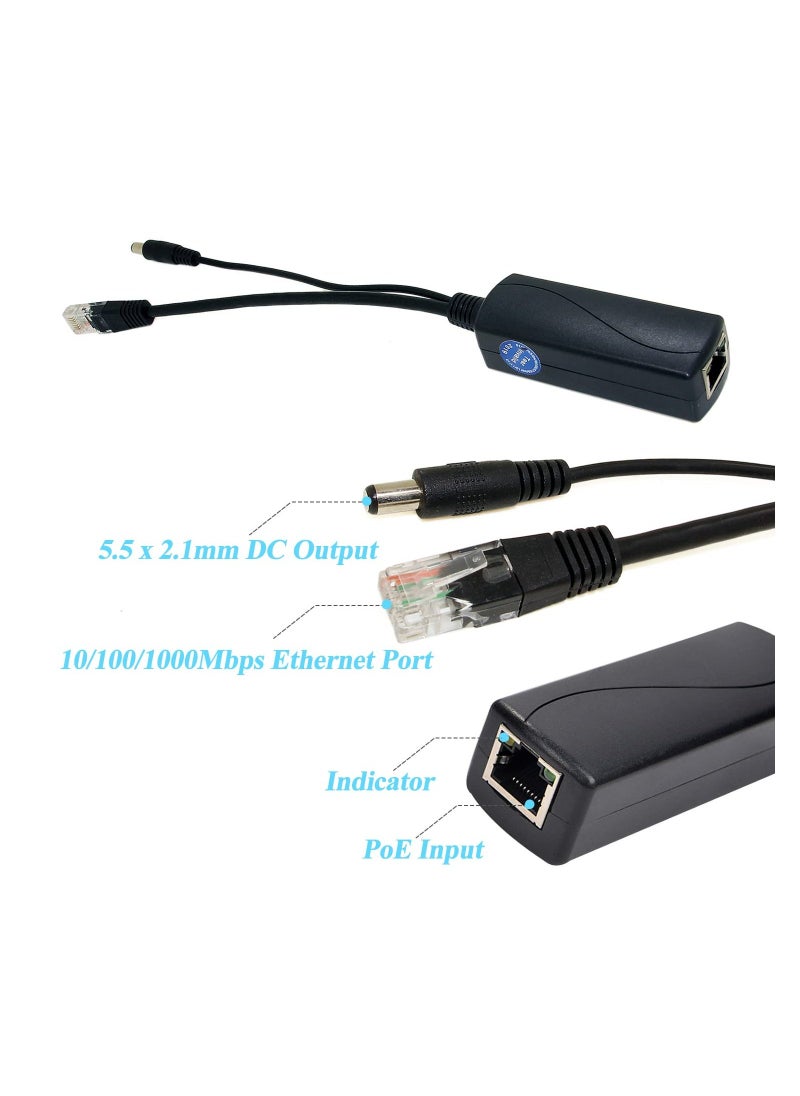

Answer: If Poe splitter is functioning,green indicator will always on, means network cable is connected to the PoE splitter. Yellow indicator will flash, means data is transmitting.

Question: Why the voltage of the PoE splitter is unstable when I test it?

Answer: If Poe splitter is not connect to terminal device,means there is no load. It will trigger light load protection,and voltage will be unstable. The voltage will stable if gives 10mA, which is 0.01A load.

Question: How do I know if it can work with my Device?

Answer: Model PS5712G USB0502G and TYPEC0502G only support IEEE802.3af standard, which is 15.4W ouput.Model PS5712TG PS5712TG-25 USB0503G and TYPEC0503G support IEEE802.3af/at standard, which is 15.4W/30W output.You can choose the right version to power your device.

Answer: Model PS5712G USB0502G and TYPEC0502G only support IEEE802.3af standard, which is 15.4W ouput.Model PS5712TG PS5712TG-25 USB0503G and TYPEC0503G support IEEE802.3af/at standard, which is 15.4W/30W. You can choose the right version to power your device.
