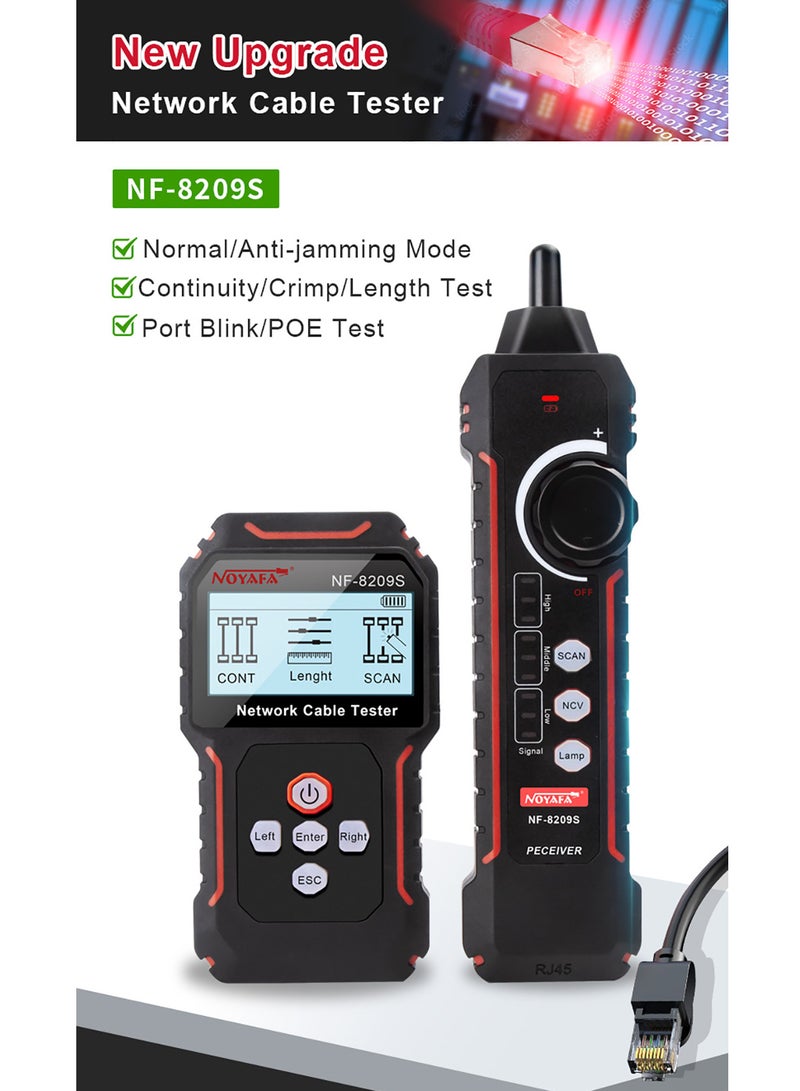

NF-8209S POE Wire Checker LCD Display Measure Length LAN Cable Cat5 Cat6 LAN Test Network Tool Scan Cable Wiremap Tester

NF-8209S is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers. Specifications: Material: ABS Emitter Parameters & Functions: LCD Display: 128*64 dot-matrix with backlight Power Supply: 3.7v 1400mAh lithium battery Auto-off Time: 15min/30min/60min/OFF Voltage Protection: DC48V, 5mA Max. Working Current: <150mA Size: 125 * 70 * 32mm / 4.92 * 2.76 * 1.26in WIREMAP TEST: Cable Type: CAT5, CAT6, (STP & UTP) Test with Switch Directly: Yes Max. Range: 600m LENGTH TEST: Cable Type: CAT5, CAT6, (STP & UTP) Test Range: 2.5~500m Accuracy: ±1.6m Breakage Location: Yes SCAN TEST: Cable Type: CAT5, CAT6,(STP & UTP) Max. Signal Voltage: 5V+/-1.0V p-p(audio file) Frequency: 455KHz Dual mode to scan cable：AC filter & Non AC filter Max. Range: 600m (RJ45)/ 400m(RJ11) POE TEST: Test Range: DC5~60V standard / non-standard PoE switch Power supply core/Jumper method：End jumper/middle jumper/8-pin power supply/unknown PSE Type: Standard: IEEE 802.3af/at; Non standard Receiver Parameters: Sensitivity Adjustable: Yes NCV：AC 70V~1000V 50/60Hz Lamp: Yes Wiremap：Yes Battery Type: 3.7v 1400mAh lithium battery Low Battery Warning: 3.5v+/-0.1v Auto-off Time: 15min/30min/60min/OFF Standby current：<35mA Max. Working Current: <200mA Charging method：DC 5V 1A Type-C Operating temperature/humidity：32~122°F (0~50°C）/90% non-condensing Packing List: 1 * Emitter 1 * Receiver 1 * Earphone 1 * Charging line 3 * Cable adaptors 1 * Toolkit 1 * Manual(English)
