Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Robust Power Solution: 20 + 1 teamed power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

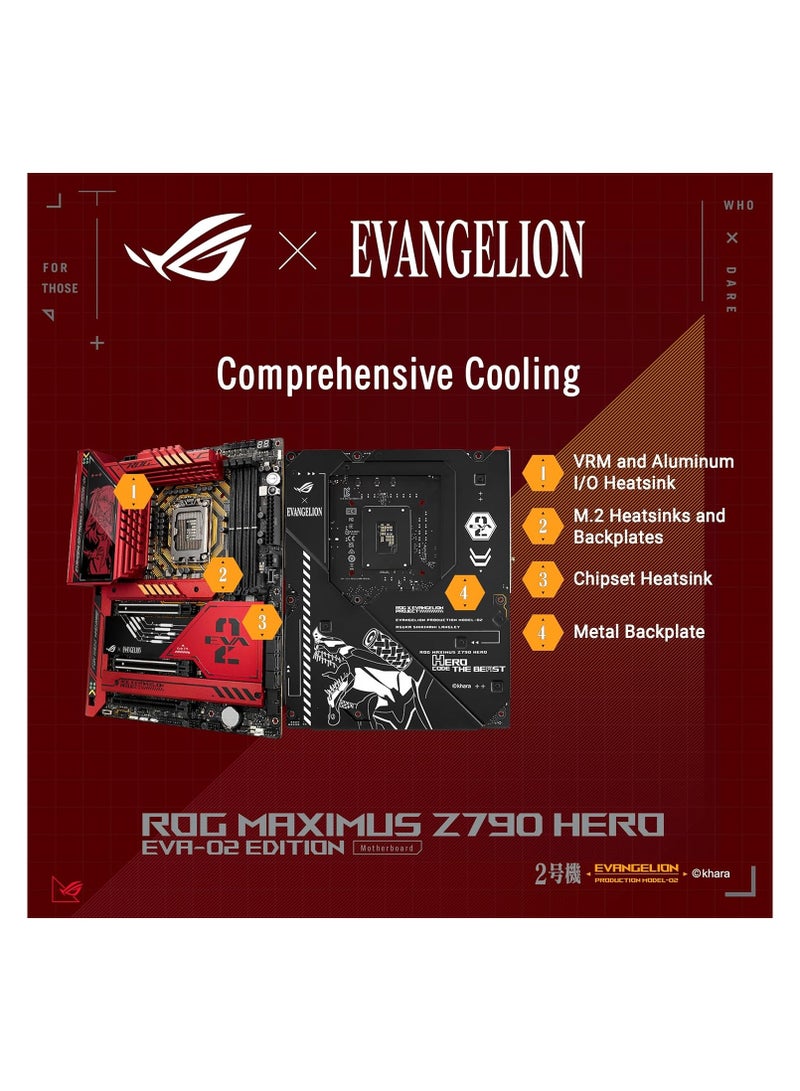

Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Next-Gen M.2 Support: PCIe 5.0 M.2 slot on the bundled ROG Hyper M.2 card, and four PCIe 4.0 M.2 slots all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
High-Performance Networking: On-board Intel WI-FI 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance

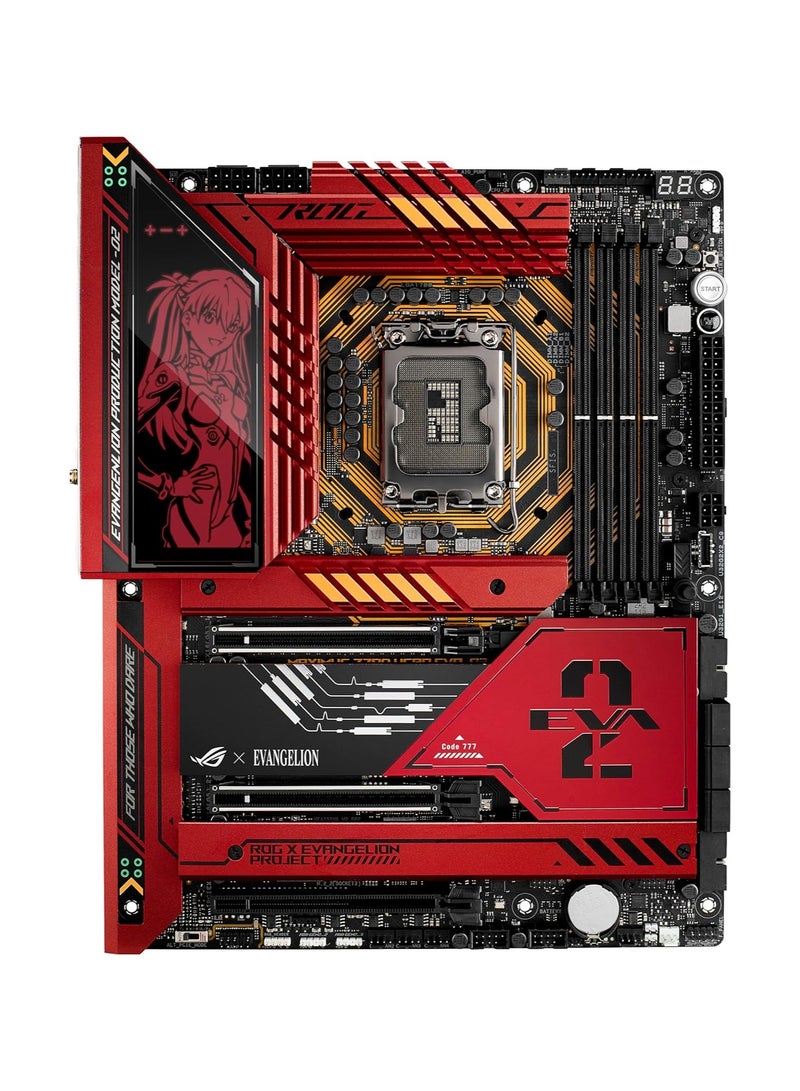

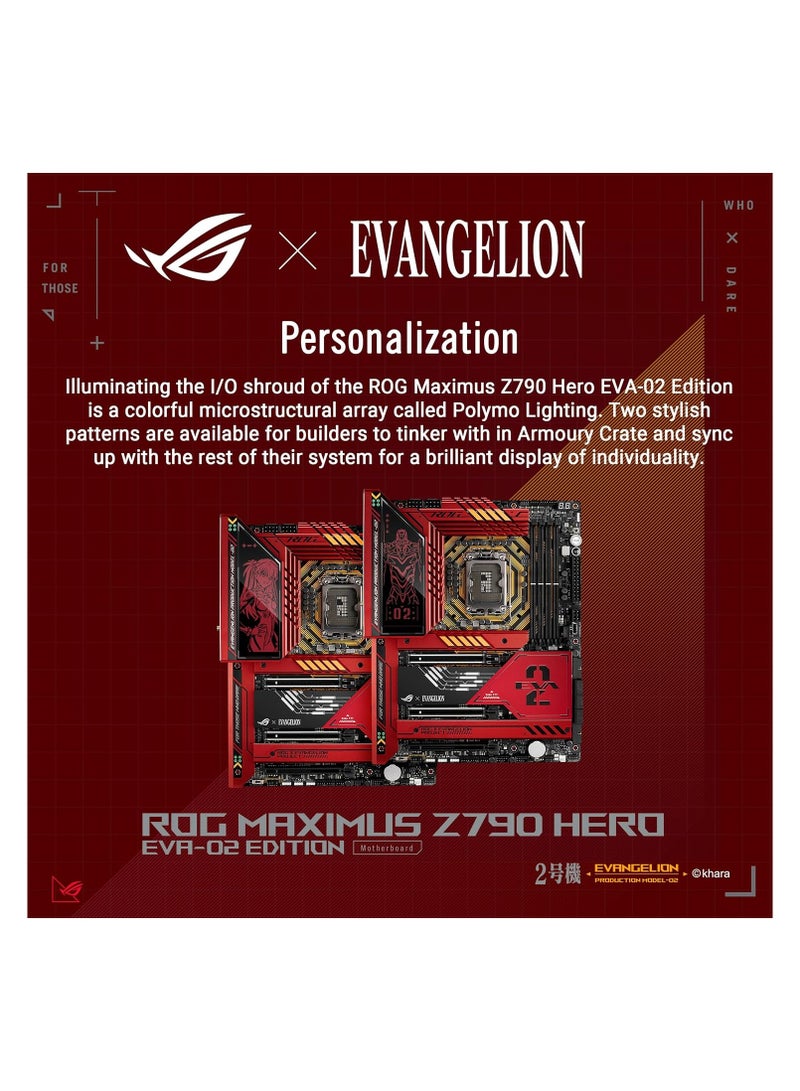

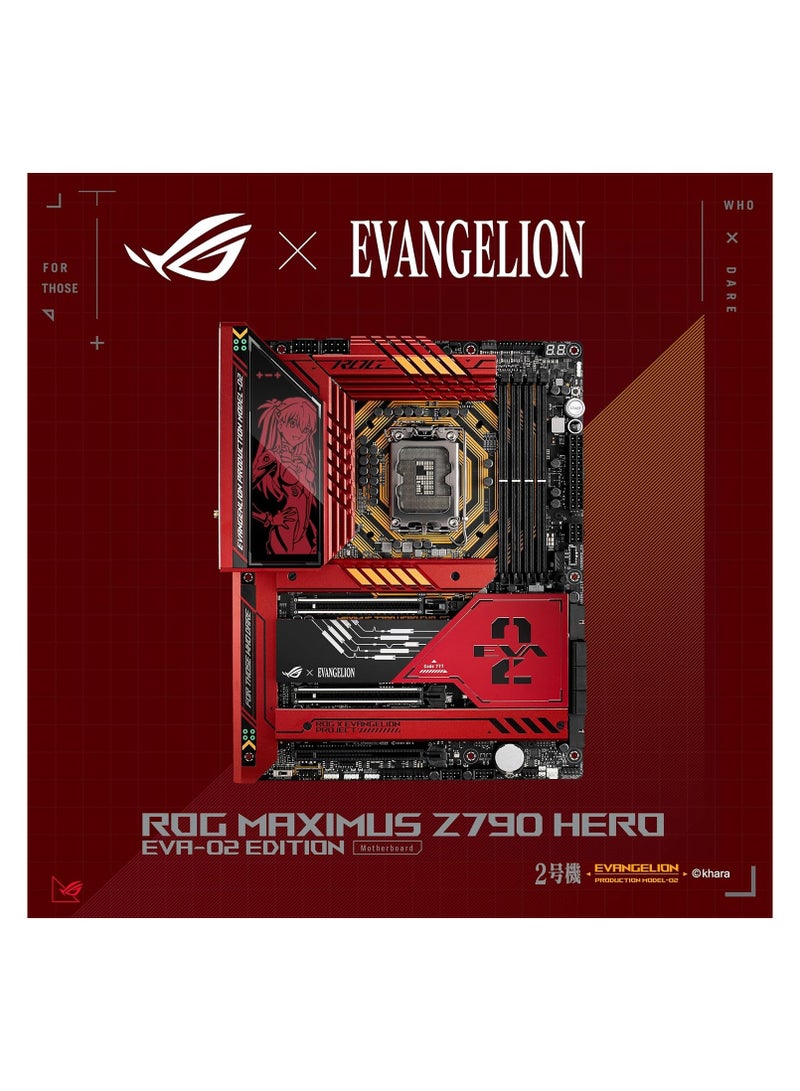

OverviewThe ASUS ROG Maximus Z790 Hero EVA-02 Edition is the result of a new collaboration centered around EVA-02 and Asuka of the long-celebrated Evangelion anime series. After catching your eye with EVA-02’s signature red-and-orange theme and traces of green, the artistic flourishes keep coming: an AT Field design surrounds the CPU socket, and Polymo lighting on the I/O cover switches between Asuka and regular EVA-02.
Specifications
Colour Name
Red
Wattage
20 W
Maximum Memory Support
128 GB
Chipset
Intel Z772
CPU Socket
LGA 1700
Model Number
90MB1FL0-M0EAY0
Model Name
ROG MAXIMUS Z790 HERO EVA II
Number of pieces
1
