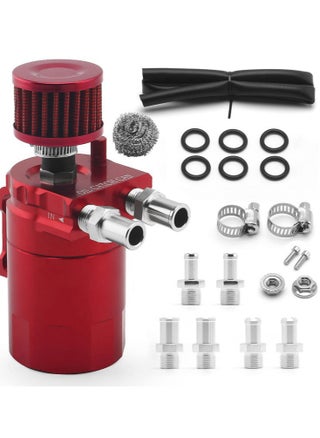

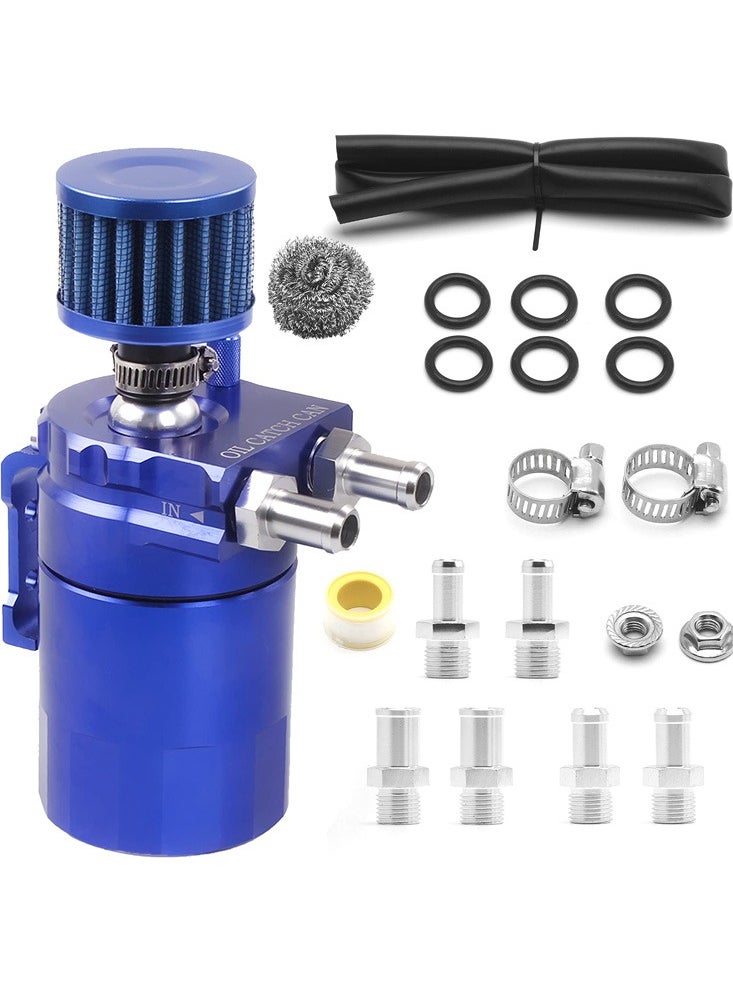

Universal Oil Catch Can Tank Kit Polish Baffled Reservoir with Breather Filter with 3/8" Fuel Line, Aluminum, Black, 400ml

Meiyilan Universal Oil Catch Can Tank Kit Polish Baffled Reservoir with Breather Filter with 3/8" Fuel Line,Aluminum,Black,400ml

Function:

Collect steam from the crankcase

Reduce the amount of steam entering the intake branch

Reduce the probability of secondary combustion

Reduce carbon deposition

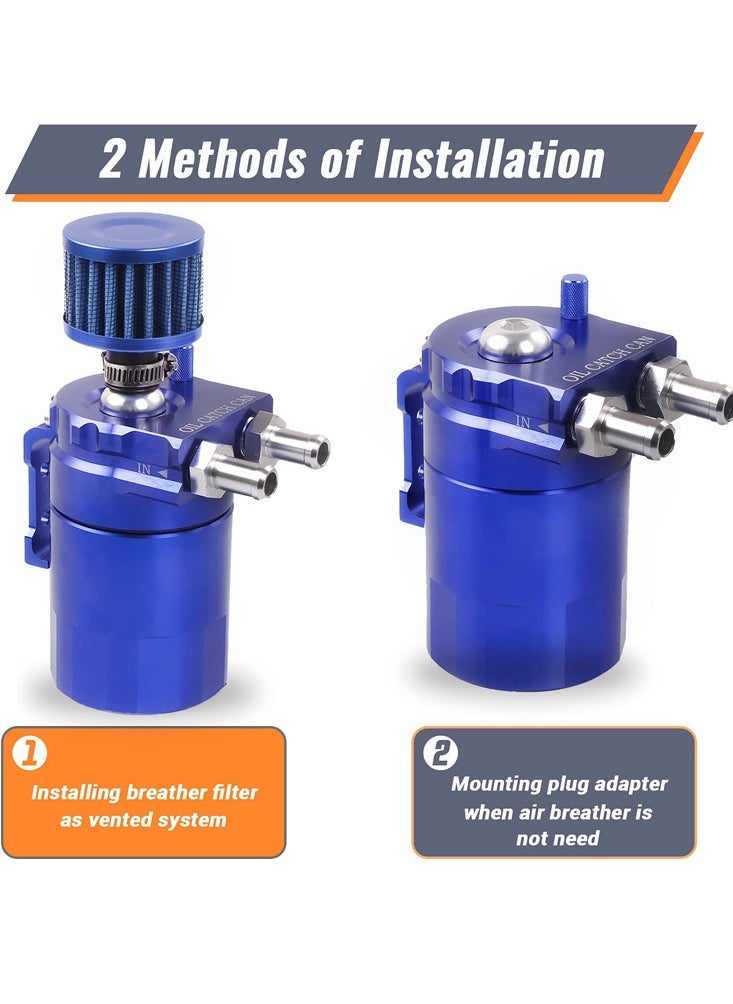

2 Methods of Installation

The oil catch can with breather filter as a vent system or without breather filter as a seal can, all for your option.

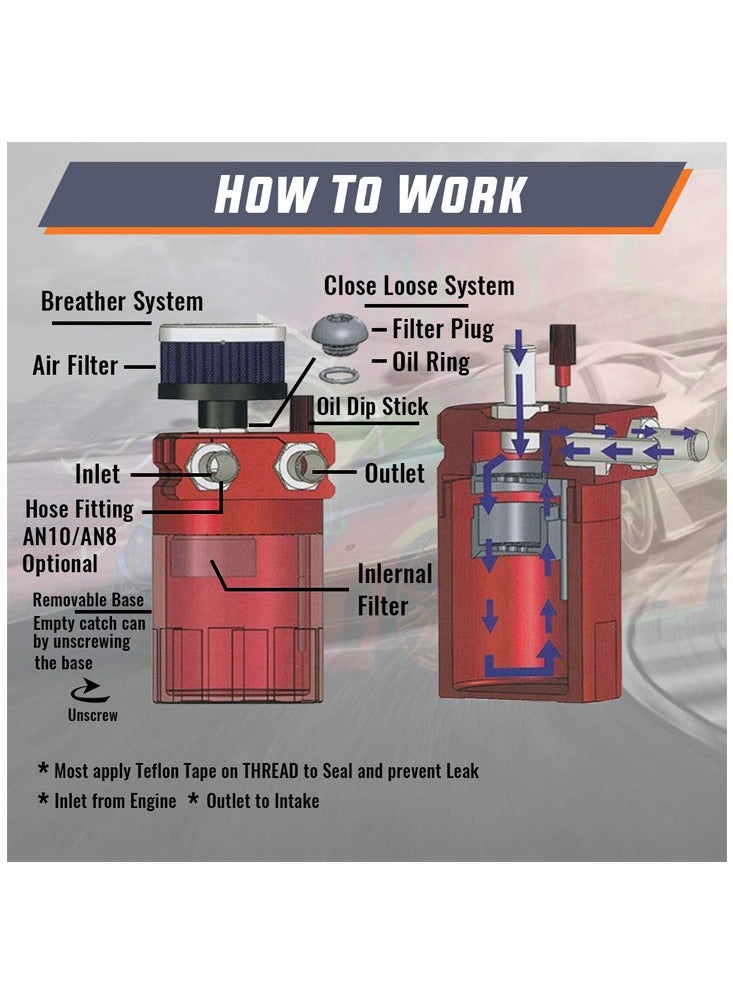

How to Work

To turbo inlet(carrying uncontaminated air without oil spray

Upper part of canister has no foam in order to help evacuate air using vacuum from turbo inet

The bottom is sludge and oil residues

Removable base empty catch can by the base

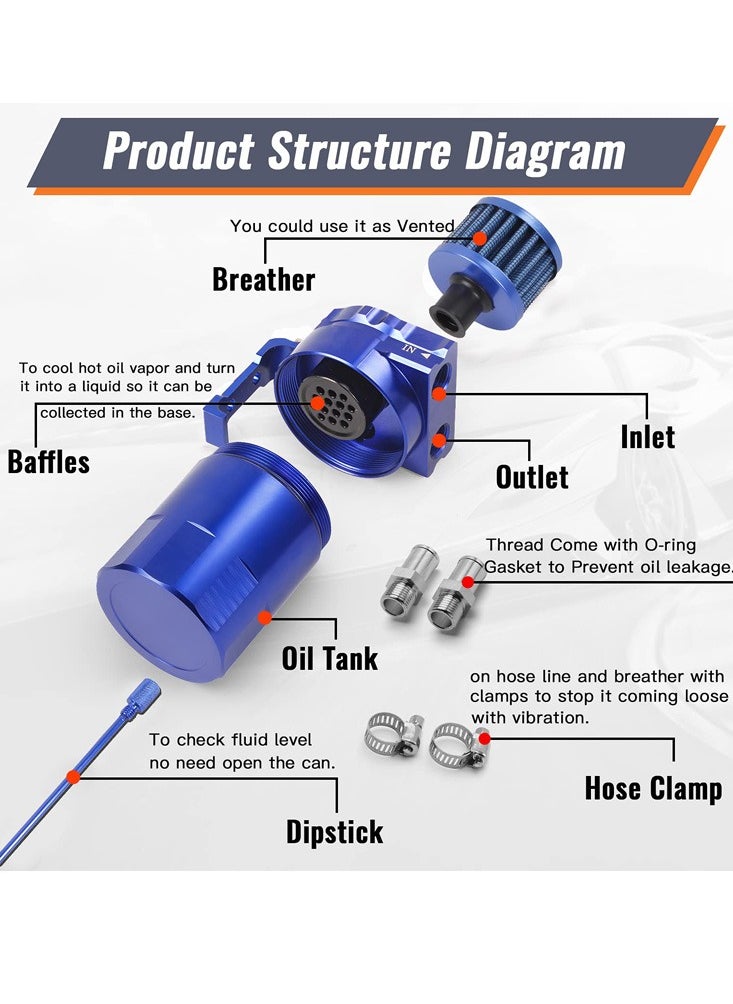

Upgrade Structure

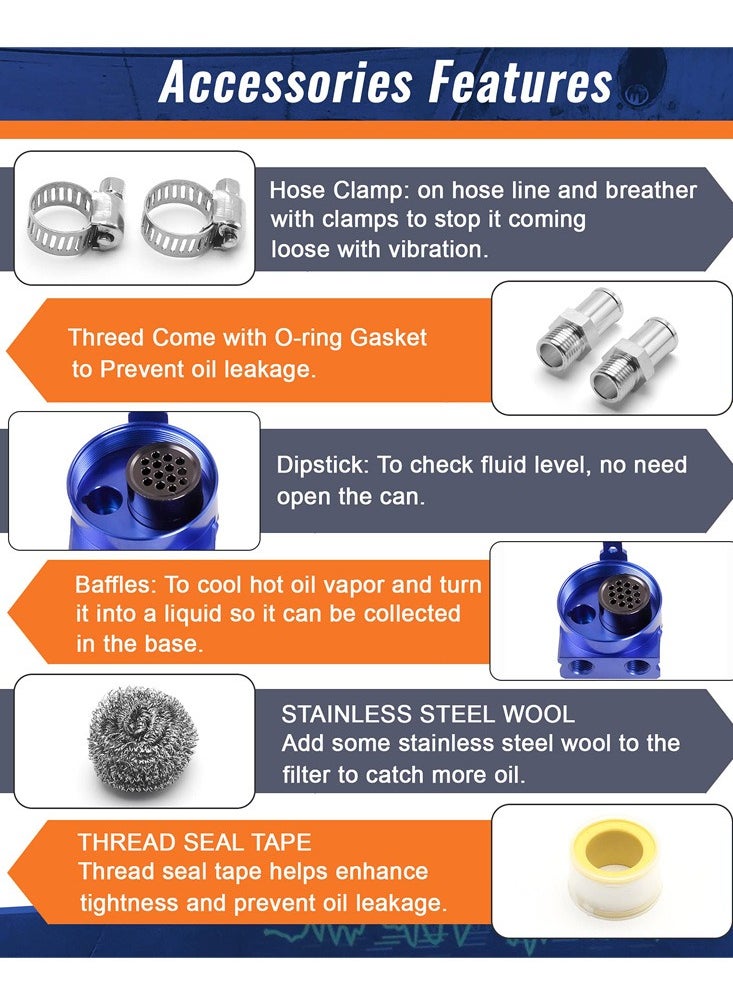

Breather: You can use it as Vented system;

Baffles: The cool hot oil vapor and turn it into a liquid so it can be collected in the base;

Dipstick: To check fluid level no need open the can;

O-ring Gasket: Thread come with O-ring Gasket to prevent oil leakage;

Hose Clamp: On hose line and breather with clamps to stop it coming loose with vibration.

Installation

Move away the engine cover.

Take the pipe away and put aside.

Wrap the anti -skid tape on the thread part of screws.

Put the screw on the oil catch tank.

Use your own nuts&bolts to hold the bracket to the unit.

Move out of the screw here,and then put the oil catch tank on the position with the same screw.

Take a new hose and cut a suitable length you think. 8.Put clamps on the two ens of the pipe and hose.
