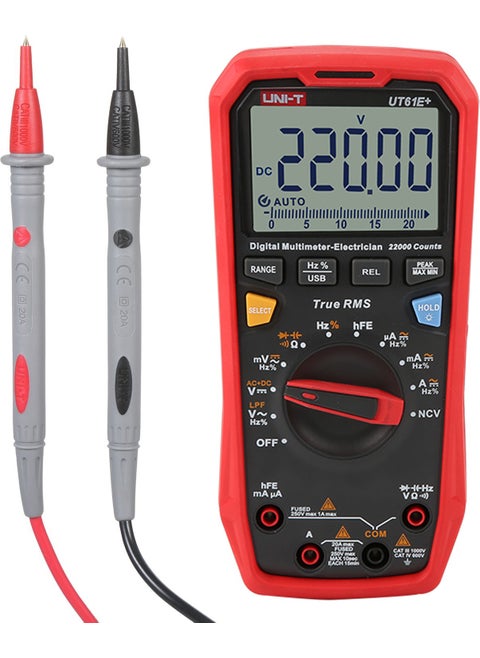

UT61E + Digital Multimeter Auto Range High (From Overseas)

OverviewFeatures: UT61E+ can measure multiple parameters including DC/AC voltage, DC/AC current, resistance, diodes, capacitance, frequency, duty cycle and perform NCV detection and continuity test. Equipped with a large LCD display with backlight, which is easy to read and shows clear readings for 22000 counts. Ergonomically designed for convenient operation, and the rubber case ensures it is durable for long-time use. It comes with a protective rubber case to ensure durability, two test cable slots for better storage, and a support stand to help the device stand freely. It supports data transfer with the provided USB cable, more practical and convenient. It provides audio alarm and indicator light for voltage and current measurement, diodes and continuity testing, and NCV detection. Ideal tool for home circuit installation, electronics repair, electrical facilities maintenance, automobile repair, home appliance repair. Specifications: Brand: UNI-T Model: UT61B+ / UT61D+ / UT61E+ (Optional) Material: ABS Model UT61B+ UT61D+ UT61E+ AC Voltage(V) 60mV~1000V; (1.0＋3%) 60mV~1000V; (1.0＋3%) 200mV~1000V; (0.8＋10%) DC Voltage(V) 60mV~1000V; (0.5＋3%) 60mV~1000V; (0.5＋3%) 200mV~1000V; (0.05＋5%) AC Current(A) 600μA~10A; (1.2＋5%) 600μA ~ 20A; (1.2＋5%) 220μA ~ 20A; (0.8＋10%) DC current (A) 600μA ~ 10A; (1.0＋2%)600μA~20A; (1.0＋2%) 220μA ~ 20A; (0.5＋10%) Resistance (Ω) 600Ω ~ 60MΩ; (1.0＋2%) 600Ω ~ 60MΩ; (1.0%＋2%) 220Ω ~ 220MΩ; (0.5%＋10%) Capacitance(F) 60nF~60mF; (3.0%＋5%) 60nF~60mF; (3.0%＋5%) 22nF~220mF; (3.0%＋5%) Frequency(Hz) 10Hz~10MHz; (0.1%＋4%) 10Hz~10MHz; (0.1%＋4%) 10Hz~220MHz; (0.01%＋5%) Duty cycle(%) 0.1%~99.9%; (2.0%＋5%) NCV＞100V N/A Temperature -40℃~1000; (1.0%＋3%) -40~1832℉; (%1.0＋6) N/A Number of displays 6000 6000 22,000 Auto/manual range Analog bar 31 31 46 True RMS Frequency response 40 Hz~500 Hz 40Hz~1KHz 40Hz~10KHz LPF (Low pass filter) N/A N/A LoZ V~ (Low impedance measurement) N/A N/A ACV+DCV N/A N/A Diode test Triode test N/A N/A Automatic shutdown About 15 minutes On-off measurement ＜ 50Ω beep, 70Ω beep Low voltage indicator Data hold/relative value Max/Min value Peak measurement N/A USB data transmission LCD backlight Safety ratings CAT III 1000V / CAT IV 600V Power 1.5V AAA battery (R03) x 4 (Not included) Product Size: 87*50*180mm / 3.42 * 1.96 * 7.08in Item Weight: 326g / 11.49oz Package Weight: 694g / 24.48oz Package Size: 25 * 17 * 7cm / 9.84 * 6.69 * 2.75in Package List: 1 * UT61E+ Multimeter 1 * Test Leads 1 * USB Cable 1 * Adapter Socket 1 * User Manual(English)
