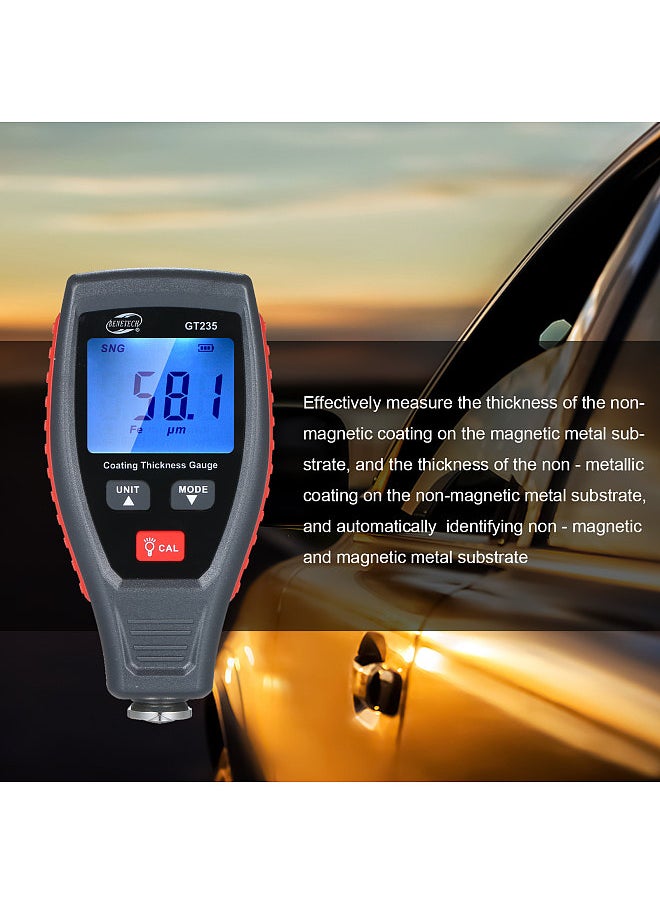

الميزات الأساسية- Basic Functions: it can measure the thickness of the non-magnetic coating on the magnetic metal substrate, and the thickness of the non-metallic coating on the non-magnetic metal substrate.
- Smart Gauge: automatically identifying non-magnetic and magnetic metal substrate.
- 3 Measurement Modes Switchable: Single measurement(SNG), continuous measurement(CTN) and differential measurement(DIF) available, short press the MODE button to switch.
- Calibration Operation: including zero-point calibration, offset calibration and basic calibration.
- Metric and Imperial Measuring Units: short press the UNIT button to switch among μm(metric), mil(imperial), and mm(metric) in turn.
نظرة عامةSpecifications:
Material: ABS
Unit: μm, mil, mm

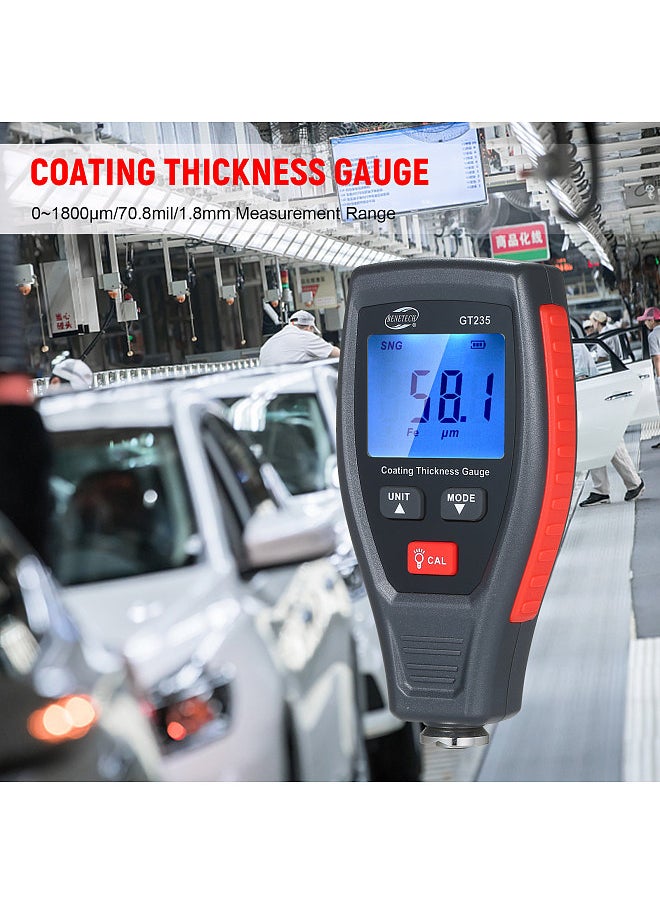

Measurement Range: 0~1800μm/70.8mil/1.8mm
Resolution: (0.1μm(＜100μm, 1μm(≥100μm))/0.1mil/0.001mm
Measuring Error:
≤150μm, ±5μm
>150μm, ±(3%H+1μm)
Minimum Diameter of Magnetic Substrate: 12mm
Minimum Thickness of Magnetic Substrate: 0.5mm
Minimum Curvature Radius of Convex Magnetic Substrate: 2mm
Minimum Curvature Radius of Concave Magnetic Substrate: 11mm
Minimum Diameter of Non-magnetic Substrate: 50mm
Minimum Thickness of Non-magnetic Substrate: 0.5mm
Operating Environment: -20~40℃, 10~95%RH
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 121.5 * 62 * 27mm / 4.78 * 2.44 * 1.06in
Item Weight: 176g / 6.21oz
Package Weight: 283g / 9.98oz
Package Size: 18 * 12.5 * 5.5cm / 7.09 * 4.92 * 2.17in
