نظرة عامةSTM32 F4 DISCOVERY Card is now in Robotistan stocks!!!

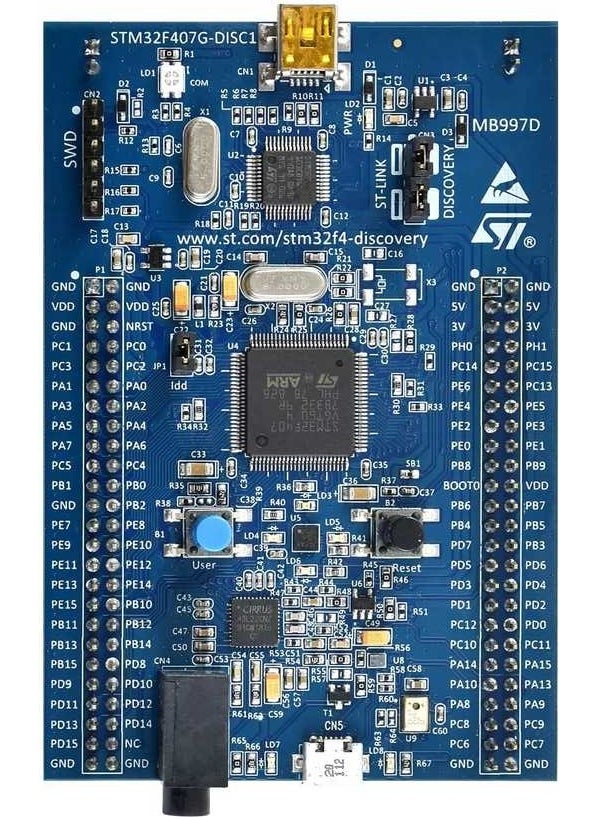

You can easily complete many of your projects with the high-power ARM®Cortex®-M4 32bit processor on the STM32 F4 DISCOVERY development board. This card contains everything beginners or experienced users need to get started quickly.
This development board includes the ST-LINK/V2 or ST-LINK/V2-A debugging tool, two digital ST MEMS 3-axis accelerometers, a digital microphone, an audio DAC with an internal class D speaker driver, LEDs and push buttons. and includes 1 USB OTG connector.
NOTE: There is no USB cable in the package! You can access the USB cable that you can use with the product.
STM32 Discovery Features:
- STM32F407VGT6 32bit FPU core ARM Cortex® -M4 microprocessor, 1Mb Flash Memory, 192 KB RAM in LQFP100 package
- Built-in ST-LINK/V2 debug tool
- ARM® mbed™ -enabled (http://mbed.org)
- USB ST-LINK and 3 different interfaces with renumbering capability:
1- Virtual com port
2- Storage system
3- Debug port
- Card Power: USB bus or 5V DC
- Power for External Applications: 3V or 5V DC
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02 ST MEMS omnidirectional digital microphone audio sensor
- CS43L22 is an audio DAC with a built-in class D speaker driver
- Eight LEDs:
1- LD1(red/green) for USB connection
2- LD2(red) when 3.3V power is applied
3- 4 user LEDs; LD3(orange), LD4(green), LD5(red) and LD6(blue)
4- 2 USB OTG LEDs LD7(green) VBUS and LD8(red) over current
- Two push buttons (User and reset buttons)
- USB OTG FS with micro-AB connector
- LQFP100 I/Os extension headers for prototyping and easy-fast connection
- Comprehensive and free software, including various examples, packages STSW-STM32068 or STM32CubeF4 for use of built-in libraries
- System requirements; Windows® OS (XP, 7, 8,10) and mini USB
- Development Tools;
one-
2nd-
3- GCC-based IDEs (free AC6: SW4STM32, Atollic® TrueSTUDIO®,...)
4-
Documents:
