راديون آر إكس 580

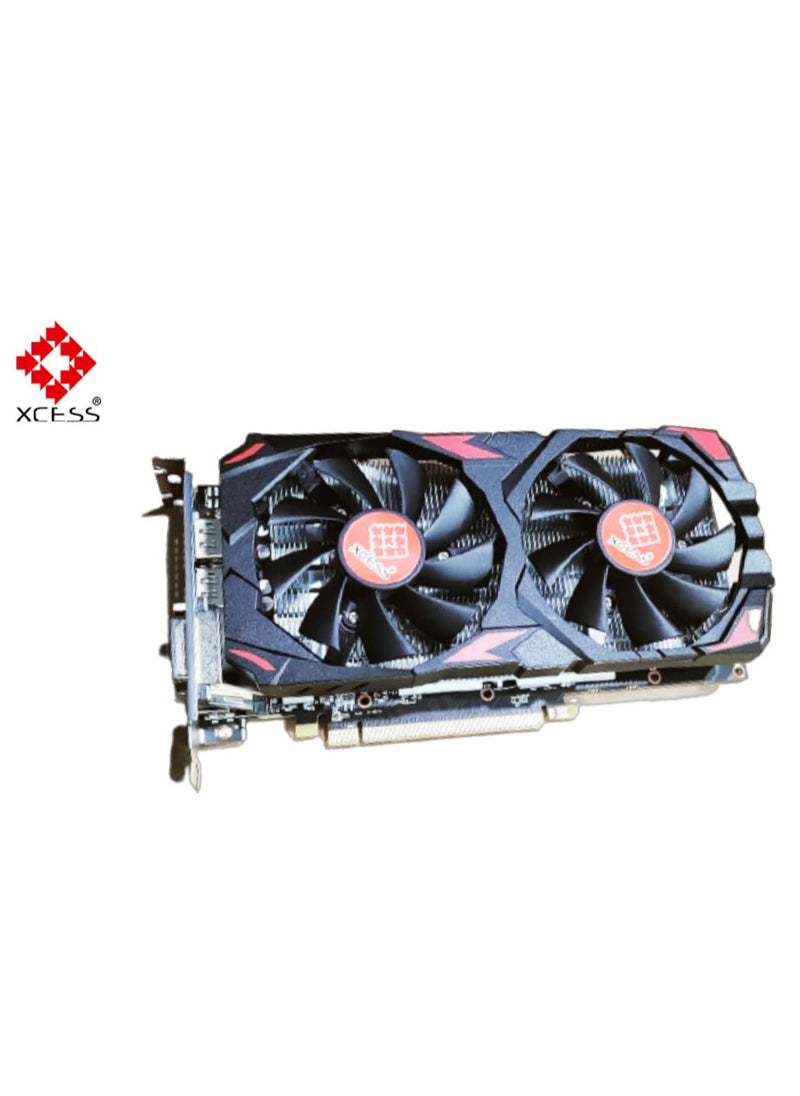

نظرة عامةThe Radeon RX 580 is a performance-segment graphics card by AMD, launched on April 18th, 2017. Built on the 14 nm process, and based on the Polaris 20 graphics processor, in its Polaris 20 XTX variant, the card supports DirectX 12. This ensures that all modern games will run on Radeon RX 580. The Polaris 20 graphics processor is an average sized chip with a die area of 232 mm² and 5,700 million transistors. It features 2304 shading units, 144 texture mapping units, and 32 ROPs. AMD has paired 8 GB GDDR5 memory with the Radeon RX 580, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1257 MHz, which can be boosted up to 1340 MHz, memory is running at 2000 MHz (8 Gbps effective). Being a dual-slot card, the AMD Radeon RX 580 draws power from 1x 8-pin power connector, with power draw rated at 185 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort. Radeon RX 580 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 241 mm in length, and features a dual-slot cooling solution
