2 in 1 Digital Oscilloscope DDS Signal Generator Desktop Oscilloscope Capture Output Signal Function, 2 Channels 100Mhz Bandwidth 1GSa/s Sampling Rate Built-in 1GB Storage Space

two in one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with 7inch TFT LCD display screen, the built-in high-voltage pro-tection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear, built in DDS function signal generator and the industry's ori-ginal chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. Come on and try it, it will not let you down.

Specifications:

Material: ABS

Ana-log band width: 100MHz * 2

Number of channels: 2 channels

Maximum real time sampling rate: 1GSa/s

Vertical sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div ~ 10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Storage depth: 240Kbit

Input resistance: 1MΩ

ADC precision: 8bits

Coupling mode: AC/Direct Current

Trigger mode: Single, Normal, Auto

Trigger edge: Rising edge/Falling edge

External trigger voltage 0~40 V

Extension ports: USB picture export

Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in

Package weight: 1949g / 4.3lb

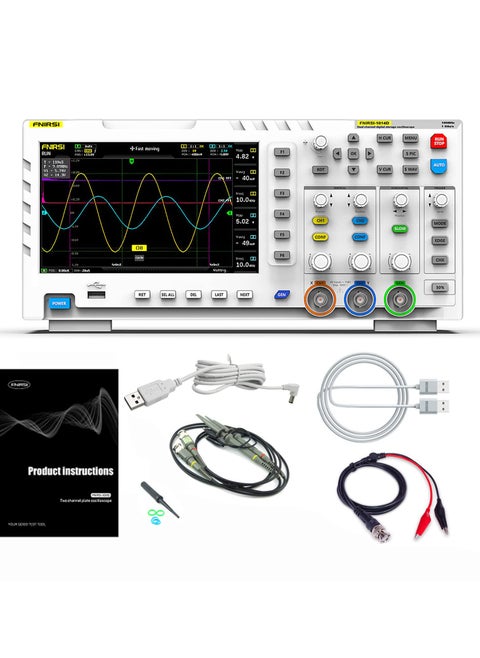

Packing list:

1 * Oscilloscope Host

2 * Matching 100MHz Probe (1X and 10X）

1 * Clip

1 * 5V2A Eu Power Adapter

1 * USB Data Line

1 * English User Manual
