(2 Pack 6 ft Replacement 3.5mm 90 Degree Male Plug to Bare Wire Open End TRRS 4 Pole Stereo 1/8" 3.5mm Plug Jack Connector Audio Cable for Headphone Headset Earphone Microphone Cable Repair

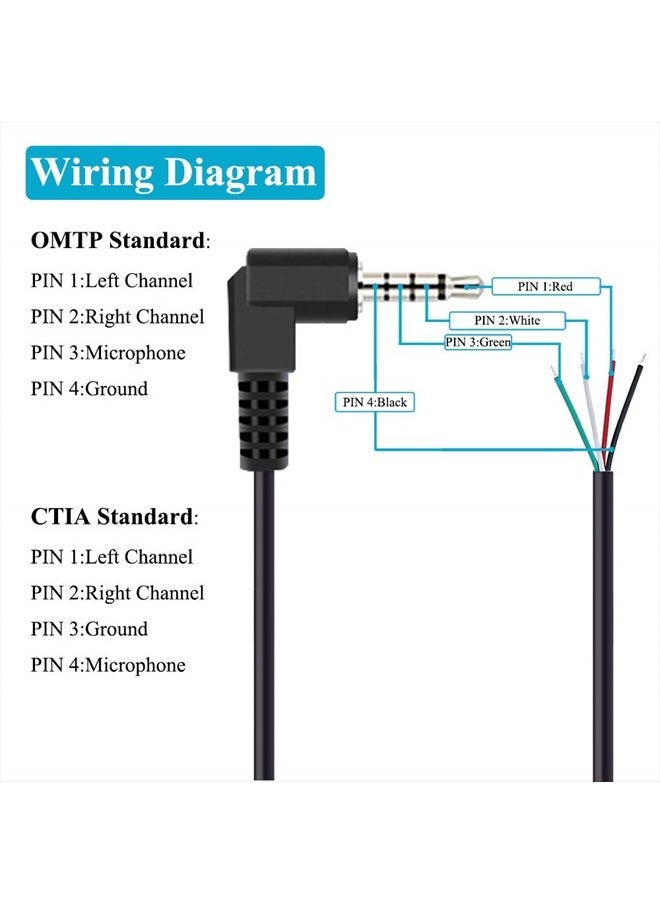

Overview3.5mm 90 degree right angle stereo 4 pole male plug to bare wire replacement audio cable.Wiring diagram: PIN 1 - red wire; PIN 2 - white wire; PIN 3 - green wire; PIN 4 - black wire.OMTP standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Microphone; PIN 4 - Ground.CTIA standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Ground; PIN 4 - Microphone.Perfect replacement 3.5mm 90 degree right angle male plug connector to bare wire audio cable for worn-out or broken headphone headset earphone microphone speakers cable repair.Easy to handle, you really don't have to be a professional to do this. Connect the corresponding bare wires together, wrap and seal the bare wire with insulating tapes.Package contents: 2-Pack 6 ft length, 3.5mm 90 degree right angle stereo 4 pole male plug connector replacement audio cable. Connector Type: Auxiliary Special Feature: 3.5mm replacement jack,3.5mm repair jack Wiring diagram: PIN 1 - red wire; PIN 2 - white wire; PIN 3 - green wire; PIN 4 - black wire. OMTP standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Microphone; PIN 4 - Ground. CTIA standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Ground; PIN 4 - Microphone.
