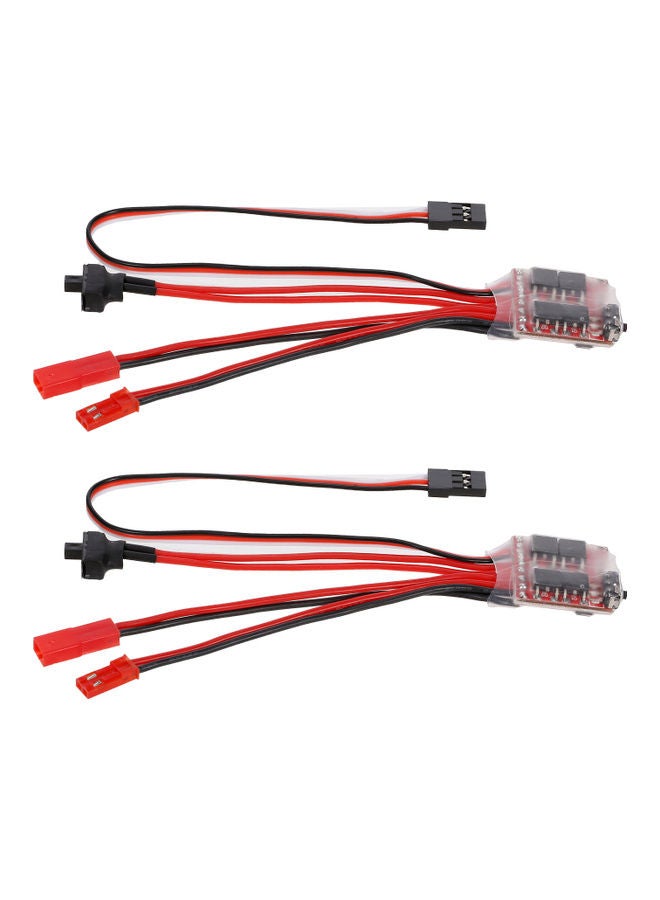

2-Piece 30A Brushed ESC Set

This ESC with the brake switch, support forward, backward. It is suitable for 130/180/260/280/380 brush motors, 1/16 1/18 1/24 RC car/boat/ tank.
Feature:
Support forward, backward, with the brake switch.
Be suitable for 130/180/260/280/380 brush motors, 1/16 1/18 1/24 RC car/ boat/ tank.
Replacement for HSP Redcat Traxxas Tamiya HPI rc4wd axial RC cars.
Voltage support: 4~8V. Forward 30A, instantaneous peak value 40A, backward 20A, brake 40A. UBEC output: voltage 5.7V, current 1A.

Specifications:
Item: 30A brushed ESC
Voltage support: 4~8V, can be directly connected to 2s lithium battery (7.4v)
Current parameters:
forward 30A, instantaneous peak value 40A
Backward 20A,
Brake 40A,
UBEC output: voltage 5.7V, current 1A
The default is the JST interface, with switch
Connection:
Battery (must be distinguished between red positive and black negative)
Motor (regardless of positive and negative)
Black, red and white three lines: ch2 of the receiver
Suitable motors: 130/180/260/280/380 brush motors
Suitable car: 1/16 1/18 1/24 RC car
Size: L25mm, W23mm, H5mm
Notice:
x There could be some deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.
Package size: 9.5x8x1cm
Package weight: 30g
Plastic Package
Packing List:
2x 30A brushed ESC
