ABX00030 - NANO 33 BLE BOARD

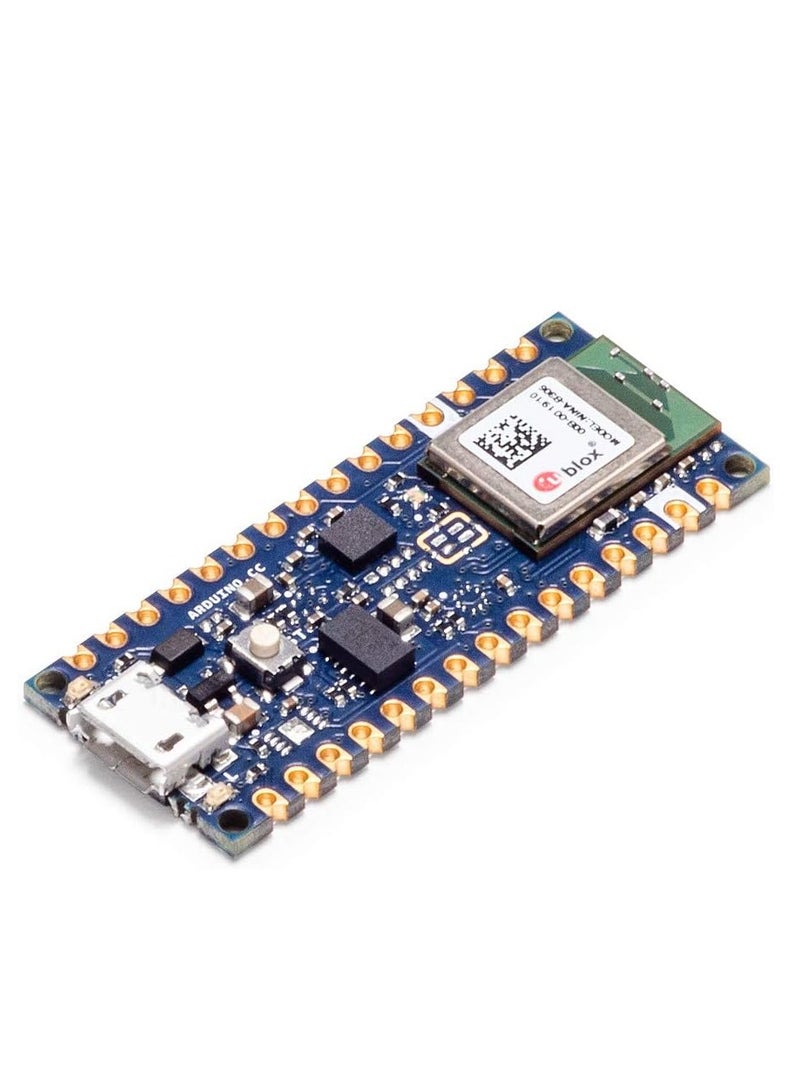

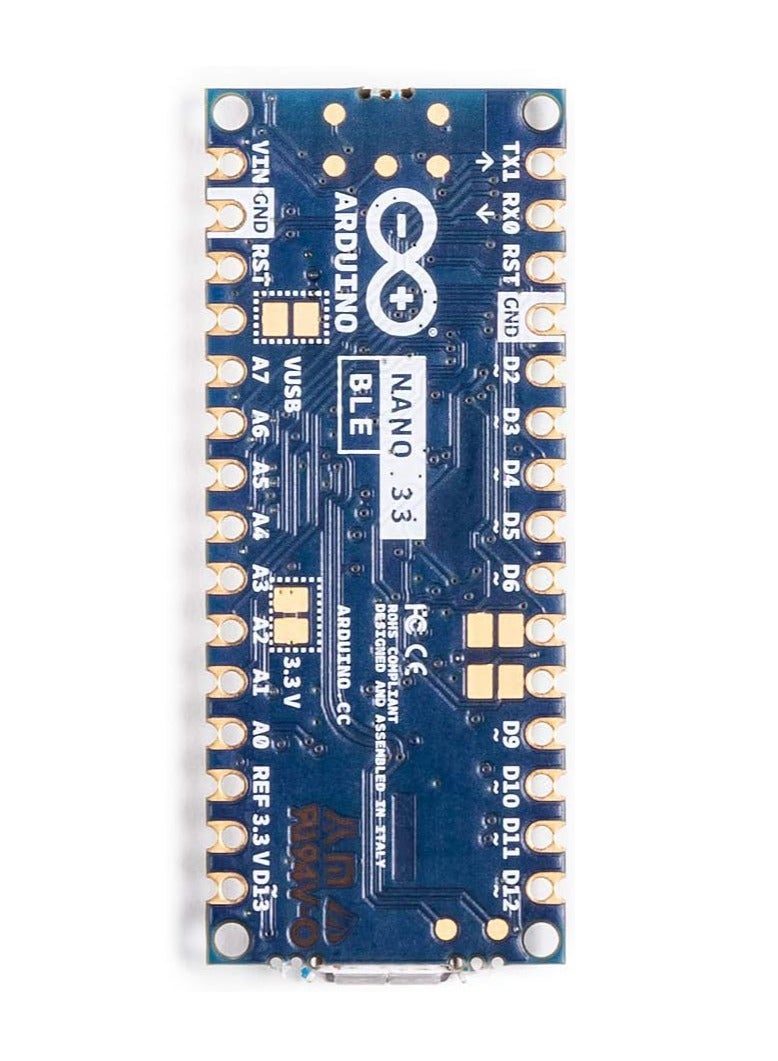

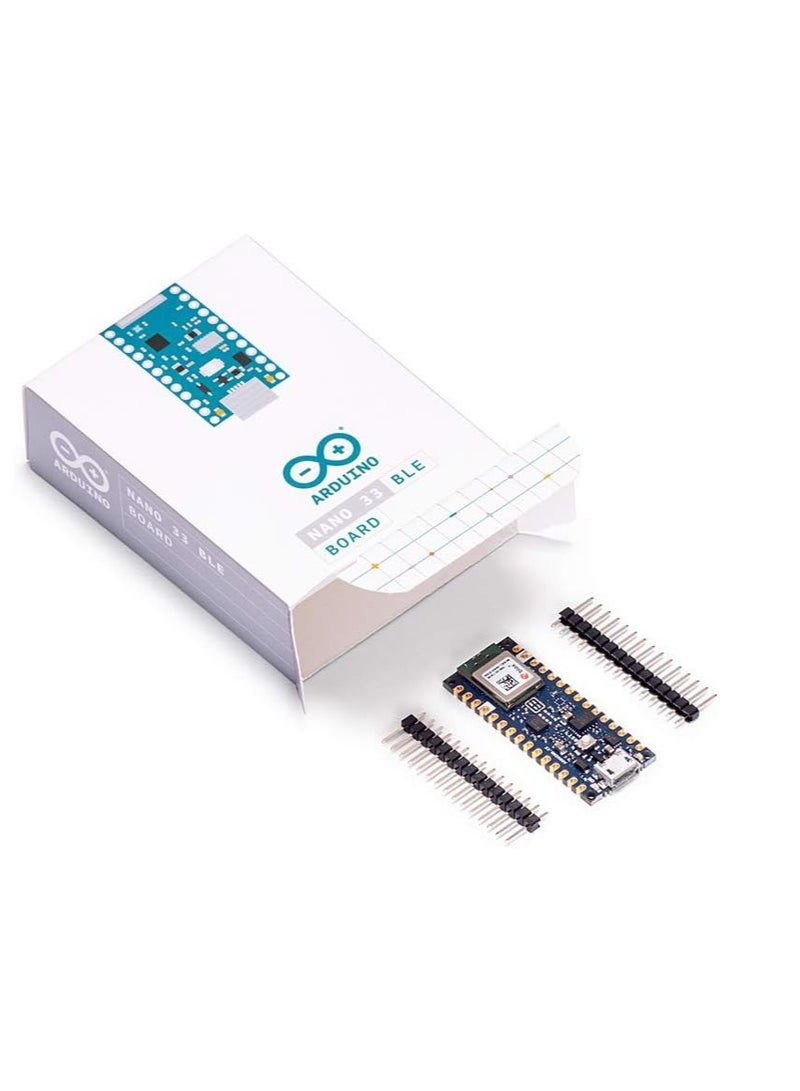

Brand Arduino Model name Arduino Nano 33 BLE Connectivity technology Bluetooth Included components 1 x Board Operating system DOS About this item Designed for short range BT interactions and power savvy projects. Small (48mm x 18mm) and robust board is built around the NINA B306 module, based on Nordic nRF 52840 and containing a powerful Cortex M4F. The board’s architecture is fully compatible with Arduino IDE Online and Offline; it has a 9 axis Inertial Measurement Unit (IMU) and a reduced power consumption compared to other same size boards. Clock 64MHz, Flask 1MB, RAM 256KB. Two 15 pin connectors - one on each side of the board. The Arduino Nano 33 BLE (without headers) is an evolution of the traditional Arduino Nano, but featuring a lot more powerful processor, the nRF52840 from Nordic Semiconductors, a 32-bit ARM Cortex-M4 CPU running at 64 MHz. Specifications: -Microcontroller nRF52840 -Operating Voltage 3.3V -Input Voltage (limit) 21V -DC Current per I/O Pin 15 mA -Clock Speed 64MHz -CPU Flash Memory 1MB (nRF52840) -SRAM 256KB (nRF52840) -EEPROM none -Digital Input / Output Pins 14 -PWM Pins all digital pins -UART 1 -SPI 1 -I2C 1 -Analog Input Pins 8 (ADC 12 bit 200 ksamples) -Analog Output Pins Only through PWM (no DAC) -External Interrupts all digital pins -LED_BUILTIN 13 -USB Native in the nRF52840 Processor -Length 45 mm -Width 18 mm -Weight 5 gr
