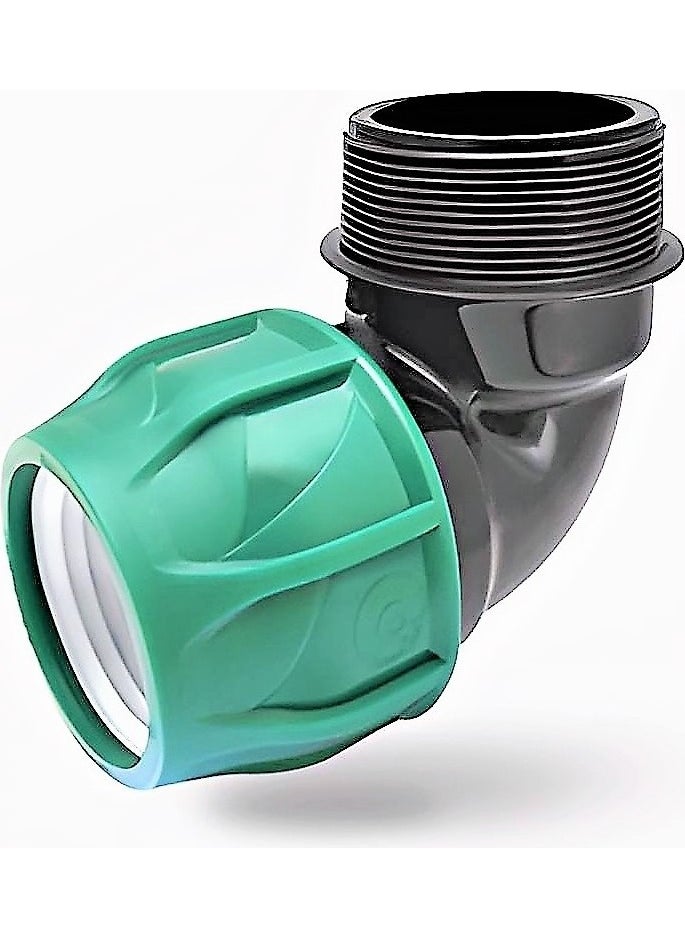

Cable External Thread Elbow 50'

POELSAN CABLE EXTERNAL THREAD ELBOW 50 8255

Poelsan pipe connection adapters should be kept away from hard and sharp objects during storage and installation. If the installation will be laid underground, it should be covered with sand to protect it from hard and sharp objects. Damaged adapters should never be used.

 In order to get maximum efficiency from Poelsan pipe connection adapters, tees and elbows should be mounted on the pipe at a 90° angle, and other adapters should be at a 180° angle. Connections at different angles will cause stress on the adapter, and the life of the installation will be reduced.

 Teflon tape should be used in threaded connections. Teflon tape should be wrapped around the adapter long enough to prevent water leakage and in the tightening direction.

 Over tightening of the nut during assembly will cause additional stress on the adapter. The product, which has been subjected to additional stress in this way, cannot be expected to meet the guaranteed pressure values. For this reason, it should not be forgotten that the product is plastic and should only be tightened with enough force to ensure sealing.

Final Check of the Installation

VISUAL INSPECTION

Adapters must be visually inspected to detect damaged adapters during the installation of the installation.

TIGHTNESS CHECK

After the installation of the installation, water must be supplied to the installation at test pressure and the leakage condition must be determined.

APPLICATIONS THAT MAY CAUSE LEAK

Thread dimensions of Poelsan pipe connection adapters are produced in accordance with standards.

• The other metal or plastic material used is not suitable,
• Not using enough Teflon tape,
• Deterioration of the teeth of the product as a result of excessive tightening of the product or not mounting it properly during assembly,
• Damage to the o-ring or dislocation of the o-ring during assembly,
• The ovality in the pipes is greater than the given tolerance values,
• Incorrect mounting of the nut, not tightening it sufficiently or tightening it too much, causing the product to crack,
• Assembling the adapter by tightening the nut before combining the pipe holder with the o-ring holder,

It may cause leakage in your plumbing.

Features

• It is made of high quality polypropylene raw material that is resistant to impacts.
• It prevents problems that may arise from size differences or ovality in the pipes thanks to its conical tightening feature.
• Since it does not pass UV rays, it does not allow algae and bacterial growth.
• Its o-ring is made of rubber and provides sealing under high pressure.
• The inner surfaces are homogeneous and non-porous.
• It does not contain harmful compounds that can change the smell and taste of water.
• Our female products provide high sealing at variable temperatures thanks to the corrosion-resistant metal ring.
• Thread dimensions comply with ISO 7-1 Standard.
• Complies with ISO 17885 Standard.
