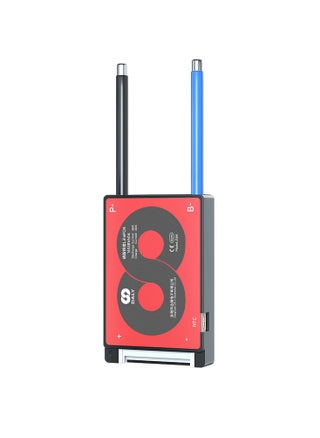

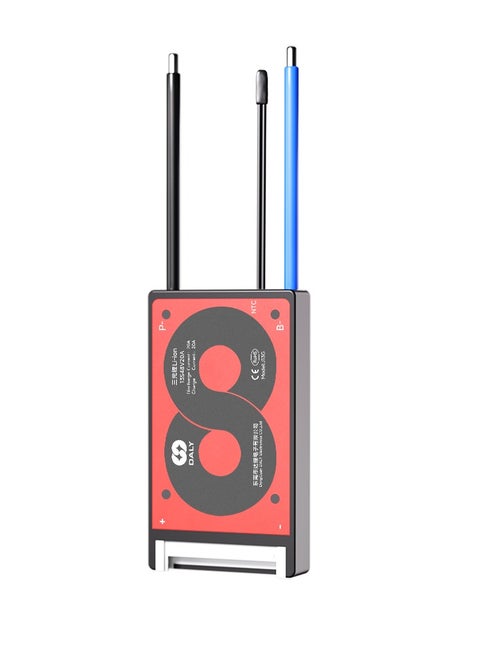

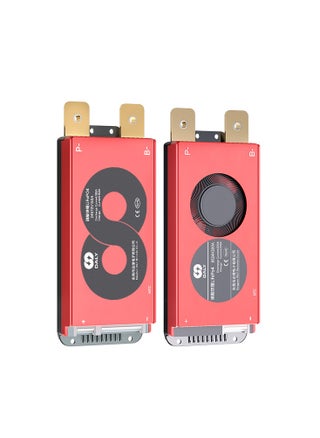

DALY Hardware BMS 15A &20A Protection Board with Temperature Sensor(NTC) for Lithium Battery Pack（LifePO4，Li-ion）

45.70

 99.00

Inclusive of VAT

Saving:

 53.30

53% Off

Only 5 left in stock

Get it by 29 April

Order in 9 h 50 m

Delivery by noon

Cash on Delivery

Secure Transaction

Size

Hardware BMS- G Board Li-ion 15A 3S

Colour Name:

Explore other bestsellers in
Battery Chargers

BANK OFFERS

Earn 5% cashback with the Mashreq noon Credit Card.

SELLER

Sold by

DALY ELECTRONICS TECHNOLOGY - FZCO

Not enough ratings to show

1 year warranty

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

Powerful Protection Function: The BMS offers a robust range of protection features, including overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, and temperature protection. These ensure the battery pack is safe from damaging conditions, enhancing the longevity and performance of the cells. 【Note】Hardware BMS dosen't have communication functions.
Other Protective Functions: The BMS is built with dust-proof, shockproof, and anti-squeezing features, making it more durable and capable of withstanding harsh environmental conditions. This adds an extra layer of protection, ensuring the BMS continues to function effectively even in challenging situations, such as vibration, dust, or physical pressure.
Wide Compatibility (Right Model Selection): DALY BMS 15A and 20A protection boards are compatible with Li-ion and LFP lithium batteries. It supports configurations from 4S to 13S. However, it is critical to select the correct model based on the voltage and current specifications of the battery pack.
Temperature Monitoring (NTC Sensor): Equipped with an NTC temperature sensor, the BMS monitors the battery pack's temperature. If the temperature rises above safe levels, the BMS disconnects the pack to prevent overheating, which could cause cell degradation or even thermal runaway.
The built-in passive balance function in the DALY BMS is a practical, efficient, and affordable solution for keeping cells balanced. It works seamlessly during charging, prevents overcharging and undercharging, and contributes to the overall reliability and lifespan of the battery pack. Let me know if you'd like guidance on choosing the right DALY BMS model for your application!

Overview

Specification	Details
Battery Type	Li-ion or LiFePO4 (Choose the correct model for your battery type)
Battery Strings	Li-ion: 3-13S \| LiFePO4: 4-13S
Charge Voltage (V)	Li-ion: 4.2V x Battery Strings \| LiFePO4: 3.65V x Battery Strings
Balance Turn-on Voltage (V)	Li-ion: 4.125V \| LiFePO4: 3.525V (Passive Balance Function)
Balance Current (mA)	Li-ion: 100mA \| LiFePO4: 70mA (Passive Balance Function)
Overcharge Protection Voltage (V)	Li-ion: 4.25V \| LiFePO4: 3.65V
Overcharge Protection Release Voltage (V)	Li-ion: 4.15V \| LiFePO4: 3.55V
Over-discharge Protection Voltage (V)	Li-ion: 2.7V \| LiFePO4: 2.3V
Over-discharge Protection Release Voltage (V)	Li-ion: 3.0V \| LiFePO4: 2.7V
Rated Discharge Current (A)	15A \| 20A
Rated Charging Current (A)	15A \| 20A
Over-current Protection (A)	Discharge: 50A \| 60A Charge: 20A \| 25A
Internal Impedance	Main circuit on-resistance < 20mΩ
Current Consumption	Self-consumption during operation < 400µA

Product Dimensions

Size (L x W x H): 61mm x 35mm x 9mm
Weight: 60g

How to Select the BMS for Your Battery Pack

Battery Type Compatibility: Choose LFP, Li-ion, or LTO Battery Pack.
Number of Cells in Series: For example, for a 4S battery pack (four cells in series), select a 4S BMS.
Current Rating: Ensure the BMS supports at least the discharge and charge current of your battery (e.g., 20A for 20A battery packs). Add a 20–30% safety margin if needed.
Balancing Functionality: Passive balancing dissipates excess energy as heat, while active balancing transfers energy between cells.
Communication Features: Options include CAN, UART, Bluetooth, and Wi-Fi modules. Note: Hardware BMS lacks communication functions.

Packing List

Hardware BMS *1
Sampling Cables *1
NTC *1
User Manual *1

Specifications

Product Weight	60 g
Colour Name	Hardware BMS- G Board
Product Length	61 mm
Product Height	35 mm
Product Width	9 mm
What's In The Box	Packing List: Hardware BMS 1 Sampling Cables1 NTC 1 Users Manual1
Model Number	Hardware BMS- G Board Li-ion 15A 3S
Model Name	Hardware BMS- G Board
