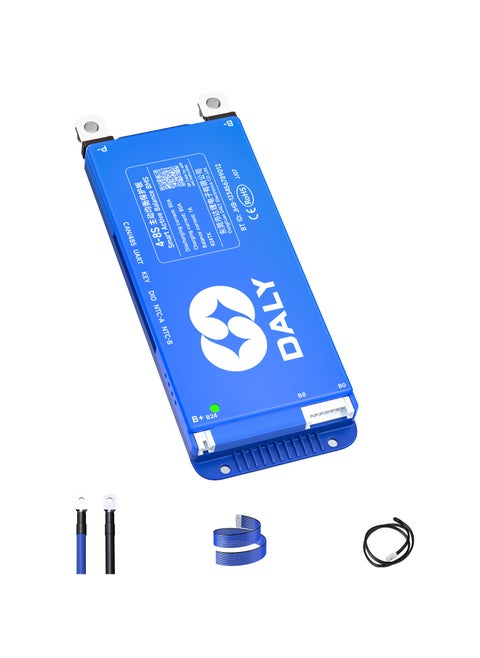

DALY Smart Active Balance BMS 80A to 100A 4S-24S UART & CAN/RS485 Protection Board with Build-in Bluetooth and NTC for LFP/NCM/LTO Lithium Battery Pack

Overview1.Sepecification Battery Type: Li-ion, LiFePO4, LTO （Selectable via mobile app) Compatible battery string range: Li-ion:4-8S / 8-20S | LiFePo4: 4-8S / 8-24S | LTO:6-8S / 8-24S Current Range: 80A/100A Active Balance Current: 0.1A to 1A Bluetooth: Build-in B-P-Cable: 7AWG 100mm Precharge function(Yes/No): Yes Parallel current limiting: Build-in Disconnection protection/wrong-wring protection(Yes/No): Yes Communication: UART *1 RS485*1 CAN*1 Software function: APP/PC Software /iOT cloud platform Sampling cable specifications: 24AWG 450mm NTC length: 250mm 2. Product Dimensions Product Size: L * W * H (mm) = 167*65*15mm, 210g 3. How to select the BMS for your battery pack ? A. Battery Type Compatibility: This smart active balance BMS can suitable for LFP/NCM/ LTO. B. Number of Cells in Series (S) ：4-8S can work with Li-ion&LiFePo4 4S to 8S and LTO:6S to 8S | 8-24S can work with Li-ion 8S to 20S and LiFePo4<O:8S to 24S C.  Current Rating (Discharge and Charge Current)：For example, if your battery can discharge at 60A, your BMS must support at least 60A continuous discharge. Also you can add a margin (e.g., 20–30%) for safety. D. Balancing Functionality: Passive Balancing: Dissipates excess energy as heat OR Active Balancing: Transfers energy between cells. E: Communication Features : CAN, UART, Bluetooth Module, Wi-Fi Module(Optional). Packing List: Smart actice balance BMS *1 Sampling Cables *1 for 4-8S BMS ; Sampling Cables *2 for 8-24S BMS ; P- Cable 7AWG 100mm *1 B- Cable 7AWG 100mm *1 Screws *2 NTC cable *1 RS485/CAN 5Pin Cable *1 B+ Cable *1 Users Manual *1
