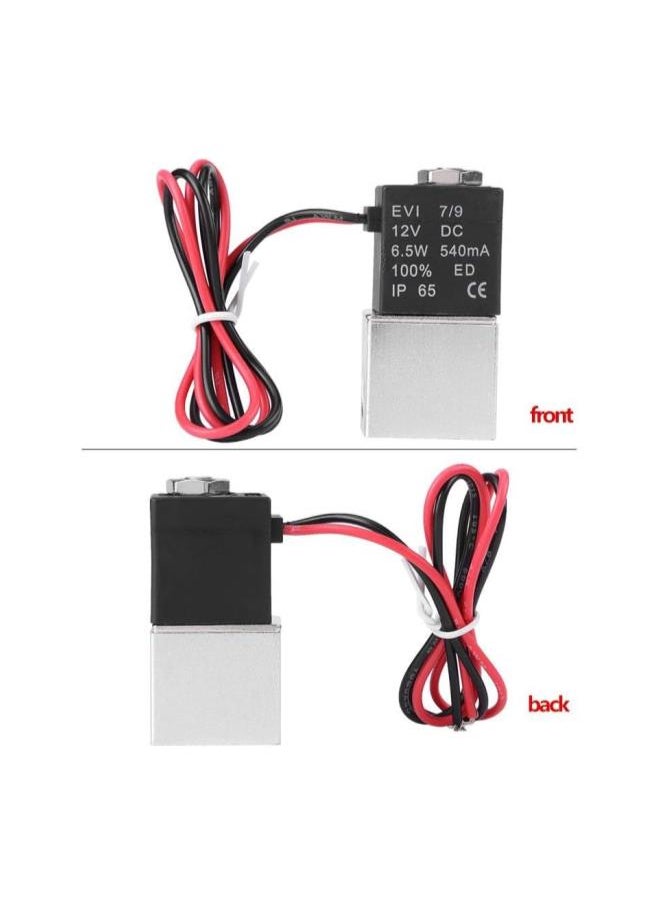

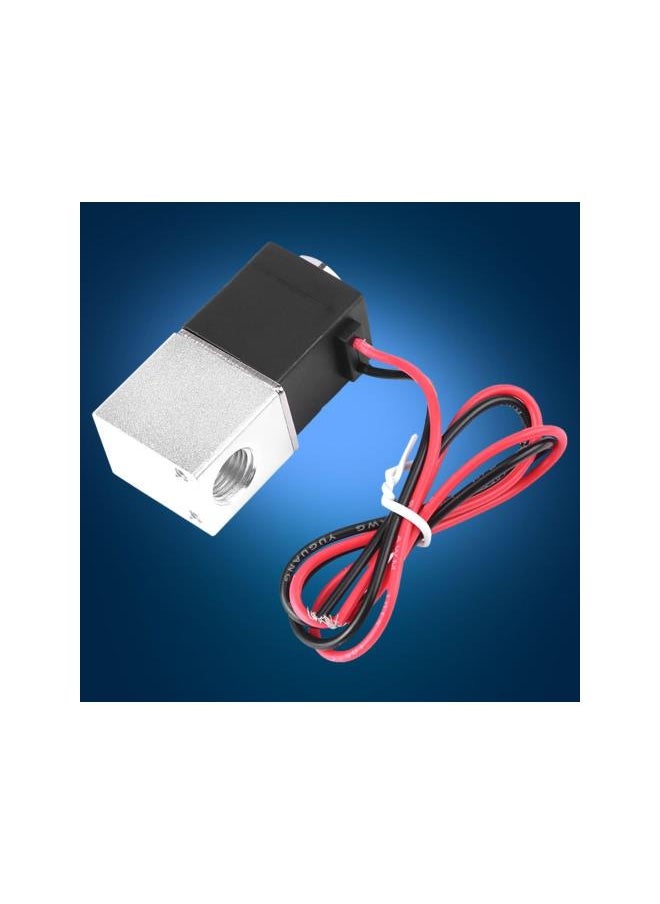

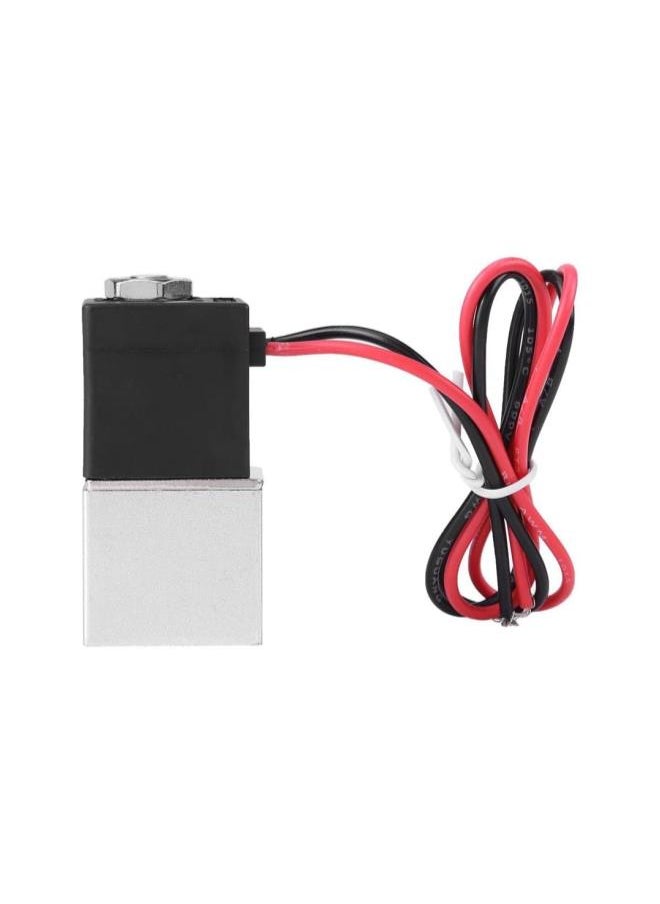

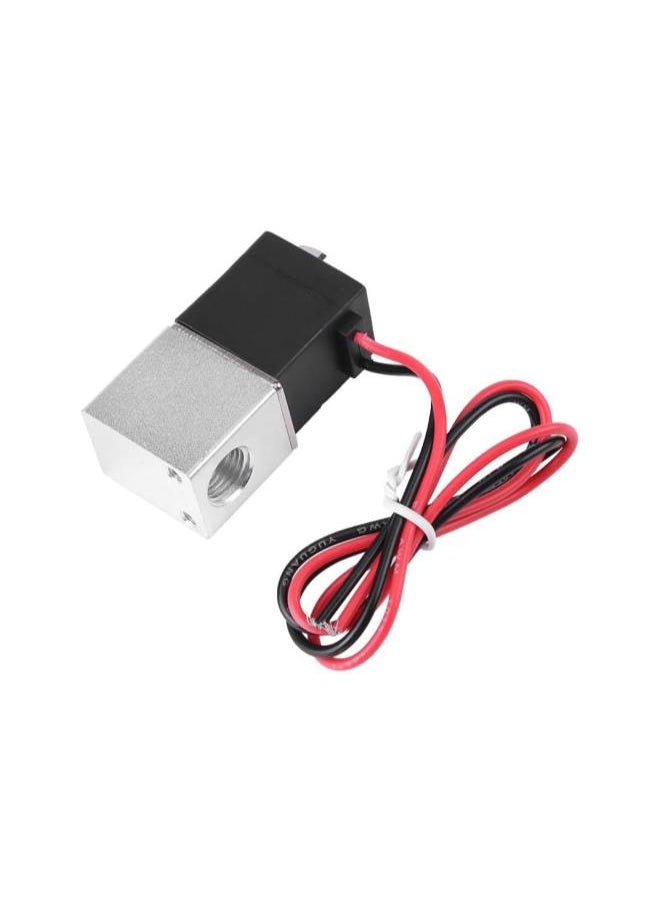

DC 12V Solenoid Air Valve, 1/4inch Aluminum 2 Way Normally Closed Pneumatic Electric Solenoid Valve

Specifications:

Model Number: 2V025-1/4-12VDC
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Port Size: 1/4" NPT Female Port
Coil Voltage: DC12V
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Coil Power: 4W


Material:

Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger andamp; Spring Material: Stainless Steel


Package included:

1 x Solenoid Valve
