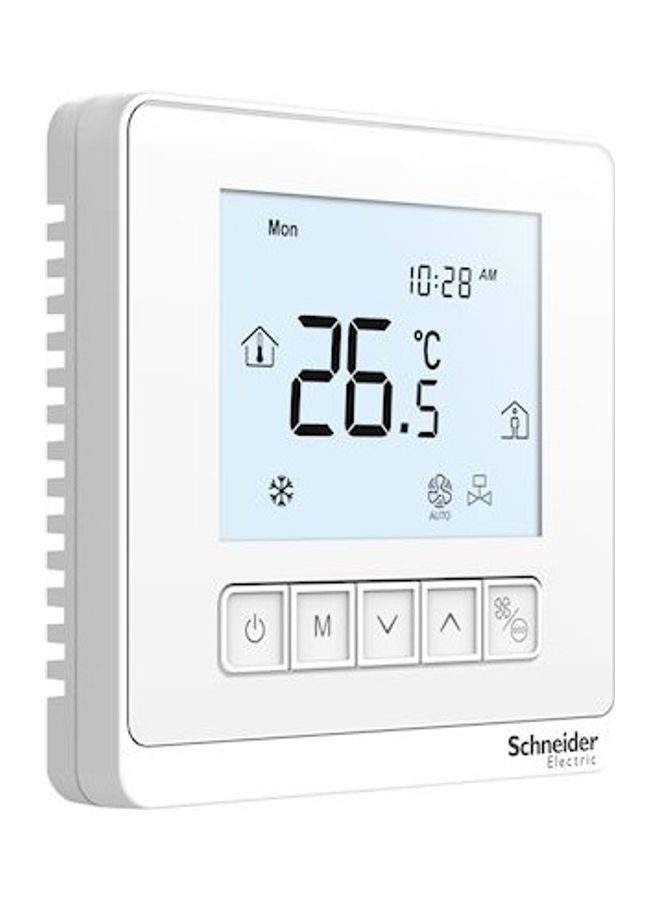

Electric Space Logic Digital Thermostat Fan White/Black

Overview[Us] rated supply voltage: 90...240 V AC 50/60 Hz ambient air temperature for operation: 0…50 °C colour: White "connections - terminals: Screw terminal (back) - 2 cable(s) Screw terminal (back) - 1 cable(s)" control type: mechanical, for thermostat, 2 positions ON-OFF button, for actuator, depth: 40 mm device application: Fan device short name: TC903 display type: Backlit LCD screen function available: Setpoint adjustment, Fan control, Mode selection, Economiser, Disable functions, Alarm, Low temperature protection height: 86 mm housing colour: White information displayed: Ambient room temperature 0 to 50 °C, Time, Day, Temperature alarm, Communication status ok, Current program IP degree of protection: IP20 max power consumption in W: 1 W measurement accuracy: Temperature: +/- 1 °C, network frequency: 50 Hz/60 Hz output voltage: 240 V AC 5 A for relay/ 240 V AC 2 A for load pollution degree: 2 product certifications: CE product name: SpaceLogic TC900 product or component type: Thermostat product specific application: 2-pipe system range: SpaceLogic relative humidity: 5…95 % sensor type: 100 kOhm NTC thermistor temperature setting range: 5…35 °C width: 86 mm
