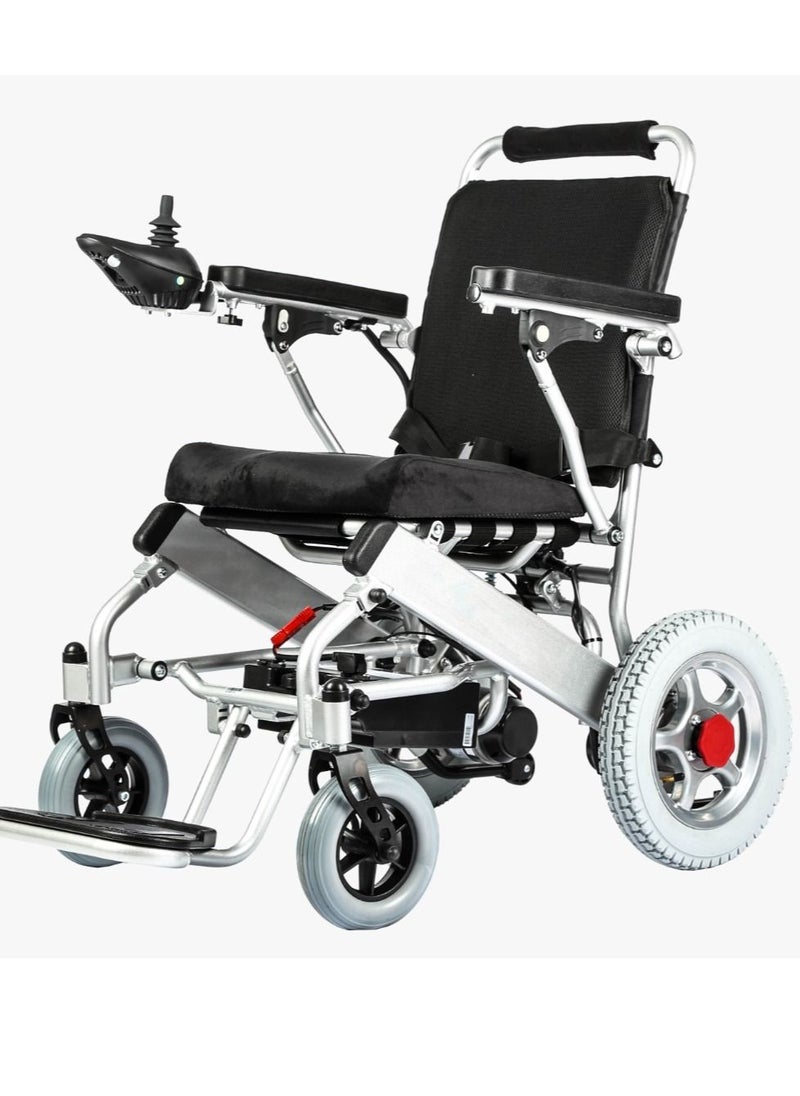

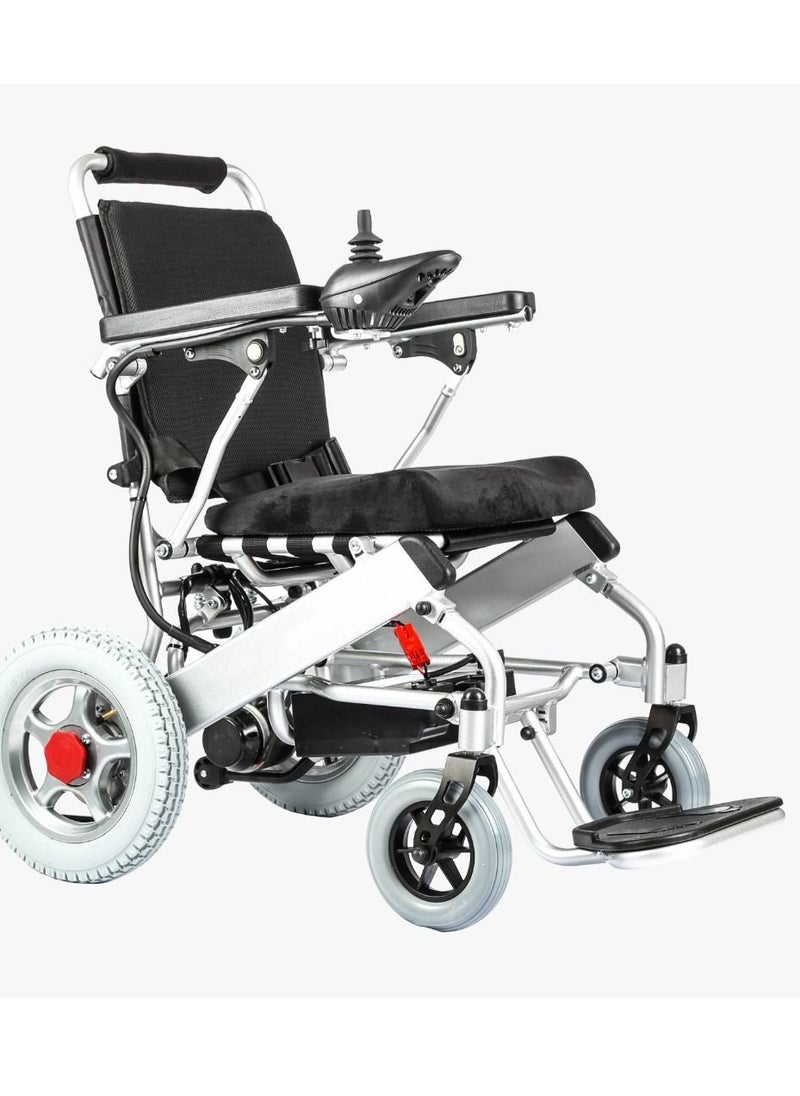

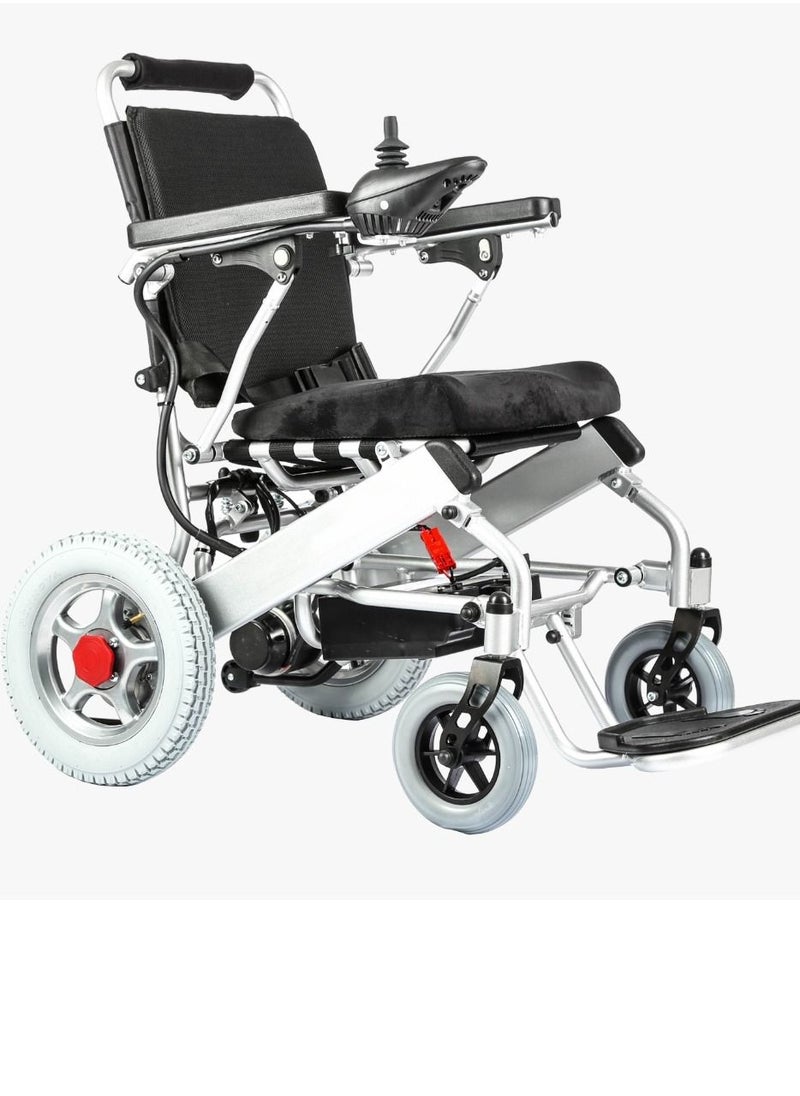

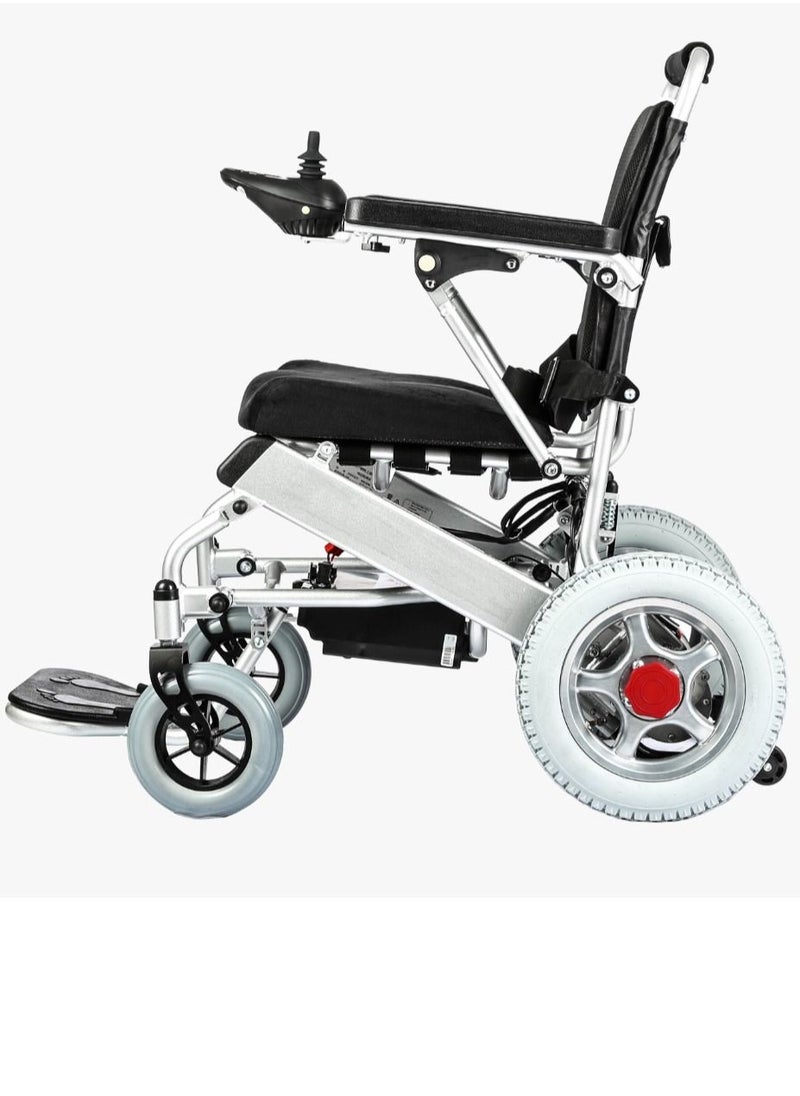

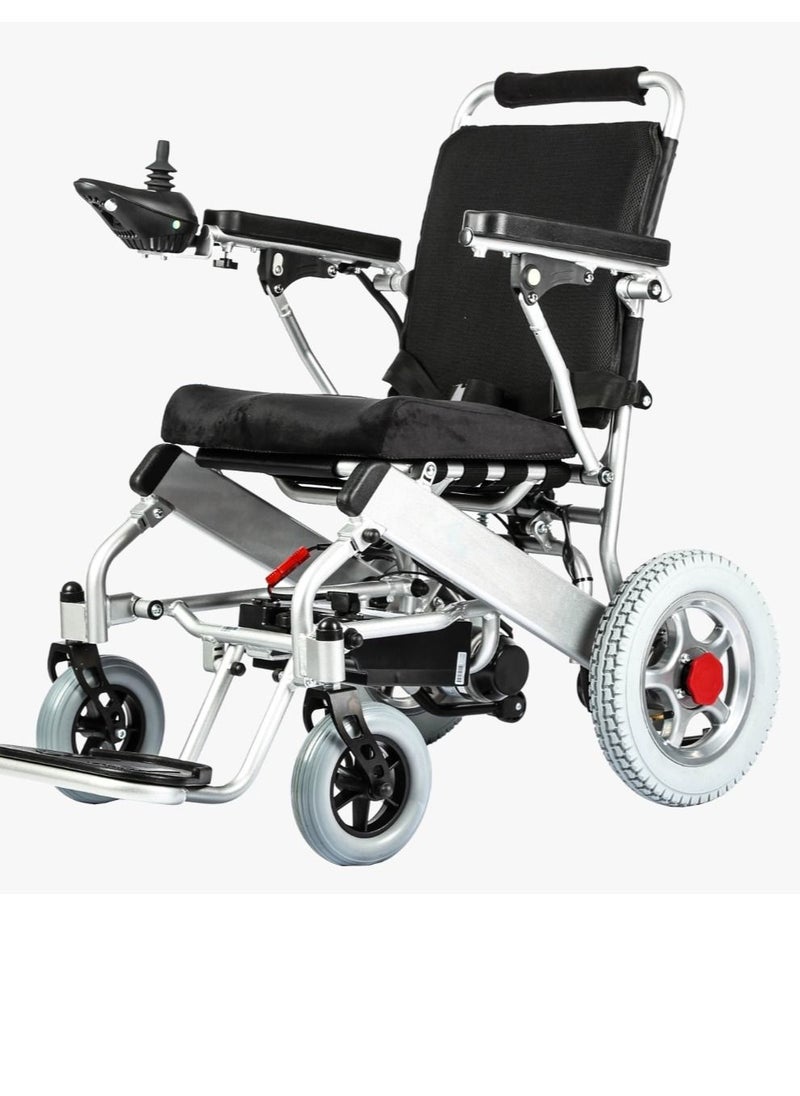

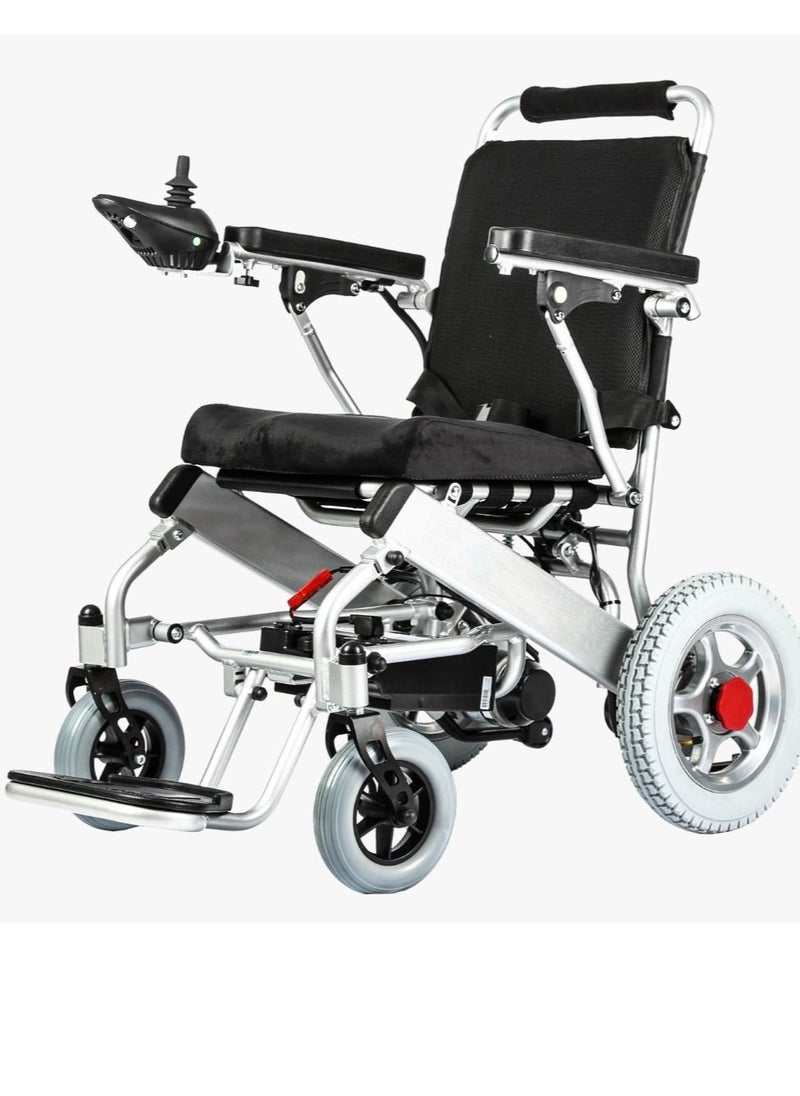

ELECTRIC WHEELCHAIR Battery Li-ion JL155

OverviewProduct Performance This series of electric wheelchairs are powered by Li-ion battery, driven by DC motor. Users control direction and adjust speed by joystick control. It is suitable for application of low speed, good road condition and small slope. Product Information Performance Parameters Main technical data JL155 Overall size 980*600*950mm Folded size 800*600*400mm Seat size 445*460mm N.W. 27/28kg Speed 1~6km/h Seat Height 460mm Armrest height 290mm Backrest height 460mm Max loading weight 100kg Front wheel diameter 8 inch Rear wheel diameter 12 inch Battery DC 24V 12Ah/20AH Li-ion Motor (*2pcs) DC 24V 250W Battery charger AC 100~240V, 50Hz, 1.5~5A Control 50A Max driving distance 20km Degree of protection IPX3 Max safe slope 10° Turning radium ≤1.2m Static stability 9° Reversing width ≤1.5m Climbing angle 6° Tire pressure 2kgf/m² Obstacle climbing 50mm Application Range Our electric wheelchair is for disabled and elderly people (less than 100kg) using as walking vehicle, suitable for indoor use. Do not run on the motorways.
