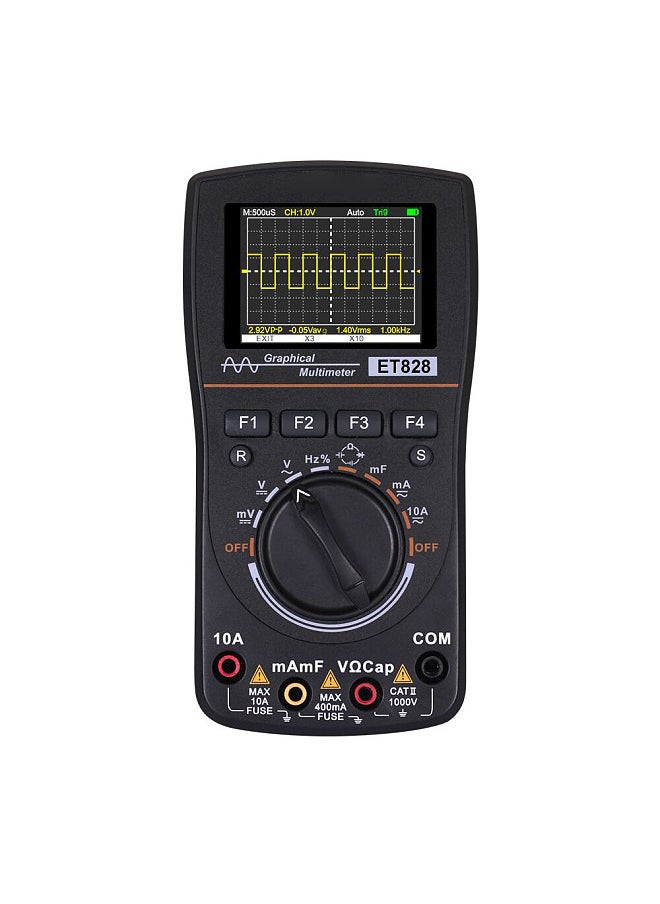

ET828 Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate

OverviewSpecifications: Material: ABS Color: black Display: 320*240 LCM Display area: about 2.4 inches Backlit: white Input resistance: 10MΩ Battery: 3 * AA battery (not included) Power consumption: about 80mA Use time: low light about 5 hours Storage: 100 data/10 waveforms Use environment: 0~40℃, ＜75%RH Storage environment: -10~60℃, ＜90%RH Bandwidth: ACV/1MHz ACA/5KHz Max. real-time sampling rate: 2.5Msps Multimeter measurement: automatic range + manual range Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude Measurement mode: normal, automatic Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in Item weight: 195g / 6.9ounce Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in Package weight: 370g / 13.1ounce Multimeter specification: DC voltage: Range: 400mV/4V/40V/400V/1000V Uncertainty: 0.75% rdg+10dgt AC voltage: Range: 400mV/4V/40V/400V/750V Uncertainty: 1.0% rdg+10dgt DC current: Range: 40mA/400mA/4A/10A Uncertainty: 1.2% rdg+10dgt AC current: Range: 40mA/400mA/4A/10A Uncertainty: 1.5% rdg+10dgt Resistance: Range: 400.0Ω~40.00MΩ Uncertainty: 1.0% rdg+5dgt Capacitance: Range: 0.1nF~100, 10.00mF Uncertainty: 2.0% rdg+10dgt Frequency: Range: 5Hz~10MHz Uncertainty: 1.0% rdg+5dgt Duty cycle: Range: 0.1%~99.9% Uncertainty: 1.0% rdg+5dgt Diode test: voltage is about 5V, test current is about 1.5mA Continuity test: judgment resistance about:＜50Ω beep Fuse specifications: 500mA/250V, 10A/250V
