Ezcap 170 USB 2.0 Xbox Ps3 VHS Hi8 Mini DV Video Capture Card

Product description

Ezcap 170 USB 2.0 Xbox PS3 VHS Hi8 Mini DV Video Capture Card

• Licensed Arcsoft® ShowBiz Professional Video Software

• Provides Full Performance with 3 Chipsets Compared to Single Chip Equivalents

• Full Screen Preview Feature of Video Programs

• Post-Installation Plug & Run Support

• Apple TV, iPod, iPod Touch Video Transfer

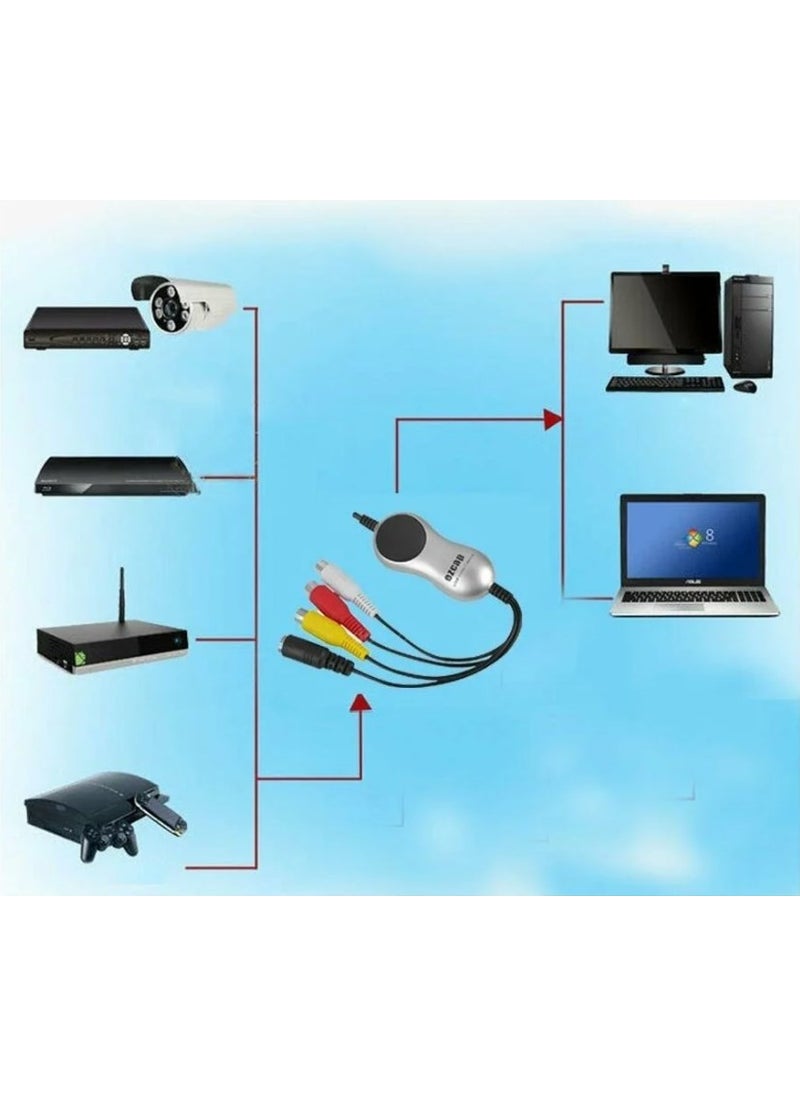

• Video Transfer to TV, Camera, DVD/VHS, Game Console

• PSP, Playstation 3, XBOX Video Transfer

• Video Recording via Mobile Phones

• HD Video Input Support

• Supports All Picture and Sound Files

• The Power of the USB 2.0 Interface is sufficient for the device to work.

• Captures both Video and Audio over USB 2.0 interface

• Brightness, Contrast, Hue and Saturation control

• Easy to Carry, Compact Design

• Can capture audio without sound card

• Supports recording to DVD +/- R / RW, DVD +/- VR and DVD-Video.

• Suitable for Internet conferences and Netmeeting meetings.

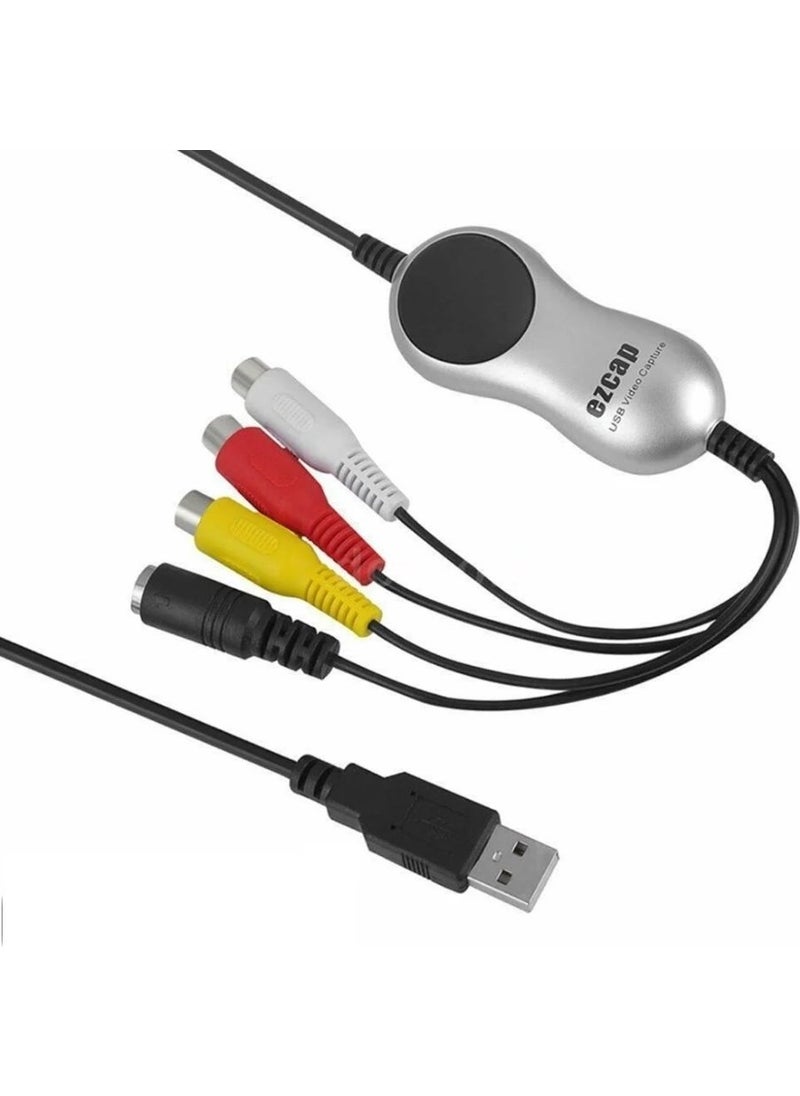

• 1*USB 2.0 Input

• 1* S-Video

• 1*RCA Composite Video+Audio,

• PAL & NTSC Support

• HD 720p Support

• One-Click Registration with the help of the button on it


Starting and Stopping

Ezcap 170 USB 2.0 Video Recorder can capture high-quality video and audio file directly via USB 2.0 interface without a sound card. However, its installation is quite simple and does not require any external power.

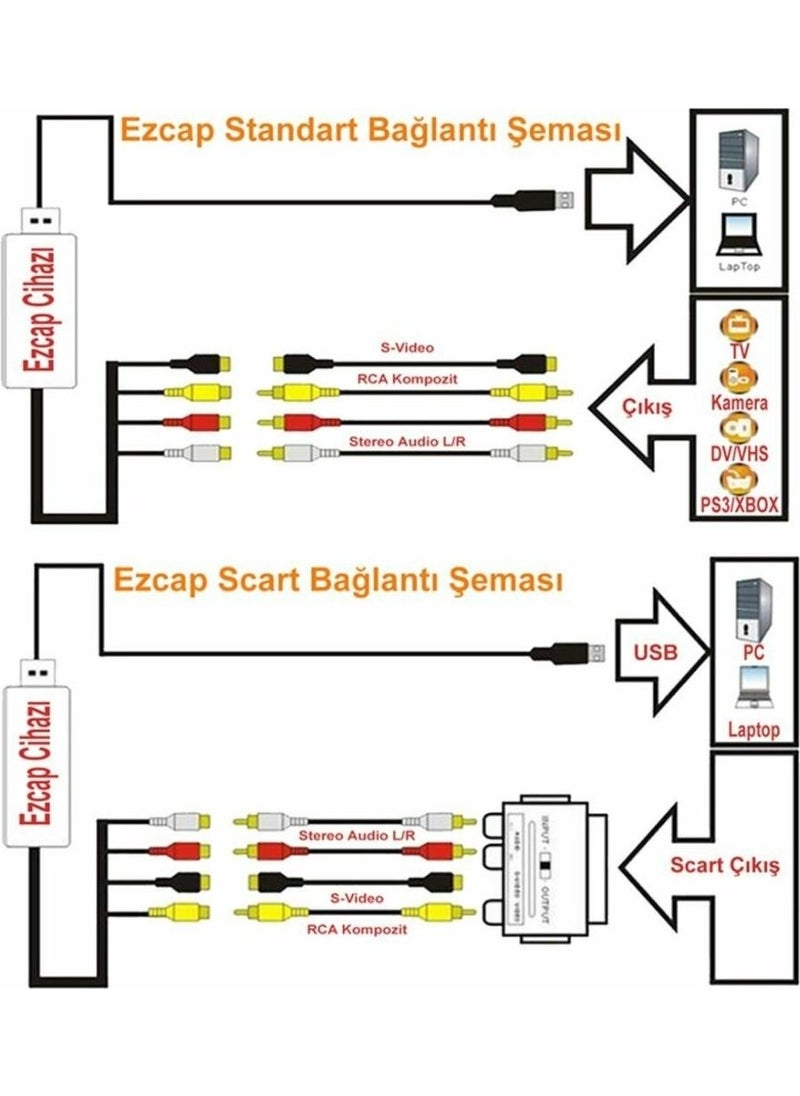

It is especially advantageous in transferring recordings from old generation devices with VHS, AV, RCS connections to laptops. It works with full interaction with many professional video editing software, especially Arcsoft® ShowBiz and Honestech®. It allows you to share completed projects on DVD, CD and mobile devices.


It reduces waiting time with high-speed rendering and real-time performance.



System requirements :

• Pentium IV 1.7 GHZ and Higher Processor

• 512 MB and Above Ram

• At least 32 MB Graphics Card

• USB 2.0 Port

• Windows 64 Bit Support

• Microsoft Windows 10/ 8 / 7 / Vista / XP Operating System Support



Box contents :

• Ezcap 170 USB 2.0 Video Recorder

• Licensed Arcsoft® ShowBiz Video Editor Software (License Number is on the CD Envelope)

• User's manual



Points to Consider in Ezcap 170 Installation:

• Ezcap 170 capture device gets its power from the USB connection interface. Therefore, in order to capture recordings, especially from devices powered by its own battery, the USB interface must be at full power, in other words, if a laptop is used, the power saving mode must be turned off.


• All Windows 7/8/10 64 Bit drivers use the same driver. It can be installed by updating the driver from the 64 Bit folder in the CD. After checking in the device manager that the drivers are completely installed, the software installation should be started.


• If there is a device error despite the device driver being installed, there may be an incorrect installation and should be checked again.


• The blue screen warning about recording occurs when the image cannot be received from the source device. In this case, it should be checked that the video output settings of the device to be recorded are made correctly and that the cables or converters are connected smoothly and correctly.


• Arcsoft ® ShowBiz program is a professional video capture and editor program that comes free of charge with the Ezcap 170 device. The program license is on the CD envelope.

Product information

Product Images
