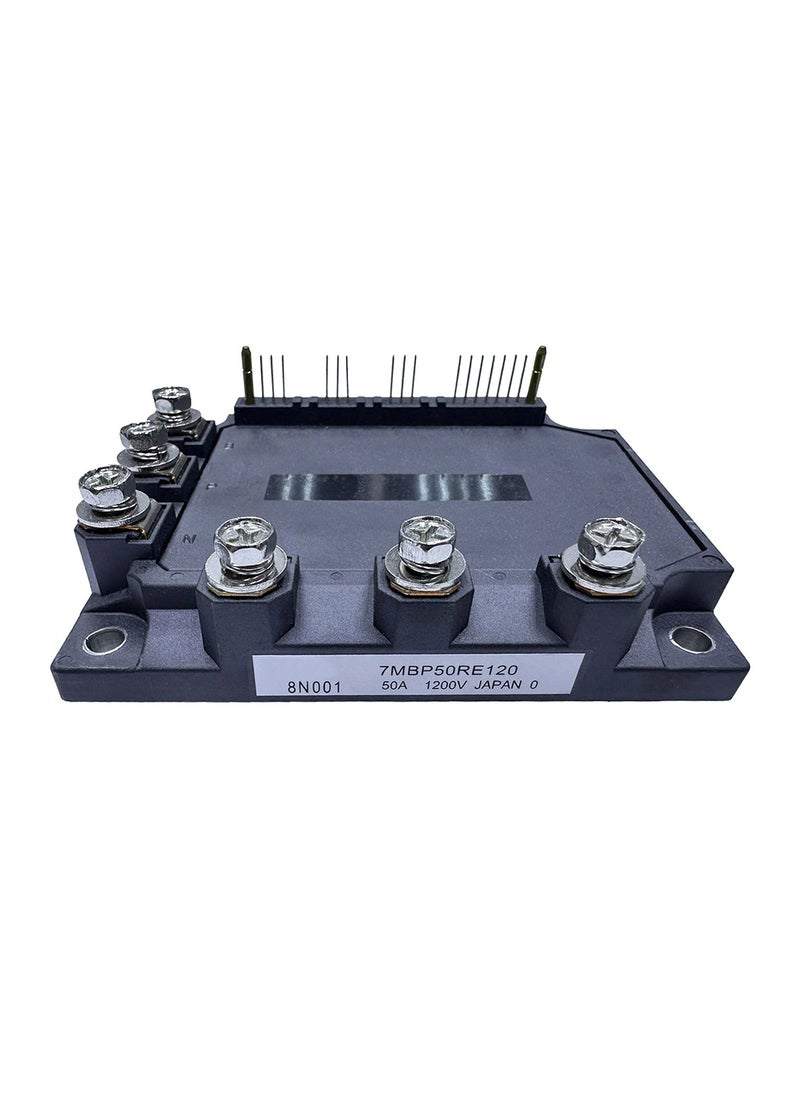

Fuji IGBT-IPM Module - 7MBP50RE120

OverviewAn IPM incorporates a control IC that has an IGBT drive circuit and a protection circuit, so it is easy to design peripheral circuits and can secure high system reliability. Suitable for applications such as AC servo, air conditioning equipment and elevators. There are small-capacity IPM in a 15 A to 30 A/600 V series, and the V-IPM, which cover capacities up to 400 A/600 V and 200 A/1200 V. Overcurrent protection, short circuit protection, control power supply voltage drop protection and overheat protection are built in and an alarm signal is output.
