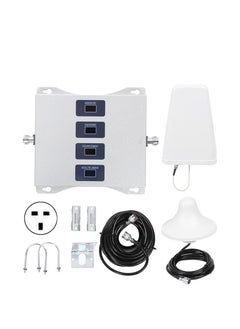

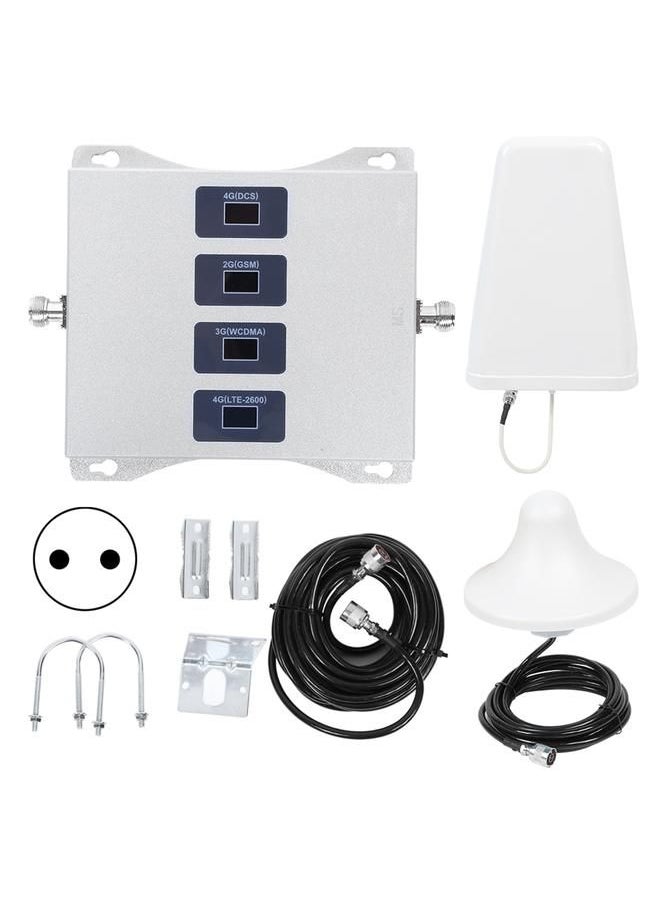

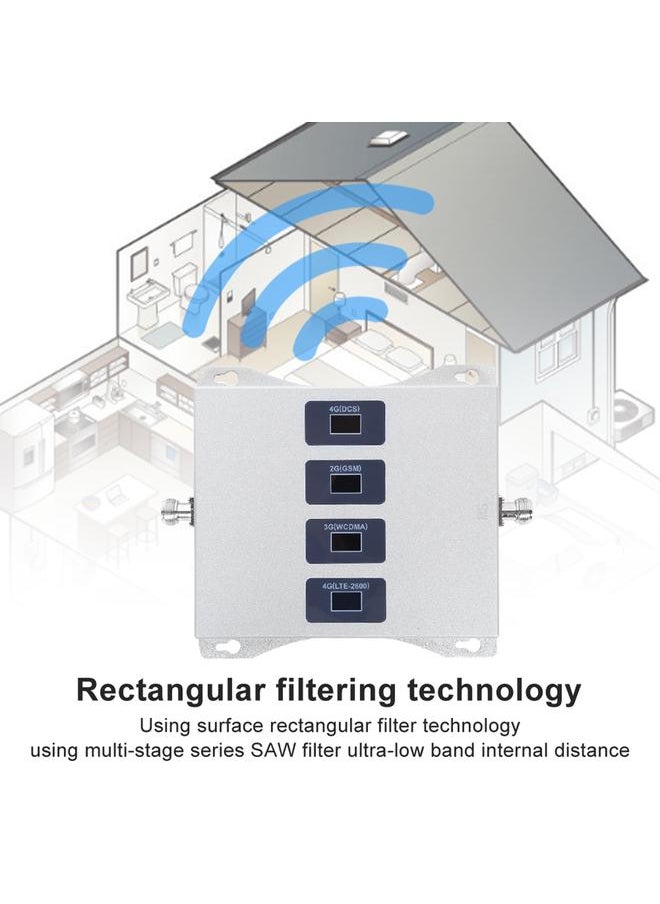

GSM 900/DCS 1800/3G 2100/4G 2600MHZ 4 Band Mobile Phone Signal Amplifier Booster With Antenna Kit 100‑240VEU Plug

Item Type: Mobile Phone Signal Repeater

Material: Aluminum

Parameters:

Working Frequency

GSM900: Uplink 890-915Mhz Downlink 935-960Mhz

DCS1800: Uplink 1710-1785Mhz Downlink 1805-1880Mhz

3G2100: Uplink 1920-1980Mhz Downlink 2110-2180Mhz

4G2600: Uplink 2500-2570MhzDownlink 2620-2690Mhz

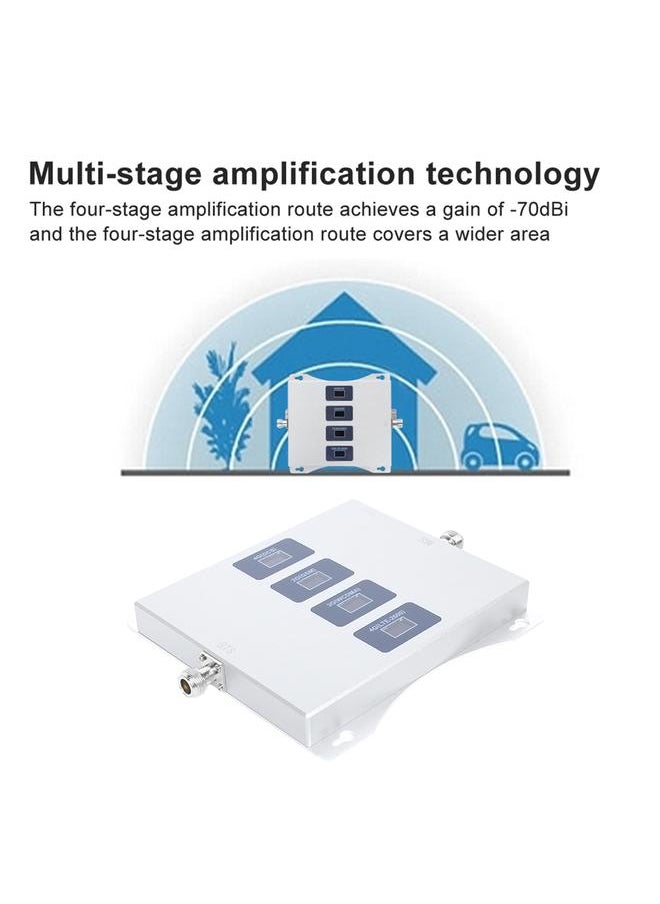

Gain (dB): Uplink Gp≥70 Downlink Gp≥75

Output Power (Po): ≥20dBm±3

Flatness: ≤3dB

Noise Figure: ≤5dB

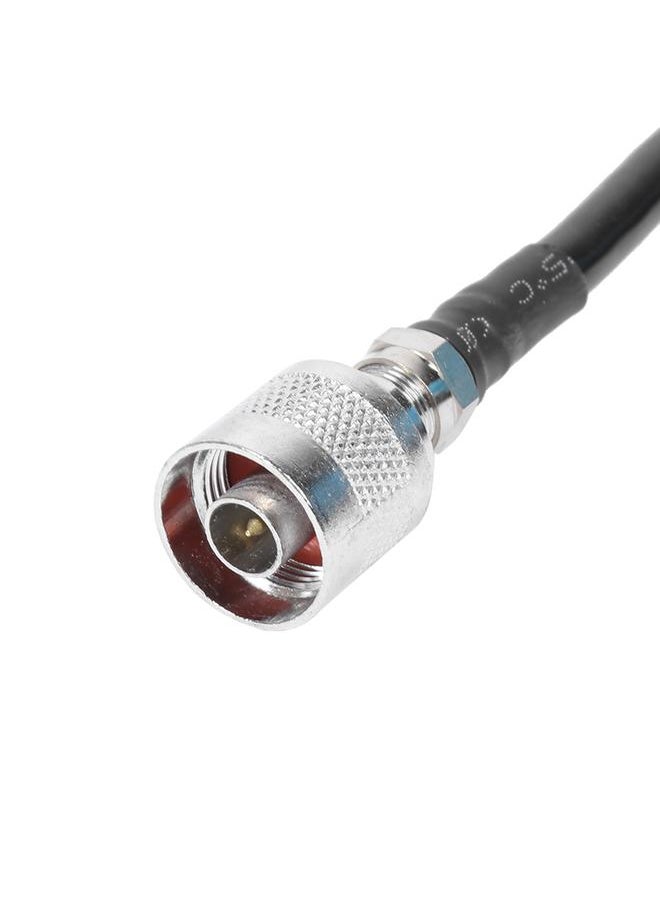

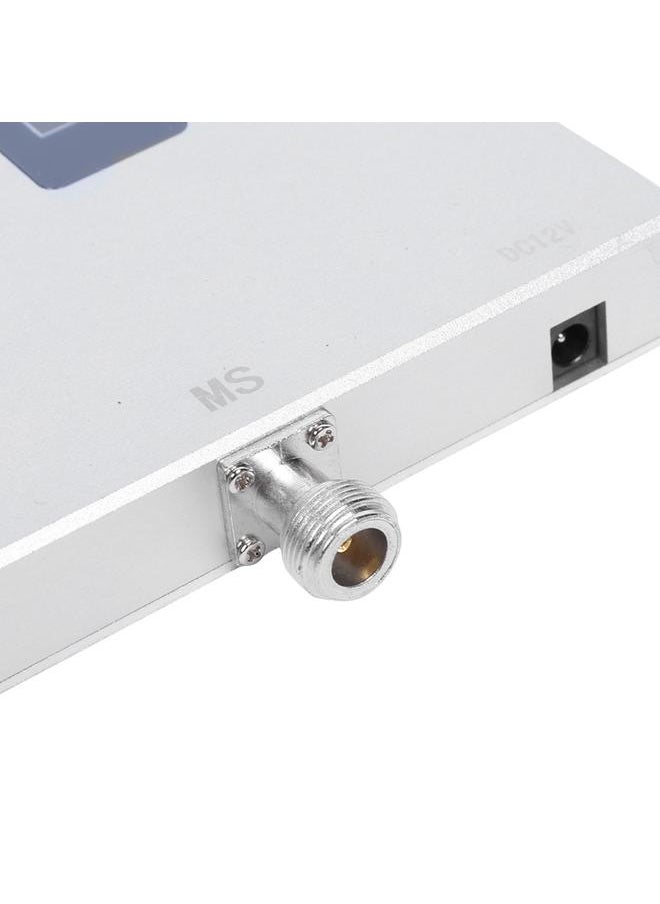

Connector Type: N-female

Transmission Delay: ≤0.5μs

Ambient Temperature: -10℃-60℃

Operating Voltage: AC110-240V 50HZ-60HZ

EMC: ETSI EN 301 489-1 V1.9.2 ETSI EN 301 489-8 V1.2.1

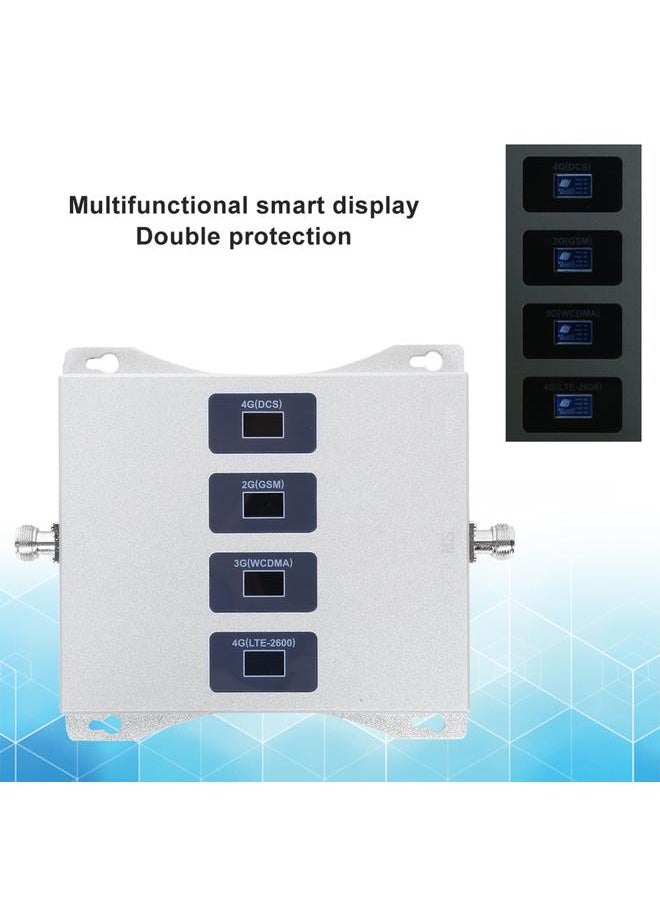

Function Indication: Multi-Function LCD Display

Covered Area: Approx. 100-1000m²

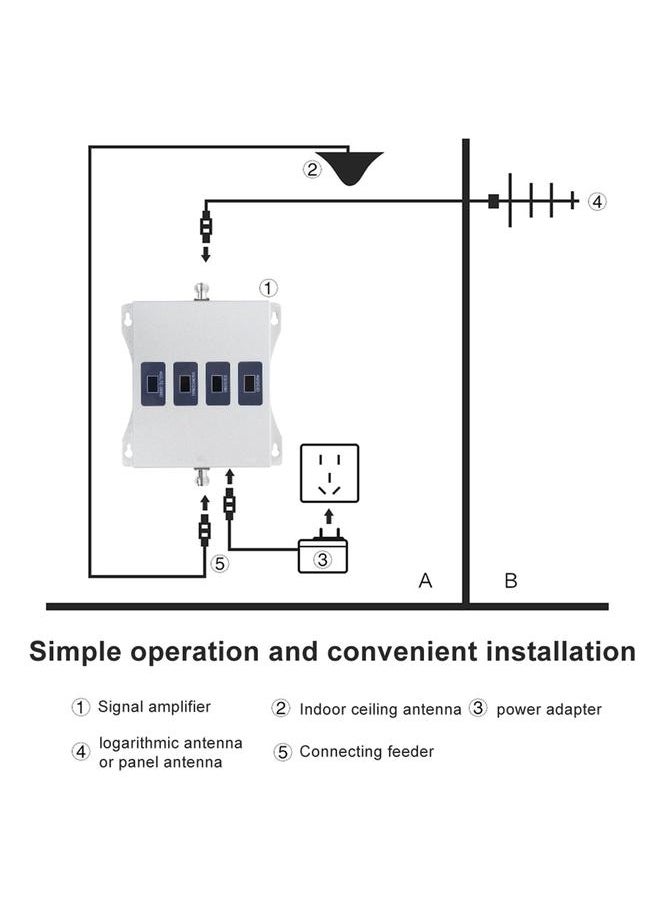

Outdoor Logarithmic Antenna:

Operating Frequency: 800-2700MHz

Gain (dB) Uplink 9DBi Impedance 50Ω/N

Environment Temperature: -10℃-60℃

Maximum Power: 50W

Connector Type: N-female

Standing Wave Ratio: 1:1.5

Indoor Ceiling Antenna:

Working Frequency: 800-2700MHz

Gain (dB) Uplink 3-5DBi

Impedance 50Ω/N

Environment Temperature -10℃-60℃

Maximum Power: 50W

Connector Type N-J

Standing Wave Ratio 1:1.5

Length of Connecting Feeder: Approx.10m / 33ft

Input Voltage: 100-240V 50-60Hz

Output: 12V DC 2A

Speed: According to the Base Station Speed

💡 Note: Please make sure to read and understand the installation methods, system debugging, troubleshooting tips and safety warnings in the product manual in detail before using this product.

Common Problem:

1. How to deal with no effect after installation

A. First confirm that there is a mobile phone signal at the outdoor antenna end, and get (-50dm or more, whether the signal indicator scale is full

B. Make sure that the amplifier, antenna and other related accessories are selected correctly

c. Confirm that all lines, distributors, antennas, and amplifiers are connected correctly

2. After installation, the signal is improved, but no calls can be made

A. Confirm that the outdoor antenna is aligned with the base station

B. Confirm that the communication distance between the outdoor antenna and the base station is within 5 kilometers.

C. Confirm that the line between the outdoor antenna and the amplifier is not more than 40 meters, not more than 20 meters is more appropriate, and not less than 10

3. The call quality is not good

A. Change the installation position and direction of the outdoor antenna.

B. Change the direction of the signal transmission line from the outdoor antenna to the amplifier (take the straightest and nearest line, don't turn too much, don't turn at a right angle of 90 degrees).

C. Confirm whether the line from the outdoor antenna to the amplifier uses 50/70 ohm coaxial cable above 50

D. Confirm whether the distance between the outdoor antenna and the indoor antenna is too close (too close will cause self excitation), try to be more than 20 meters away, it is best to have wall, floors and other objects away from each other to prevent the signal emitted by the indoor amplifier from being affected by the indoor antenna Receive forming loop amplification (self excitation)

4. Sometimes there is no signal

A. This situation is caused by the self excitation of the amplifier

B. Treatment method is to confirm that the input and output
connectors are correct and the shielding is good.

C. Confirm that the distance between the indoor antenna and the outdoor antenna is more than 12 meters, and it is best to separate the indoor and outdoor antennas with a wall

5. The mobile phone shows the signal is full and the solution cannot be made

A. This situation is c
