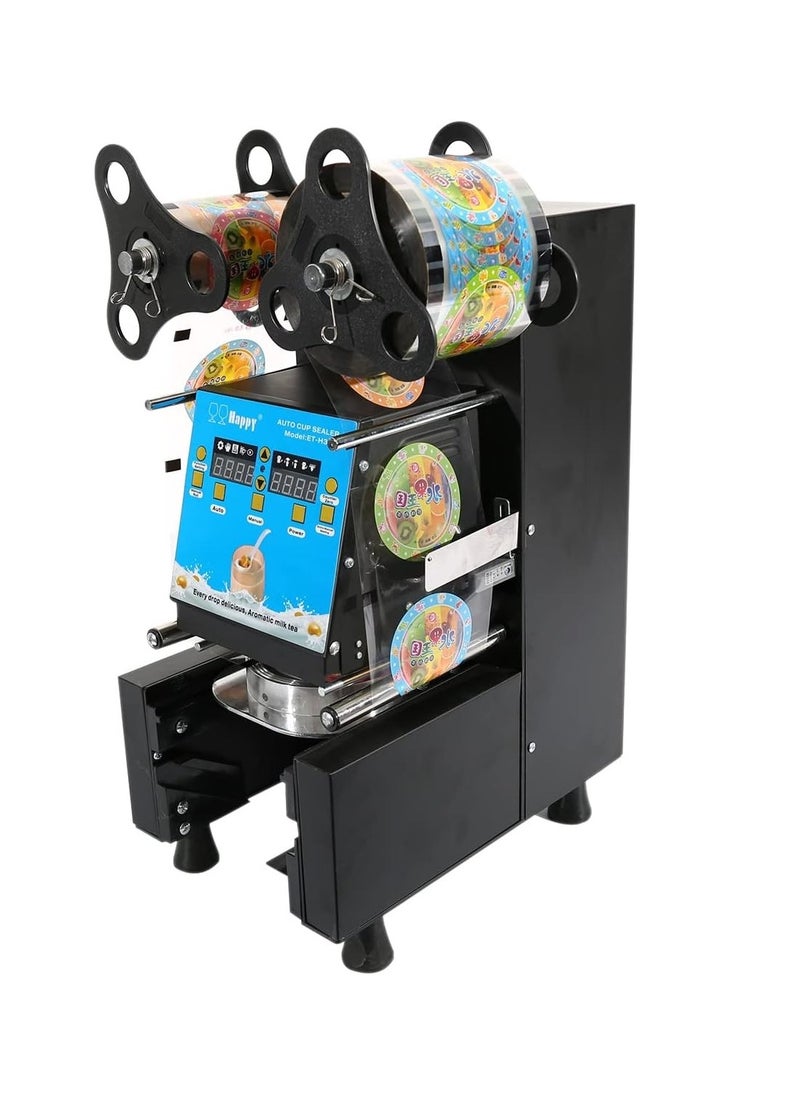

LETWOO Cup Sealing Machine Full Automatic Cup Sealer 95/90/75mm Diameter & Seals Cups up to 20cm Sealing Machine 300-500 Cups/H Digital Control LCD Panel Cup Sealer for Juices Milk Tea Coffee (Black)

Overview
Name: LETWOO Sealing Machine

Brands: LETWOO

Model: ET-H3

Size: 25 X 37.5 X 56.5cm

Power: 220V

Frequency: 50Hz

Power: 360W

Out put: 300~500cup/h

Installing film:

1. Get the film to be confirmed film winding direction, counterclockwise to identify, and put the rod fixed film. (Turn off the power when wearing film).

2. Note whether the film around the splints and film closely, if you cannot closely integrated utility knife will need to use film paper tube inside of the bevel cut again into.

3. After the film put the film firmly with tape posted on the receipt paper tube.

Sealing procedures (panel operating instructions):

1. Power, turn the power switch, indicator lights, the thermostat is set to a predetermined temperature, when the green heating indicator light. When the hot plate reaches a predetermined temperature, the red indicator light is constant (sealing machine at work, electric heating and insulation means constantly alternating states, so green and red lights are constantly alternating, this is normal).

2. The plastic cups were placed in the lower mold slide, slide his hands pushed into the die to determine the location, after touching the limit switch, the module automatically after receiving the signal under the pressure seal, reset automatically rise, touched on travel switch on mold motor stops. film motor begins to turn, turned a predetermined length film by electric eye controlling the motor stops automatically.

3. After the film must be the motor rotation, only pulled lower mold slide the plastic cup into the lower mold slide pushed into the next cycle begins.

Precautions:
1, take a good ground to ensure safe use of electricity.

2, when the machine fails, you should turn off the power, resume normal temperature before troubleshooting.
