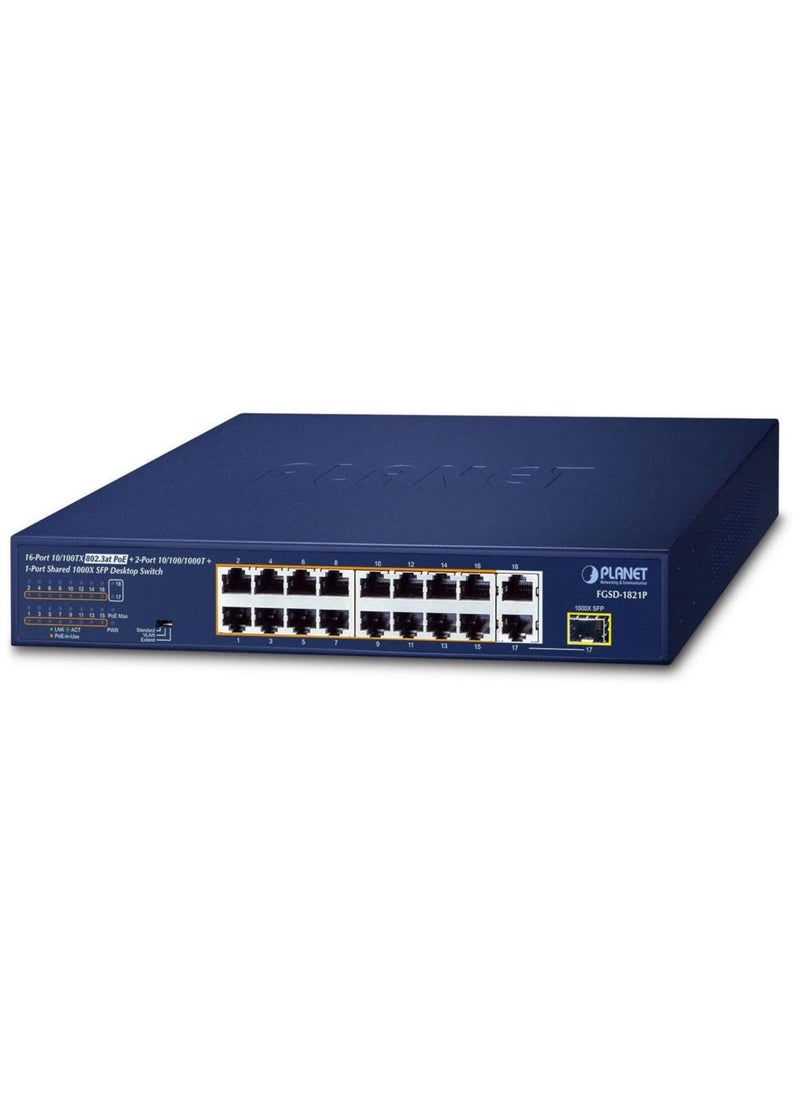

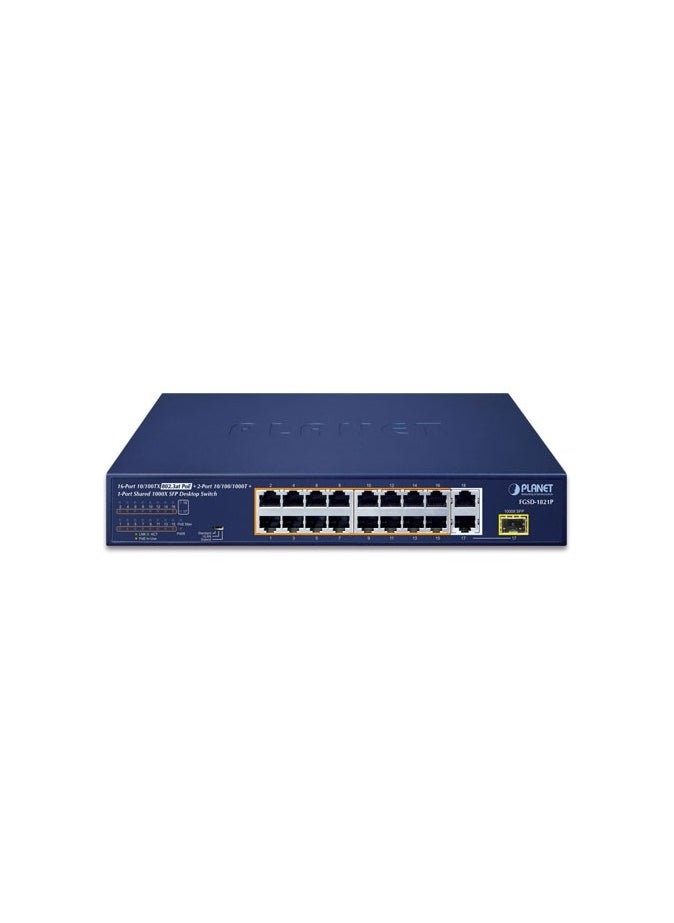

Planet FGSD-1821P 16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
Sorry! This product is not available.
1
Available Soon
Highlights
- 16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector function (ports 1~16)
- 2 10/100/1000BASE-T Gigabit RJ45 ports interfaces (ports 17~18)
- 1 1000BASE-X SFP interface (port 17)
- Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE

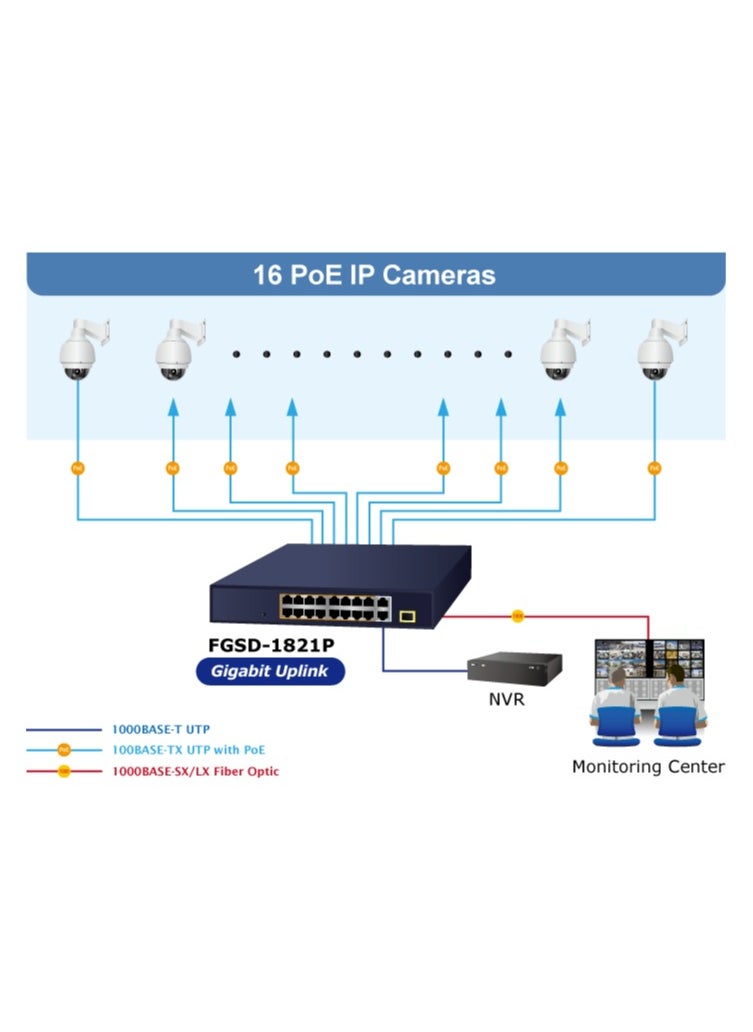

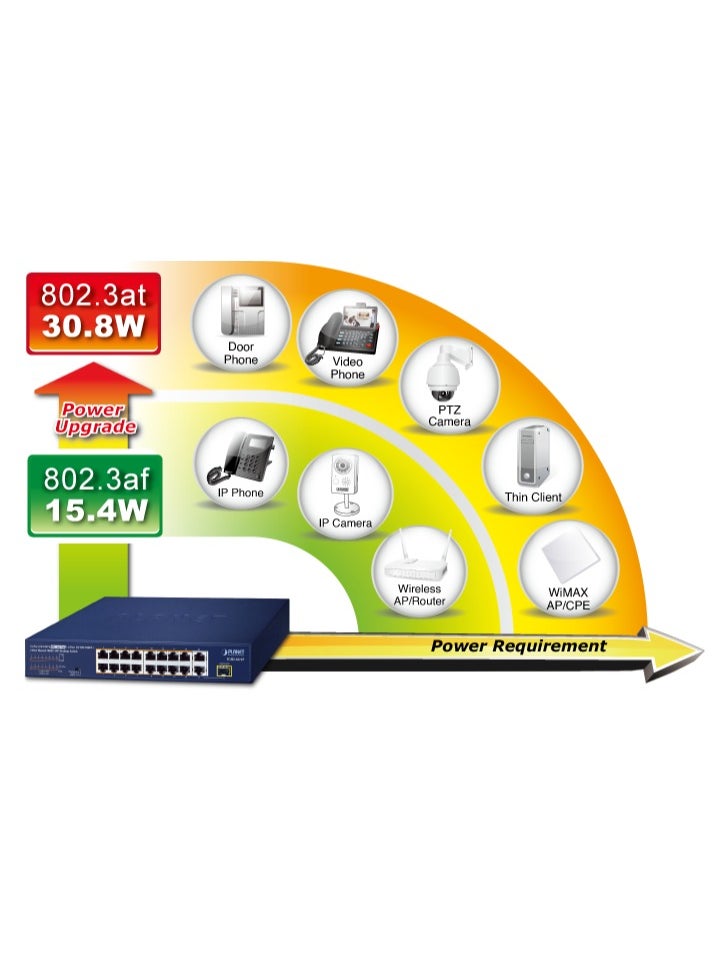

- Up to 16 ports of IEEE 802.3af/802.3at devices powered (ports 1~16)
- Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 185W
- Each port supports 55 DC power to PoE powered device
- Auto detects powered device (PD) and Supports PD alive function
- Circuit protection prevents power interference between ports

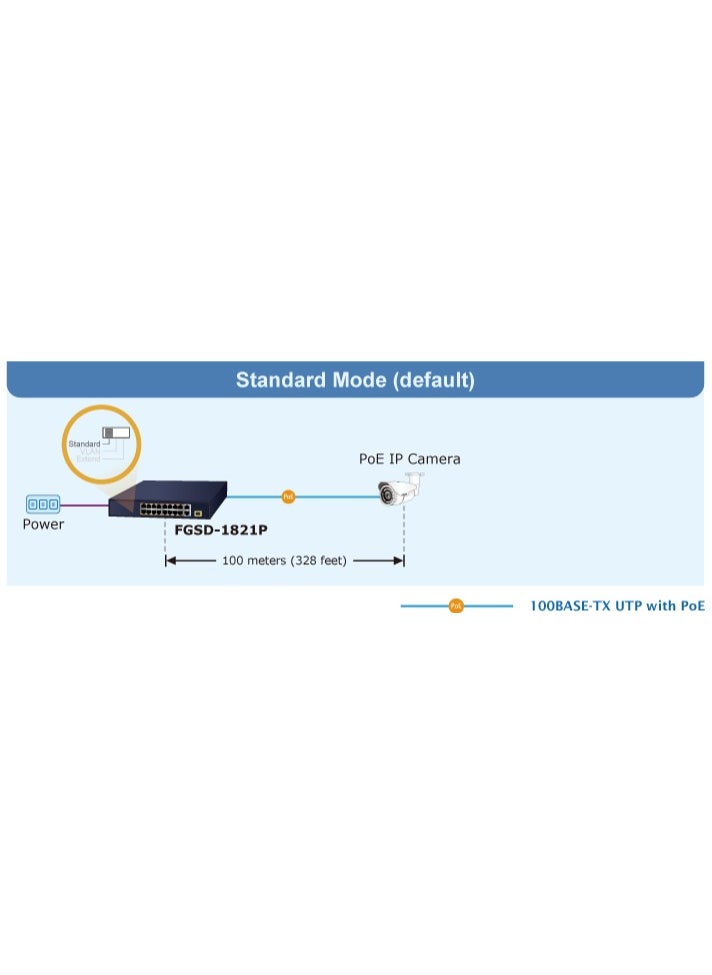

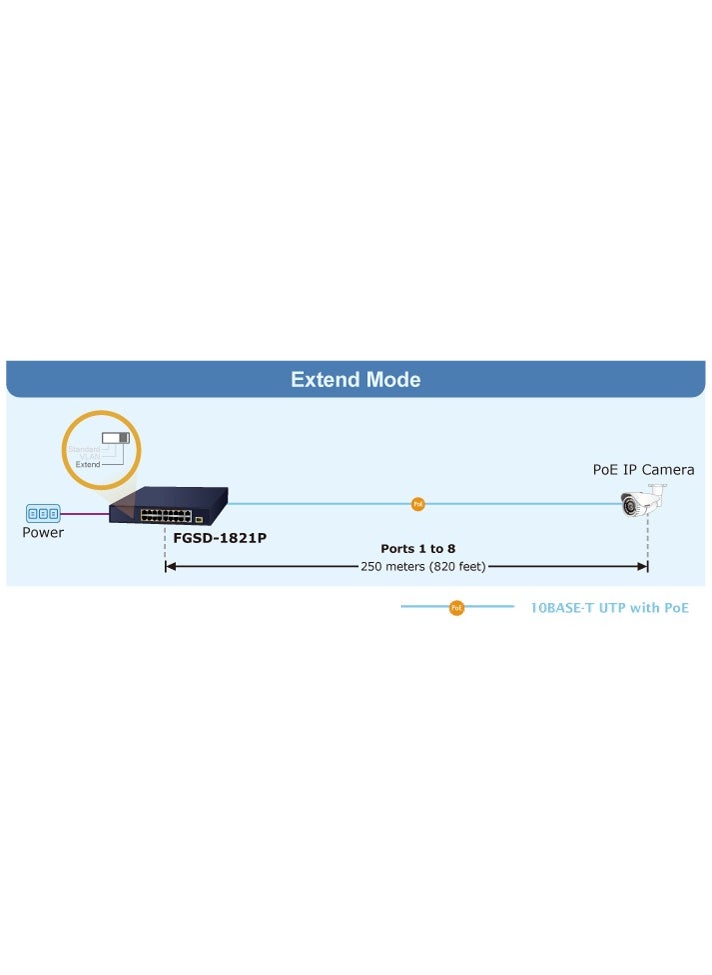

- Remote power feeding up to 100m in standard mode with 250m in extend mode
- Hardware-based 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Supports IEEE802.3x flow control in full-duplex mode and backpressure in half-duplex mode
Specifications
| Product Weight | 1800 g |
| Product Length | 280 mm |
| Product Height | 44 mm |
| Product Width/Depth | 180 mm |
| Number of Ports | 16 |
| Model Number | FGSD-1821P |
| Model Name | Planet 16-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts) |
