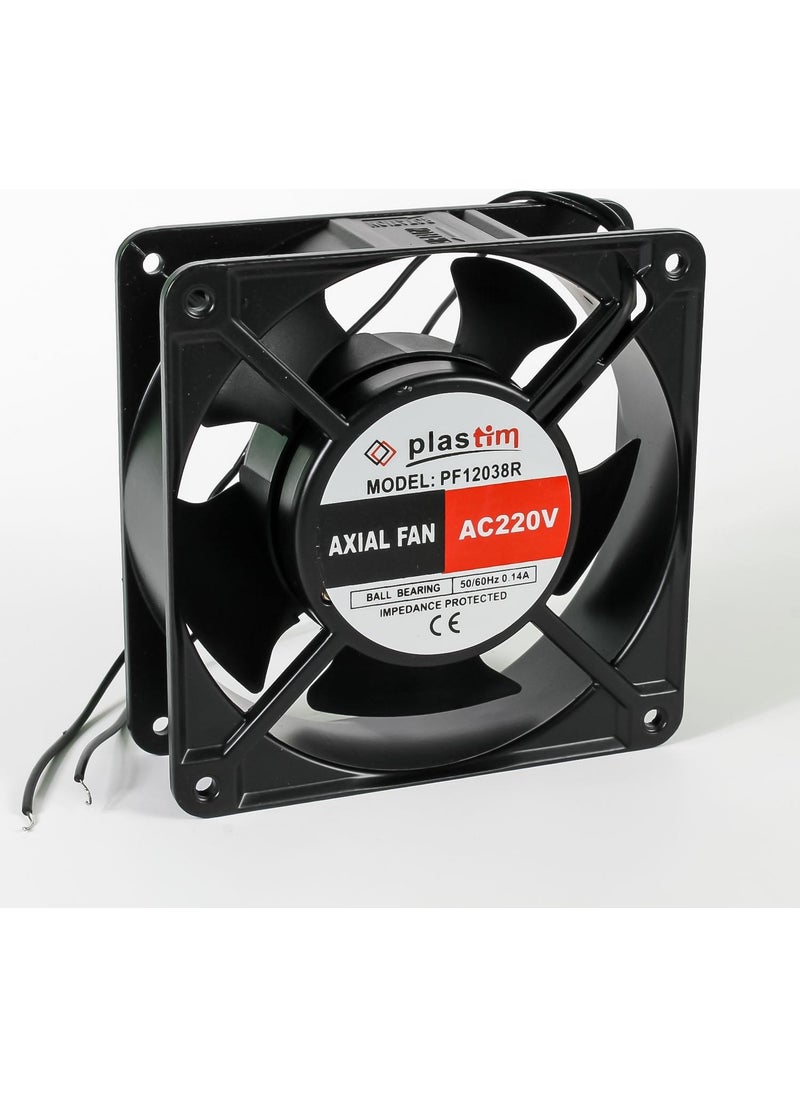

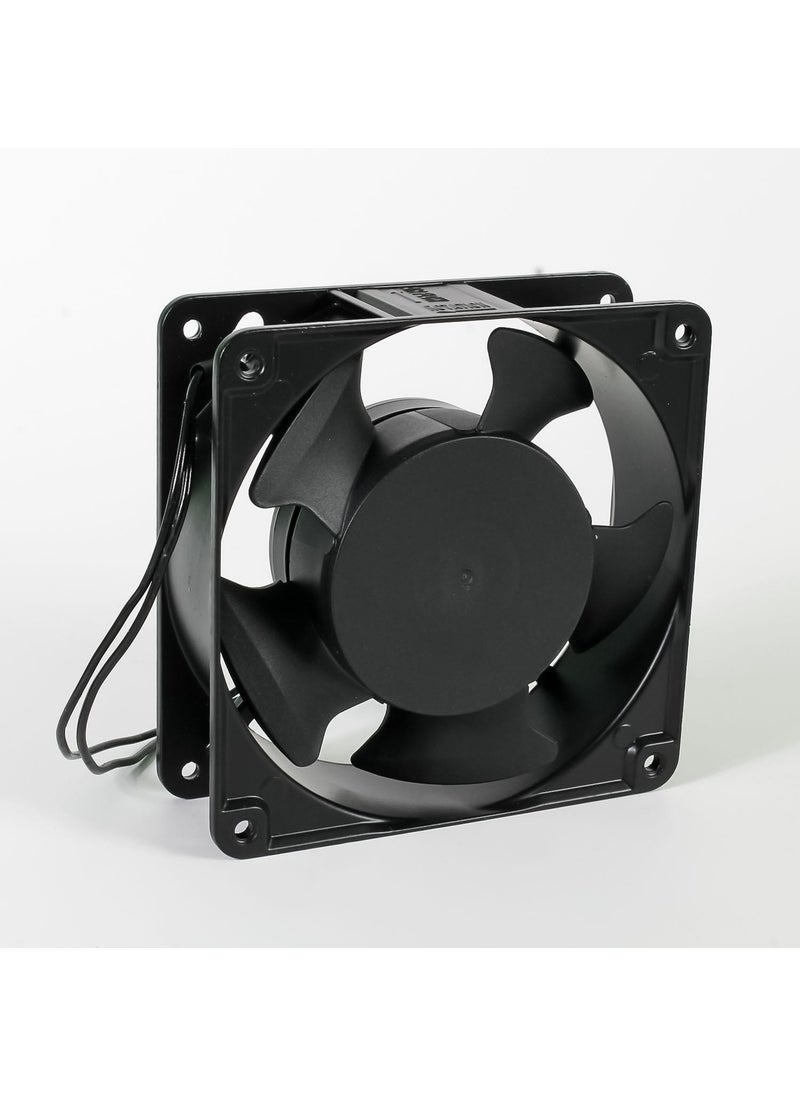

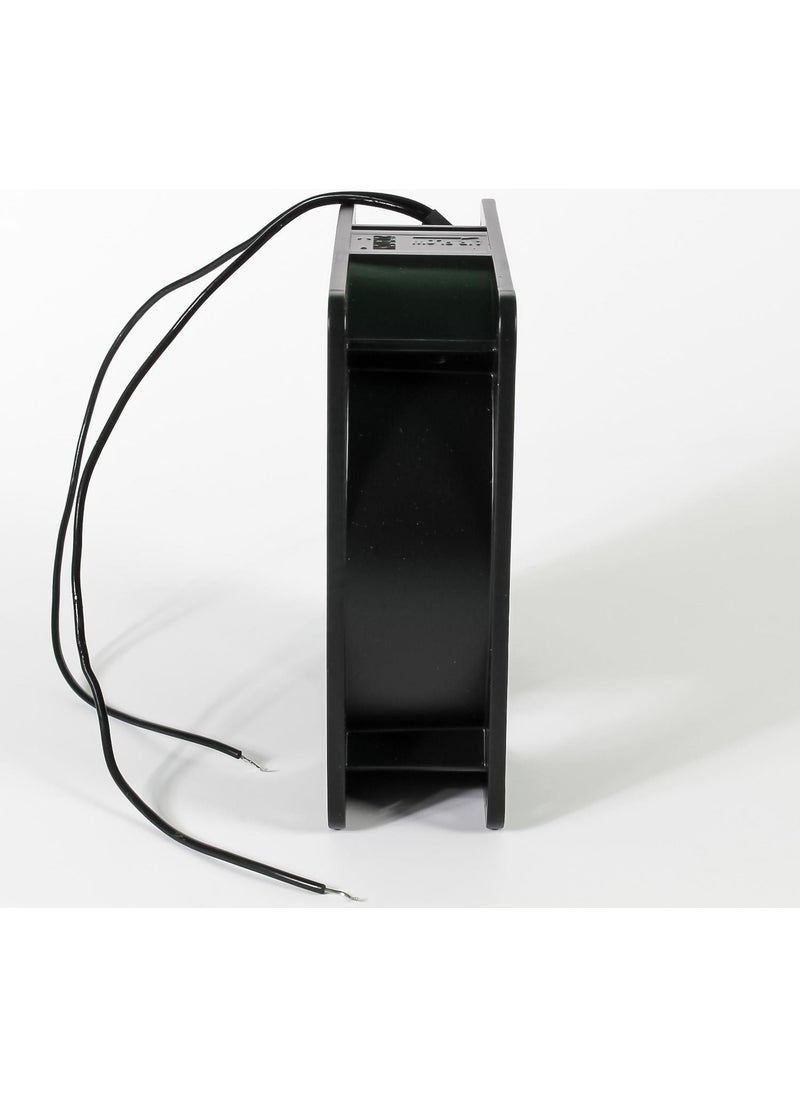

PLASTİM 220V Ac – 120X120X38 Mm Bearing Axial Fan

PLASTİM 220V AC – 120X120X38 MM Bearing Axial Fan

Technicial Specifications

• 220V AC Working Voltage,
• 50/60 Hz. Frequency range,
• Capacitive Induction External Rotor Motor Type,
• Aluminum Die Casting Frame Material,
• PBT Thermoplastic Fan Impeller Material,
• Axial Fan Model,
• Ring Type Bearing,
• 0.14/0.13 A Working Current,
• 26/23 W Power Consumption,
• 2,700 Rpm Fan Speed,
• 153/170 mm³/h Fan Air Flow,
• 42/46 dB (A) Noise (Sound) Level,
• Class B / Class F Insulation Value,
• Impedance Safety Protection,
• (-20C to +80C) Working Ambient Temperature,
• 120 x 120 x 38 mm Product Dimensions,
• 500 G. Product Weight,
• Black Color,
