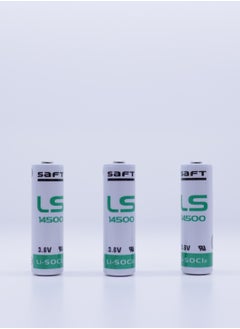

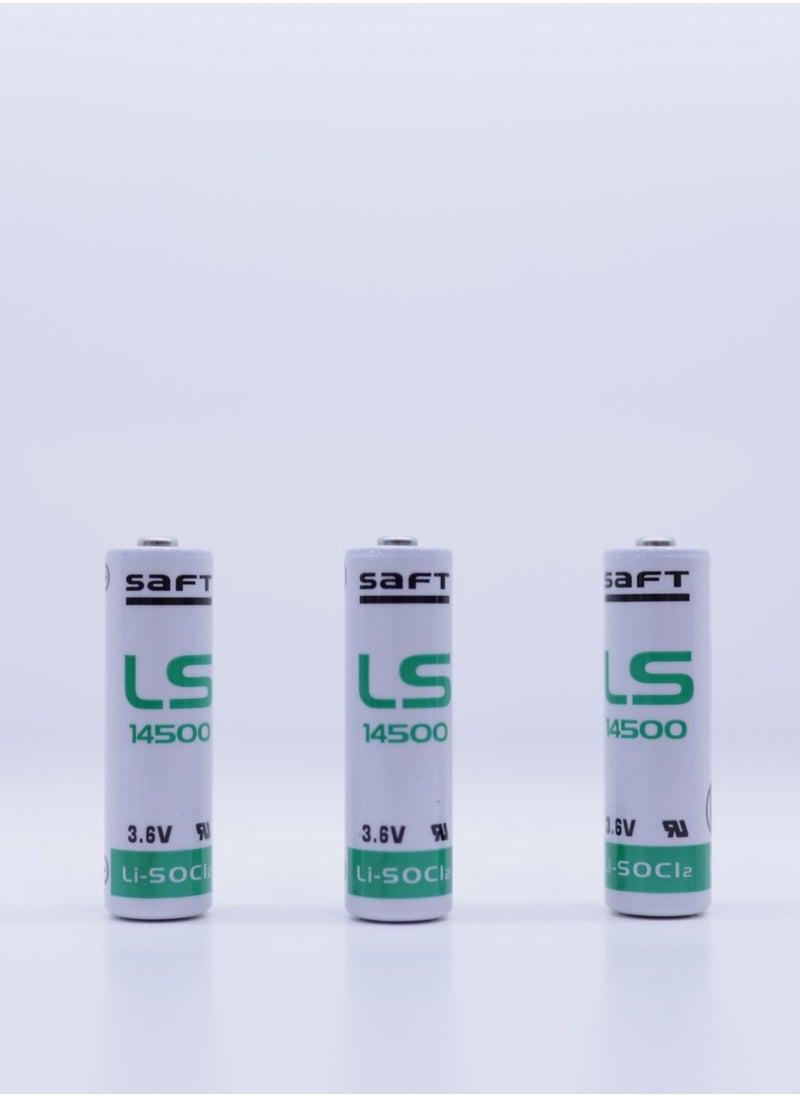

SAFT 3.6V LS14500

OverviewHigh energy density 3.6 V AA-size bobbin cell Saft’s LS 14500 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses. Benefits * High capacity and high energy (1122 Wh/l and 520 Wh/kg) * High voltage response, stable during most of the lifetime of the application * Wide operating temperature range (-60°C/+85°C) * Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year) * Superior resistance to corrosion * Low magnetic signature Key features * Bobbin construction * Well-controlled passivation * Hermetic construction with glass-to metal seal * Stainless steel can * Non-flammable electrolyte * RoHS and REACH compliance * Manufactured in France. Designed to meet all major quality, safety and environmental standards * Safety: UL 1642, IEC 60086-4 * IEC 60079-11 part 10.5, (T4 temperature rating at +60°C) * Transport: UN 3090 and UN 3091 * Quality: ISO 9001, Saft Excellence System, continuous evaluation program * CE: P/N: 04224X Typical Applications * Utility Metering * Internet of Things * Tracking systems * Alarms and security * Connected sensors * Medical devices
