Highlights- 7 Timer Modes: Our solar-powered drip irrigation system features 7 timer modes with 3H / 6H / 12H / 1d / 2d / 3d / 7d, allowing you to customize watering schedules to suit your plants' needs.
- 30 Watering Modes: Drip irrigation kit with 30 different work modes in 01-30, you can adjust the flow rate and duration of watering to ensure optimal growth and health for your plants.
- Solar Powered: Our automatic watering system is powered by solar energy. Each kit comes with all the necessary components to irrigate up to 30 plants, including a 5m main water pipe and 30m water distribution pipes.
- Wide Application: This solar drip irrigation system is suitable for a wide range of applications, including balconies, patios, small gardens without faucet and fixed power supply.
- Multi Protection Mechanisms: Our solar irrigation system features multiple protection mechanisms, including water level detection, motor protection and battery discharge and charging protection, ensuring safe and reliable operation.
OverviewFeatures:
7 Timer Modes: Our solar-powered drip irrigation system features 7 timer modes with 3H / 6H / 12H / 1d / 2d / 3d / 7d, allowing you to customize watering schedules to suit your plants' needs.
30 Watering Modes: Drip irrigation kit with 30 different work modes in 01-30, you can adjust the flow rate and duration of watering to ensure optimal growth and health for your plants.
Solar Powered: Our automatic watering system is powered by solar energy. Each kit comes with all the necessary components to irrigate up to 30 plants, including a 5m main water pipe and 30m water distribution pipes.
Wide Application: This solar drip irrigation system is suitable for a wide range of applications, including balconies, patios, small gardens without faucet and fixed power supply.
Multi Protection Mechanisms: Our solar irrigation system features multiple protection mechanisms, including water level detection, motor protection and battery discharge and charging protection, ensuring safe and reliable operation.
Specification:
Shell material:
Solar panel material: Polycrystalline silicon
Solar panel production process: Glass lamination
Solar panel power: 18V 10W
Solar panel working current: 555mA
Solar panel size: 350 x 235 x 15mm / 13.77 x 9.25 x 0.59in
22 # red + black wrapped wire length: 5m / 16.4ft
Battery: 11.1V 2200mAh 18650 lithium battery
Overcharge protection voltage: 12.75V
Overdischarge protection voltage: 8.1V
Working temperature (charging): -10 ℃ - 45 ℃
Storage temperature (discharge): -10 ℃ - 45 ℃
Internal resistance: Less than 120m Ω
Weight: 138g / 4.86oz
Service life: 500 cycles
Water pump: Brushed DC water pump
Water pump power: 5W
Working voltage: DC 12V
Flow rate: 500-1200Ml/Min
Load current: 0.5A
Working environment temperature: -10 - 45 ° C
Product size: 166 x 114 x 47mm / 6.53 x 4.48 x 1.85in
Product weight: 1.7kg / 3.74lb
Host button description: 1. ON/OFF key: main switch, 2. Watering Time key: working time setting, 3. Interval Time key: interval time setting
Shutdown current: Less than 500uA
Working current: 500mA
030 water pipe length: 30m / 98.42ft (black , inner diameter 3mm, outer diameter 5mm)
085 water pipe length: 5m / 16.4ft (black PE, inner diameter 8mm, outer diameter 10mm)
Drop arrows: 30pcs (Blue, 7-shaped drop arrows 100 x 50mm /)
Water level line length: 5m / 16.4ft
Product color: Dark Green
Waterproof grade(host): IP65
Solar charging time: about 4-5 hours
Control mode: Switch
Maximum water flow: 2L/min
Timing watering: 1-30min
Timing: 3H, 6H, 12H, 1d, 2d, 3d, 7d

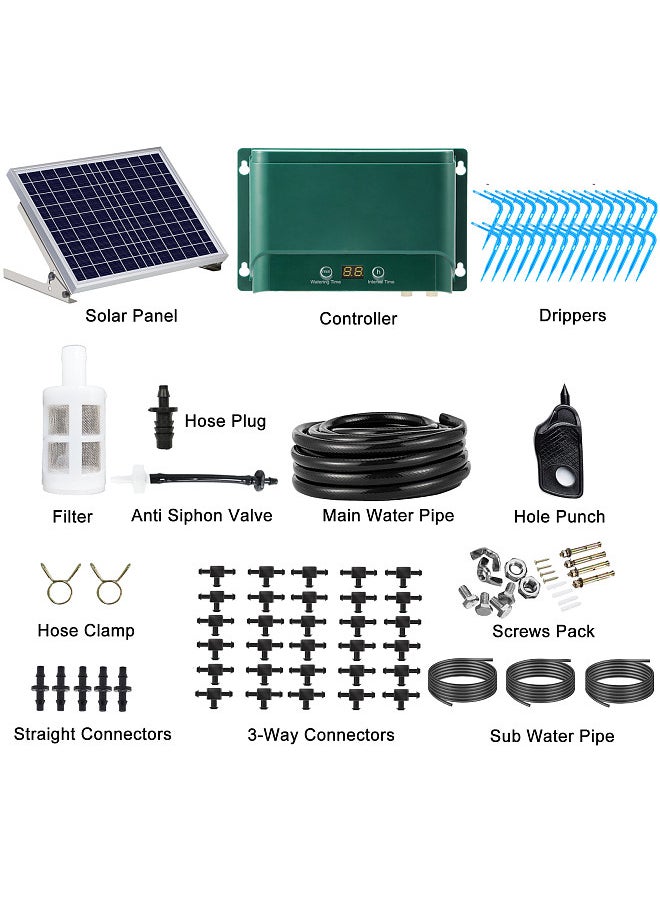

Packing List:
1 x Solar Panel
1 x Controller
1 x Bracket
1set x 5m / 16.4ft Main Water Pipe
1set x 30m / 98.42ft Sub Water Pipe
1 x Instruction
30 x Drippers
30 x Three-way Connectors
5 x Straight Connectors
1 x Anti Siphon Valve
1 x Hole Punch
1 x Main Water Pipe Plug
2 x Main Water Pipe Clamps
1 x Filter
1bag x Screws
