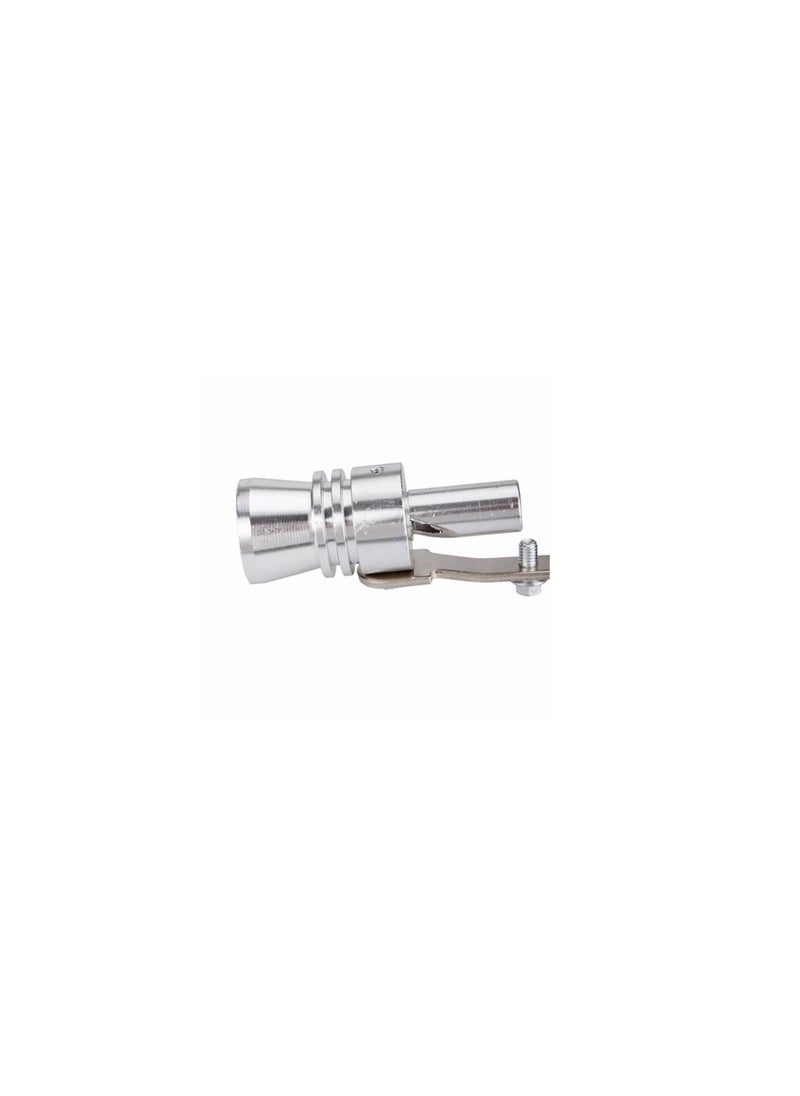

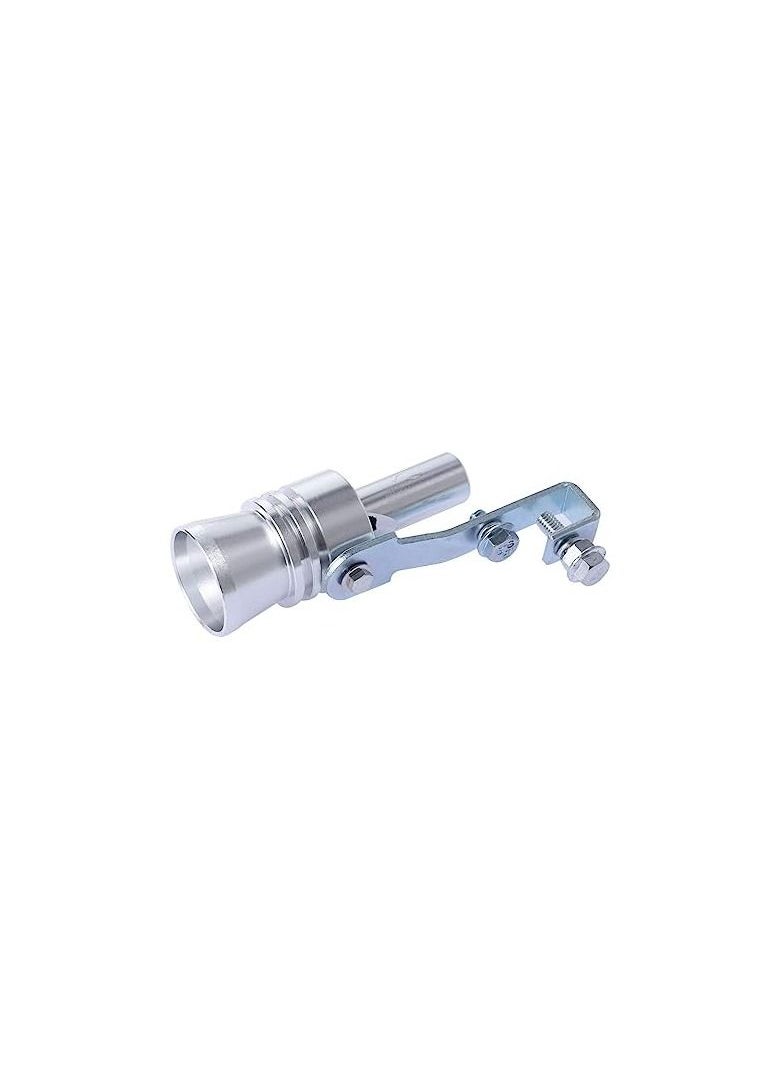

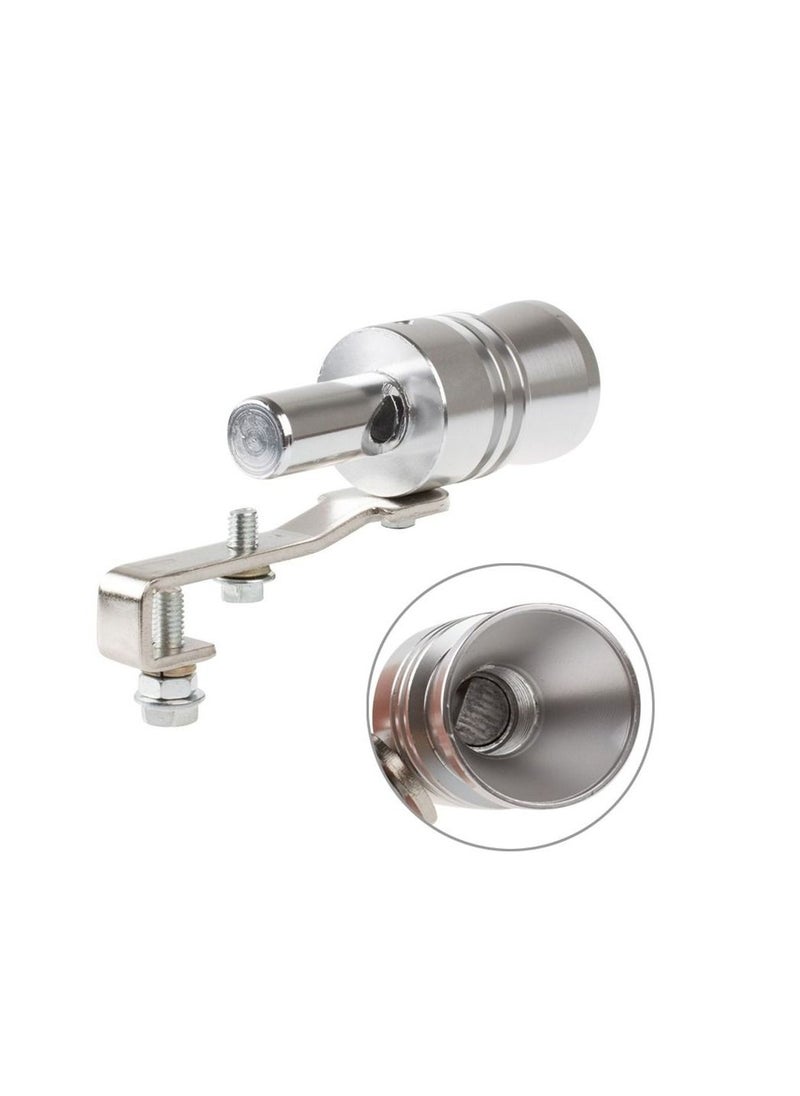

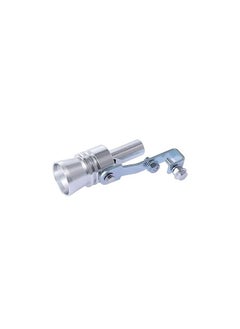

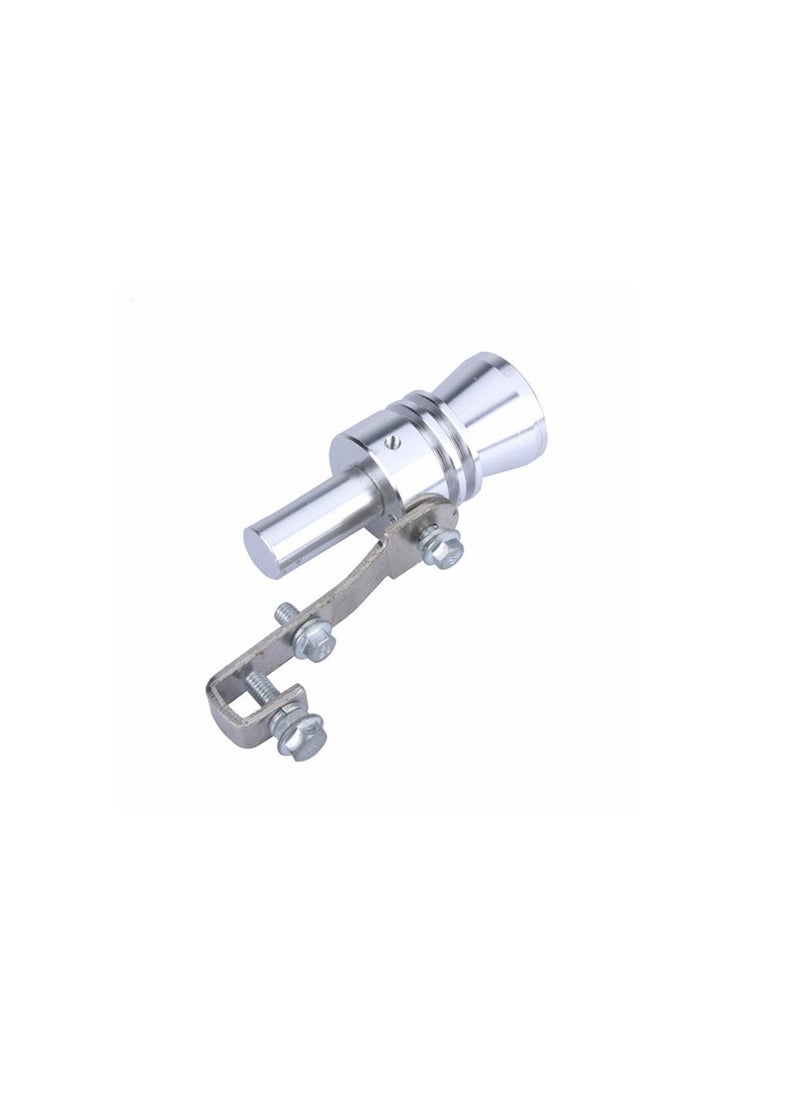

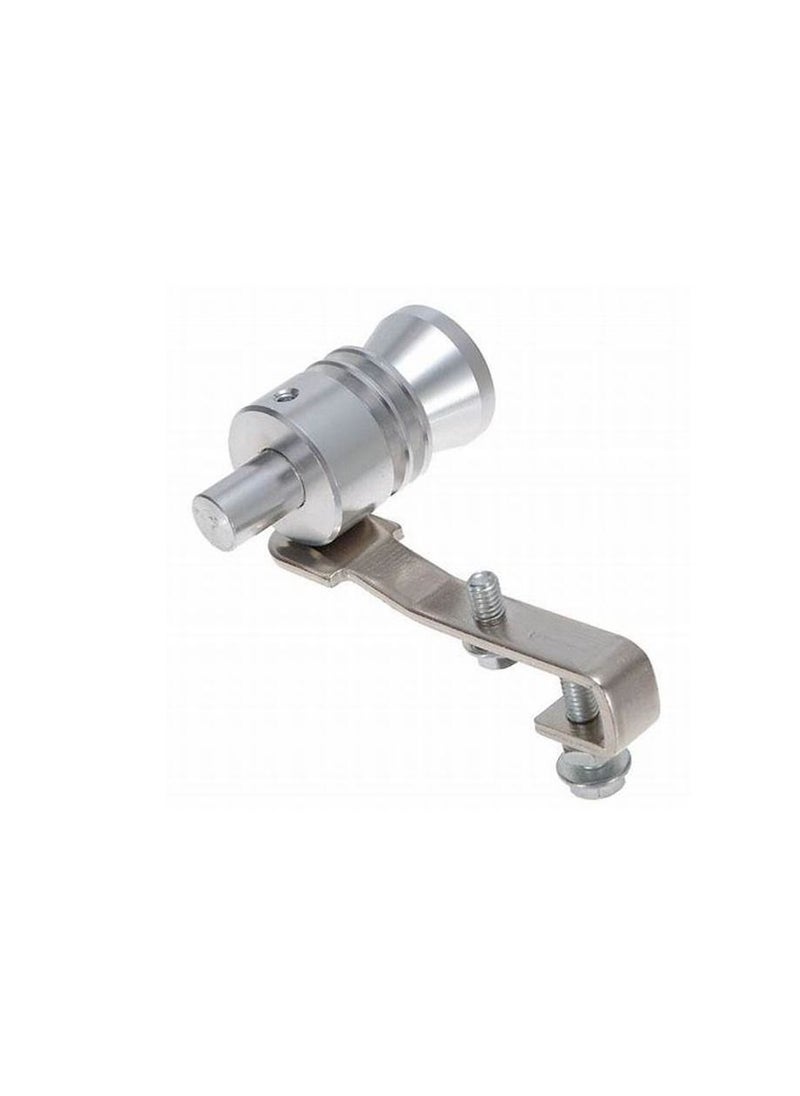

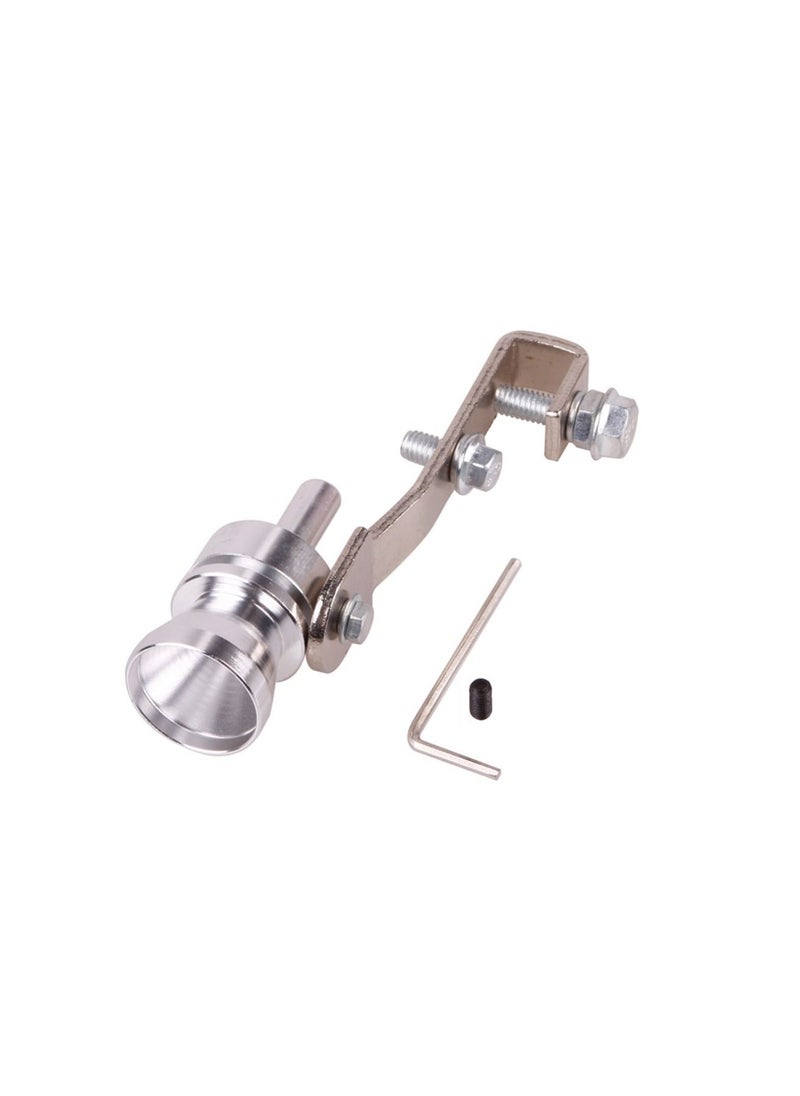

Turbo-Sound Pipes Whistle Effect for Exhaust Pipes Aluminum Alloy Size Large (Dyt-1699L) Silver

OverviewTurbo-Sound, Whistle Effect for Exhaust Pipes. EFFETTO TURBO (Generatore di sibilo). Aluminium Alloy. FEATURES: *Easy to install, it applies inside the exhaust tailpipe and emits a hissing typical of turbocharged cars. *Made of aluminium alloy, lightweight and durable. INSTALLATION: OPTION-01: Simple fixing (1 screw without hole), only suitable for terminals with internal edging. 1. Remove screw 1 from the fixing bracket. 2. Place inside the terminal (fig.2) and tighten to screw 2. OPTION-02: (Recommended) Fixing Deppies (2 Screws with Hole), suitable for most exhaust terminals. 1. Remove the screw 1 from the fixing bracket. 2. Place TURBO-SOUND outside the exhaust end and temporarily secure it by tightening the screw 2(Fig.1). 3. With a marker or metal bit, mark the exhaust end exactly at the screw hole 1, then remove TURBO-SOUND. 4. With a drill, drill a ®6.5mm hole in the previously marked point. 5. Place TURBO-SOUND inside the exhaust end, and screw screw 1 (Fig.2). 6. Make sure the lock nut of screw 2 is completely unscrewed until you touch the head of the street. 7. Tighten screw 2 and then the lock nut to prevent any loosening due to vibrations (Fig.2). Note: *TURBO-SOUND has not been designed for use in curved terminals, however, it could adapt by curving, The fixing bracket. *Not suitable for terminals smaller than indicated in diameter. *For terminals with excessively flared edge, it may be necessary to modify the countersunk as shown. *Before buying, make sure that there is enough space (minimum 11-12cm) internally at the exhaust terminal for the insertion of the TURBO-SOUND. *After mounting, check at regular intervals that the screws are firmly screwed. *Product intended for competition vehicles, exhibition vehicles and for use on private roads & cireuits. Size Tailpipe Length Displacement S 32-43 11 1000-1600cc M 37-48 11 1600-2000cc L 44-55 11 2000-2400cc XL 56-85 12 2400...cc
