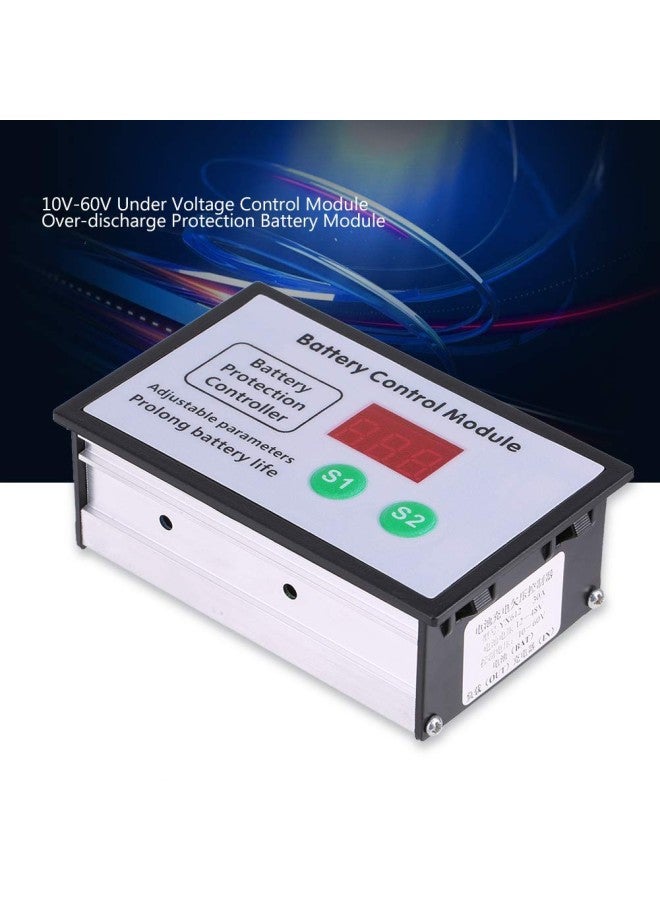

Under Voltage Controller, 10V-60V 30A Battery Charging Controller Undervoltage Control Protection Module Regulator Low Voltage Cut Off Switch

Descriptions:
This battery control module, features automatic charging, automatic power off, suitable for storage batteries and lithium batteries. Parameters is adjustable and can be saved in memory after power failure

Specification:
Control Voltage: 10V-60V
Control Current: 30A
Control accuracy: 0.1V
Voltage Deviation: ±0.1V
Application: storage batteries and lithium batteries
Size: Approx. 9.5*6*3.3cm / 3.7*2.3*1.2inch
Weight: 110g

Product settings:
Take 12V battery for example
Press S 1 key until the digital tube flash to set the over-voltage is 14.4V. Press S 2 key until the digital tube flash to set the under-voltage is 10.5V. When the battery is below 10.5V, the load should be disconnected after 6 seconds delay. If the battery voltage is restored to more than 10.5V in 6 seconds, the load will continue to work and the delay will be operated not properly due to the fluctuation of the battery voltage when the large current load is started. When the load is disconnected, the module is connected to the charger, and the load stops charging when the load is up to 14.4V

Voltage setting method:
S 1 over-voltage: charging stop voltage or load start voltage
At normal mode, press S 1 button to show current over- voltage value.
Press and hold S 1 button till display flashes, then adjust over-voltage value by pressing S 1 and S 2 button.
S 2 under-voltage: charging start voltage or load stop voltage
At normal mode, press S 2 button to show current under- voltage value.
Press and hold S 2 button till display flashes, then adjust under-voltage value by pressing S 1 and S 2 button.
At normal electricity mode, Press and hold S 1 and S 2 button till the digital tube display 888, then the original factory settings is completed successfully.

Package Included:
1 x Battery Control Module
