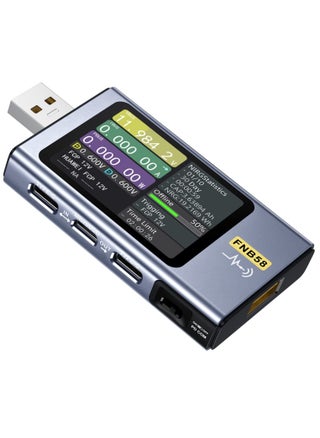

USB C Tester 4-28V 7A LCD A&C Voltage Current Power Multimeter with Bluetooth, Fast Charge Detection Trigger Capacity Ripple Measurement PD2.0 PD3.0 QC2.0 QC3.0

209.95
Inclusive of VAT
nudge icon
Free Delivery
nudge icon
Only 1 left in stock
nudge icon
Free Delivery
noon-express
Get it by 2 May
Order in 16 h 33 m
VIP ENBD Credit Card

Delivery
by noon
Delivery by noon
Cash on
Delivery
Cash on Delivery
Secure
Transaction
Secure Transaction
Product Overview
Highlights

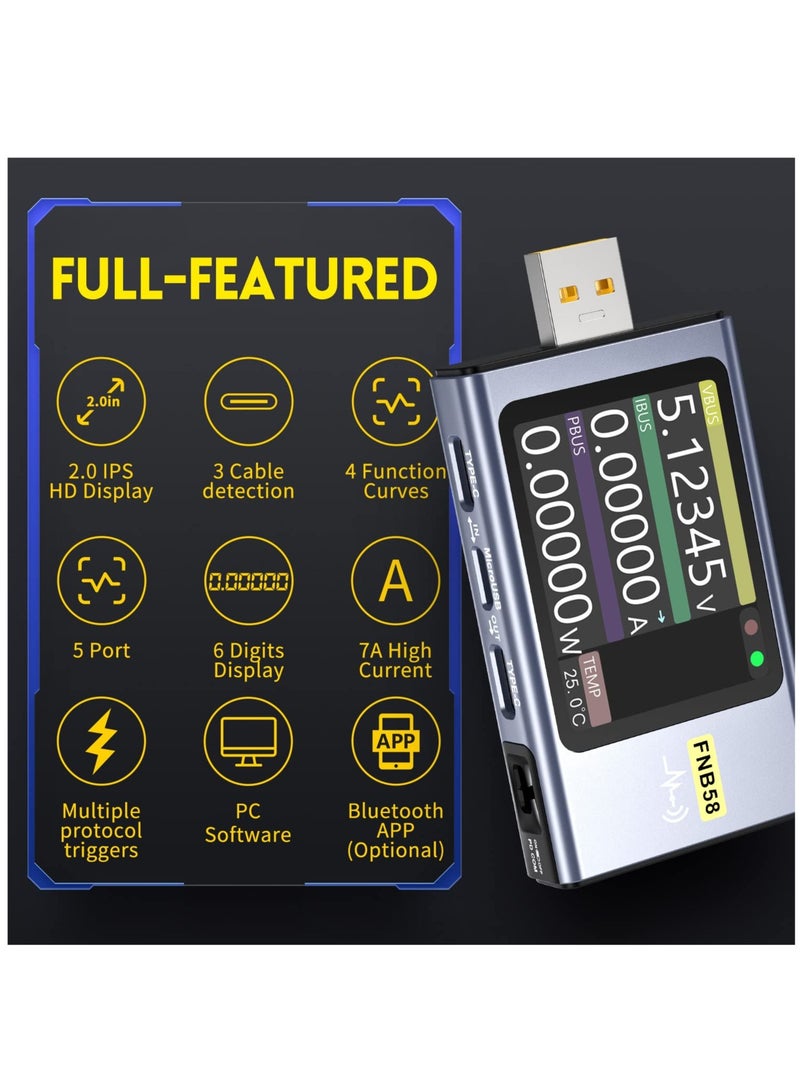

  • Updated Designed USB Tester: FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a high-reliability, high-safety USB voltage andcurrent detection meter
  • Multifunction USB Digital Tester: FNB58 uses external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks
  • FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers
  • FNB58 supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring
  • Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate. Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.
Overview

Real-time voltage and current curve

View the change of the charging curve in real time, find the abnormal charging immediately.


Offline curve recording

Supports up to 9 hours of offline voltage and current curve recording, charging process fully displayed.


D+/D- voltage curve

Charging protocols Changes. Master in real time.


High-speed power ripple measurement

Charger ripple measurement, easy to screen inferior chargers.
