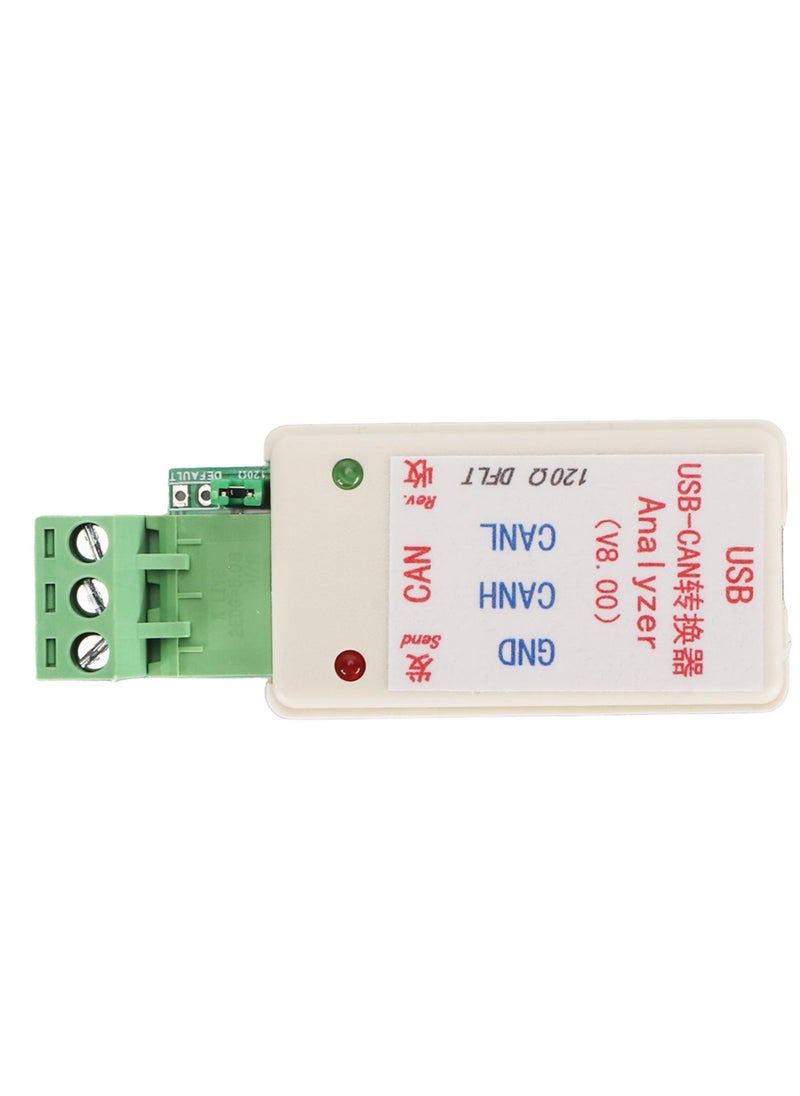

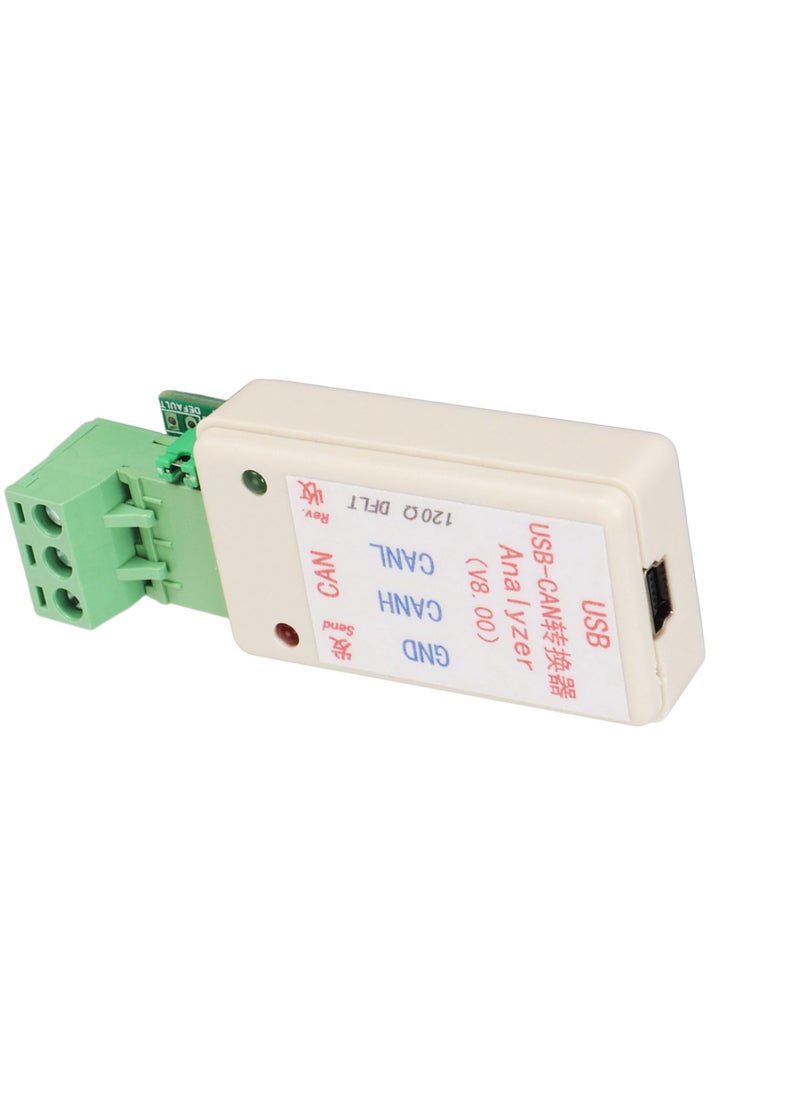

USB to CAN Analyzer Adapter, USB to CAN Adapter, USB CAN Bus Converter Analyzer PVC High Conversion USB to CAN Interface Adapter with USB Cable

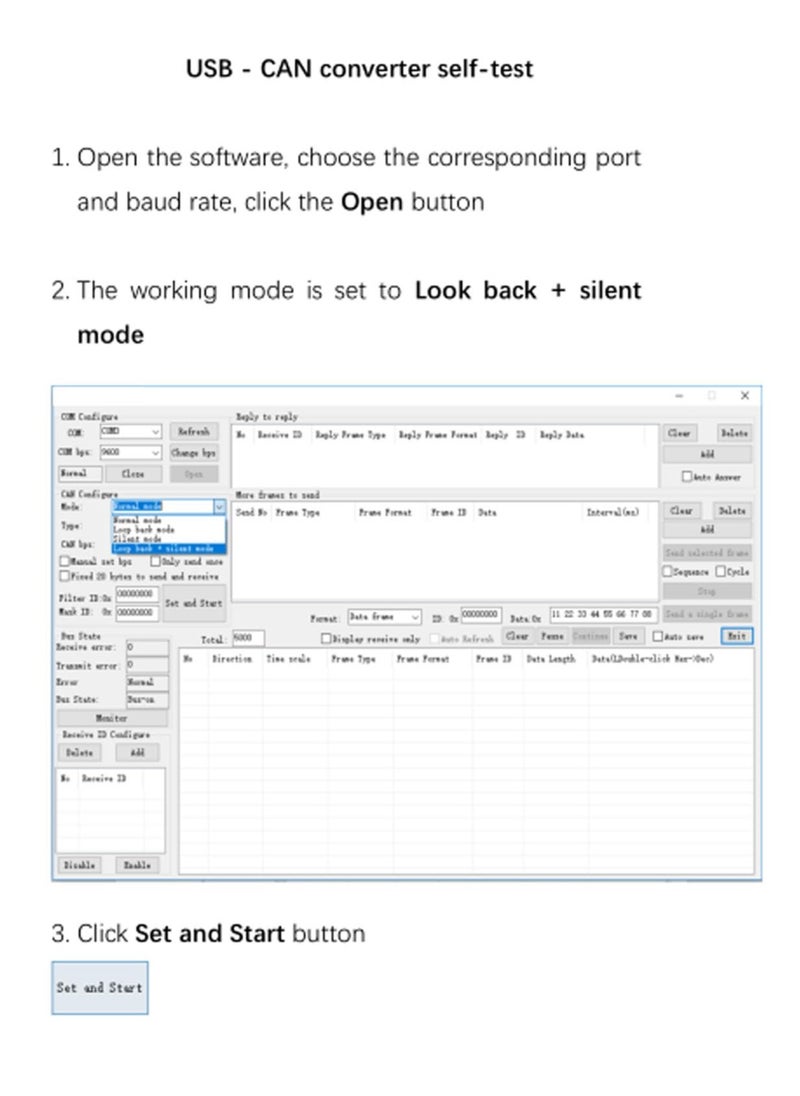

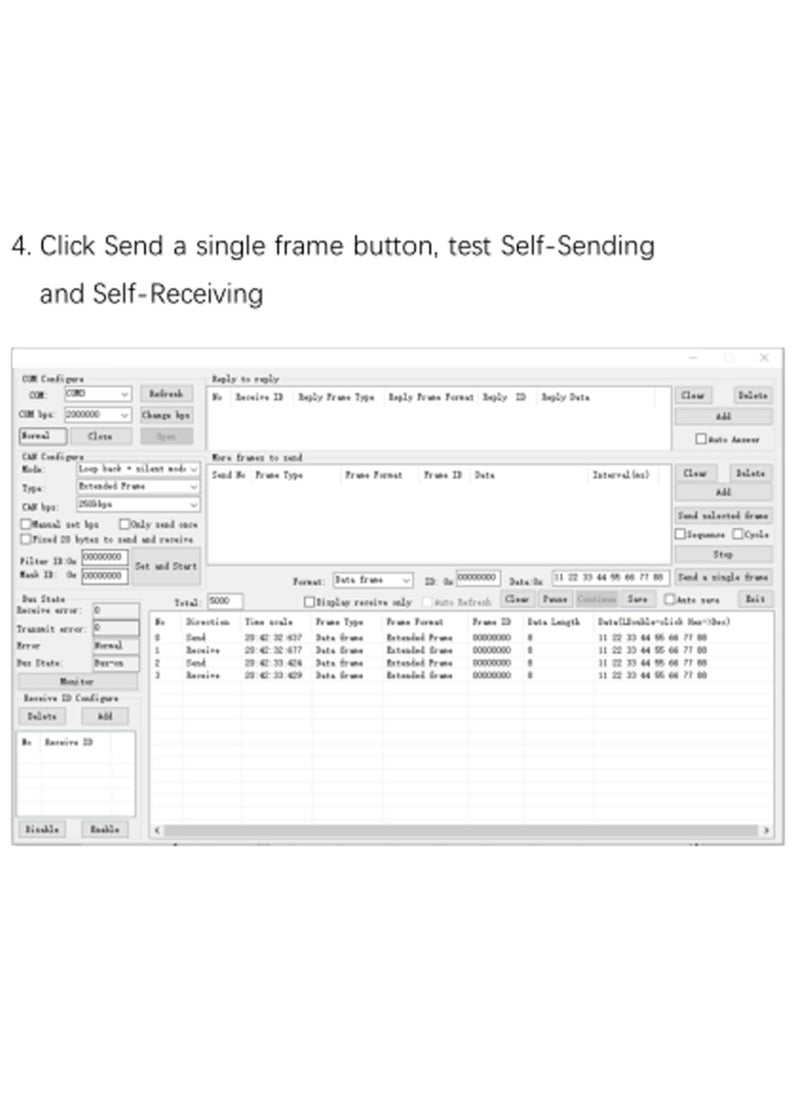

OverviewItem Type: USB to CAN Analyzer Adapter Material: PVC Basic Function: 1. Communication support for CAN2.0A (Standard Frame) and CAN2.0B (Extended Frame). 2. CAN communication baud rate range (5K-1M), customizable CAN baud rate. 3. Timestamp displayed for both received and transmitted CAN data. Received data can be displayed sequentially or refreshed. 4. Ability to send single or multiple frames of data, manually or at specified intervals. Supports looping for easier debugging. Enhanced Function: 1. Automatic response capability for received data. When configured to receive a specific ID, it can automatically reply with data from a set sending ID. 2. Manual monitoring of CAN bus status. 3. Direct configuration of desired received ID, without the need for filter or masking IDs. 4. Four selectable working modes: Normal mode for direct communication with CAN devices; Loopback mode for self testing of the converter, with data being sent and received on the CAN bus; Silent mode for passive monitoring of CAN bus data without affecting communication; Loopback Silent mode generally used for hot testing the CAN converter. 5. Received and transmitted data can be saved in TXT or Excel format. 6. Baud rate of the virtual COM port can be modified, with default communication rate exceeding 1M, ensuring efficient conversion. Advanced Function: 1. All configurations are automatically saved for future use. 2. Easy secondary development, requiring only handling of send/receive commands. 3. Added transparent function. 4. Software interface can be switched between Chinese and English. PackageList: 1 x Adapter 1 x Connection Cable
