Generic - Waterproof Relay, 4-PIN 40/30 AMP 12 V DC Waterproof Relay with Harness - Heavy Duty 12 AWG Tinned Copper Wires 2 Pack SPST Automotive Relay - Image 1

Generic

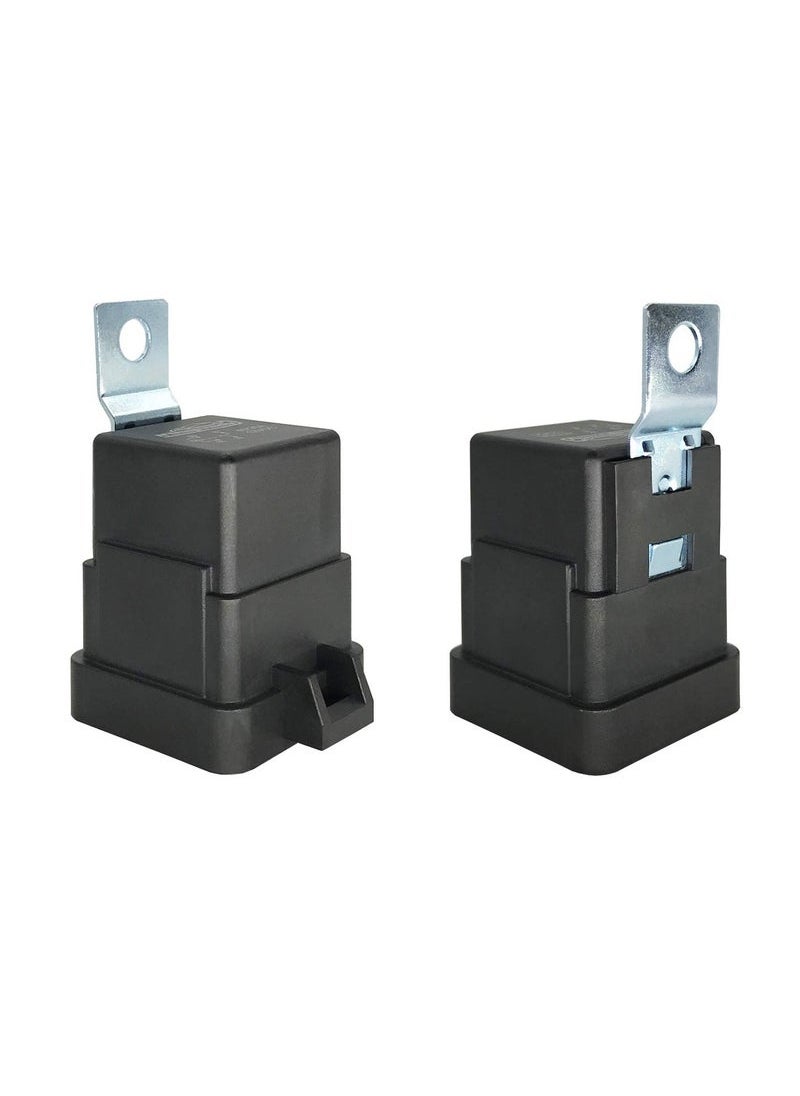

Waterproof Relay, 4-PIN 40/30 AMP 12 V DC Waterproof Relay with Harness - Heavy Duty 12 AWG Tinned Copper Wires 2 Pack SPST Automotive Relay

94.35

Inclusive of VAT

Get it by 29 May

Order in 7 h 51 m

Delivery by noon

High Rated Seller

Cash on Delivery

Secure Transaction

Explore other bestsellers in
Automotive Light & Electrical Parts

BANK OFFERS

Earn 5% cashback with the Mashreq noon Credit Card.

SELLER

Item as Described

Partner Since

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for Please make sure you made tight connections
12-volt 4-prong relay. Excellent water-repellent and dustproof ability, but not using it in water
For the people whose relays are burning, please make sure you are making tight connections (especially on the load wires), read the specs on the item description, and ensure that the operating environment meets the safety requirements of the relay

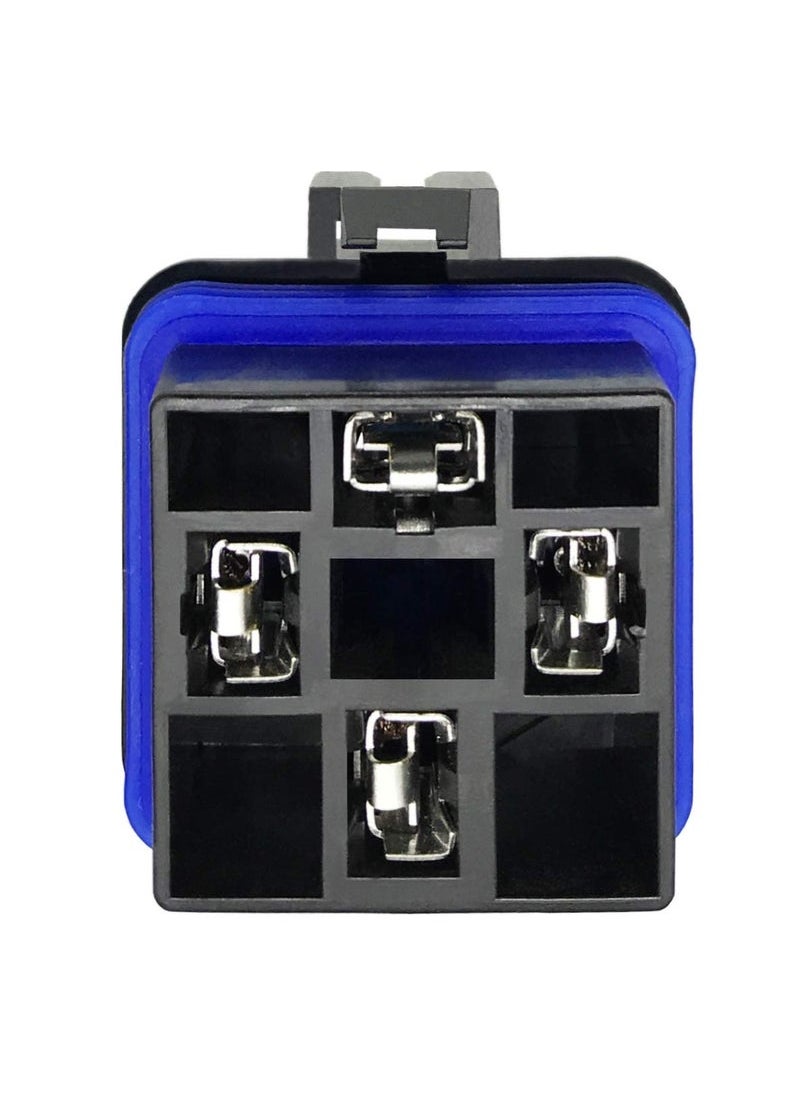

Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors

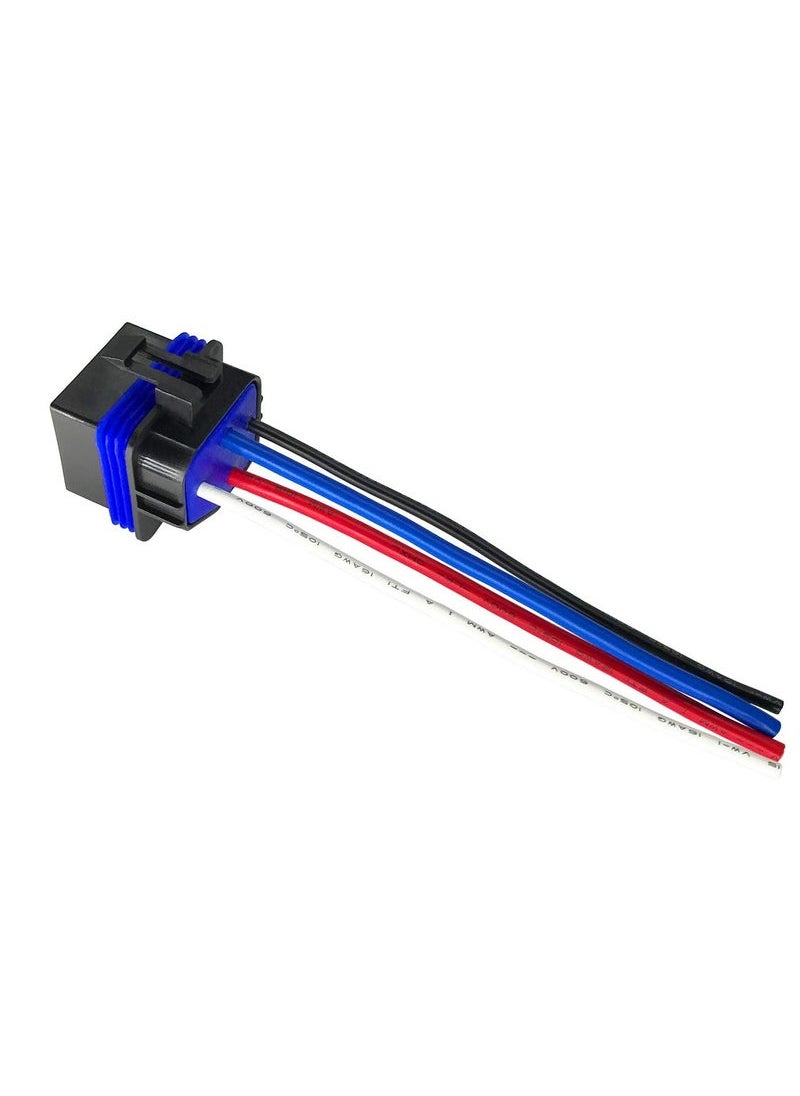

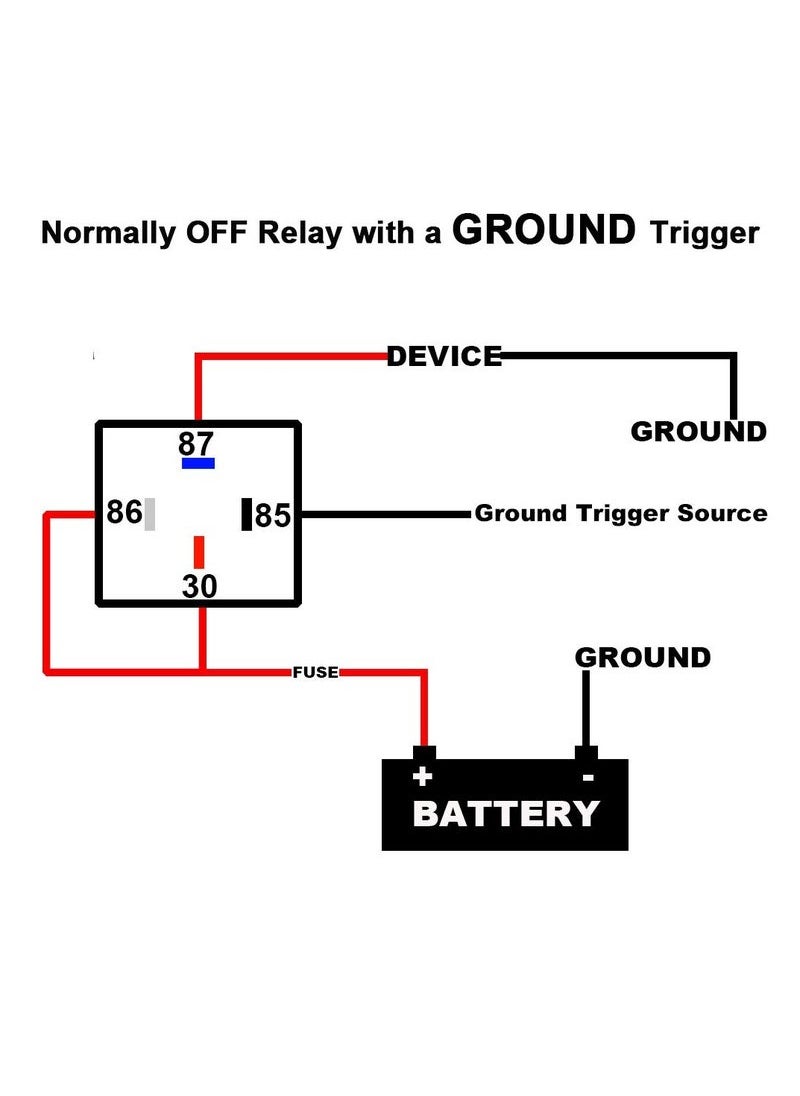

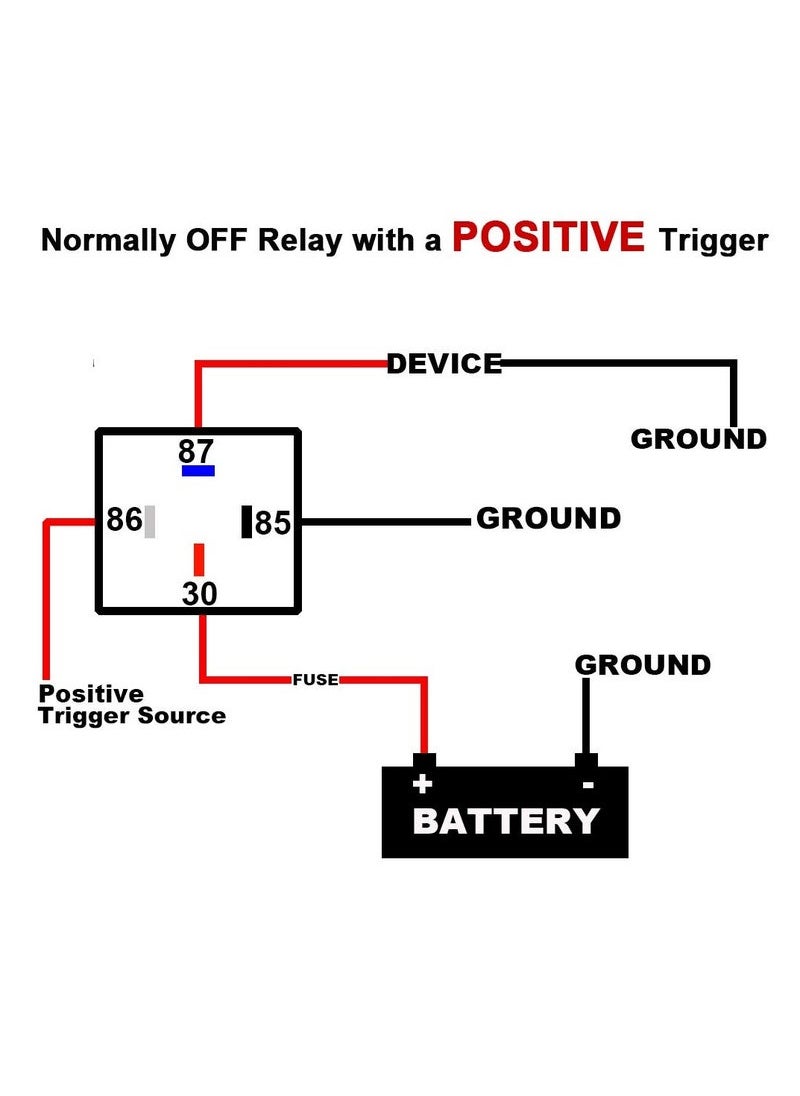

Thick 12 gauge wire for the load terminals. Easy to install just make sure you follow the wiring diagram. Works for both positive and negative activation

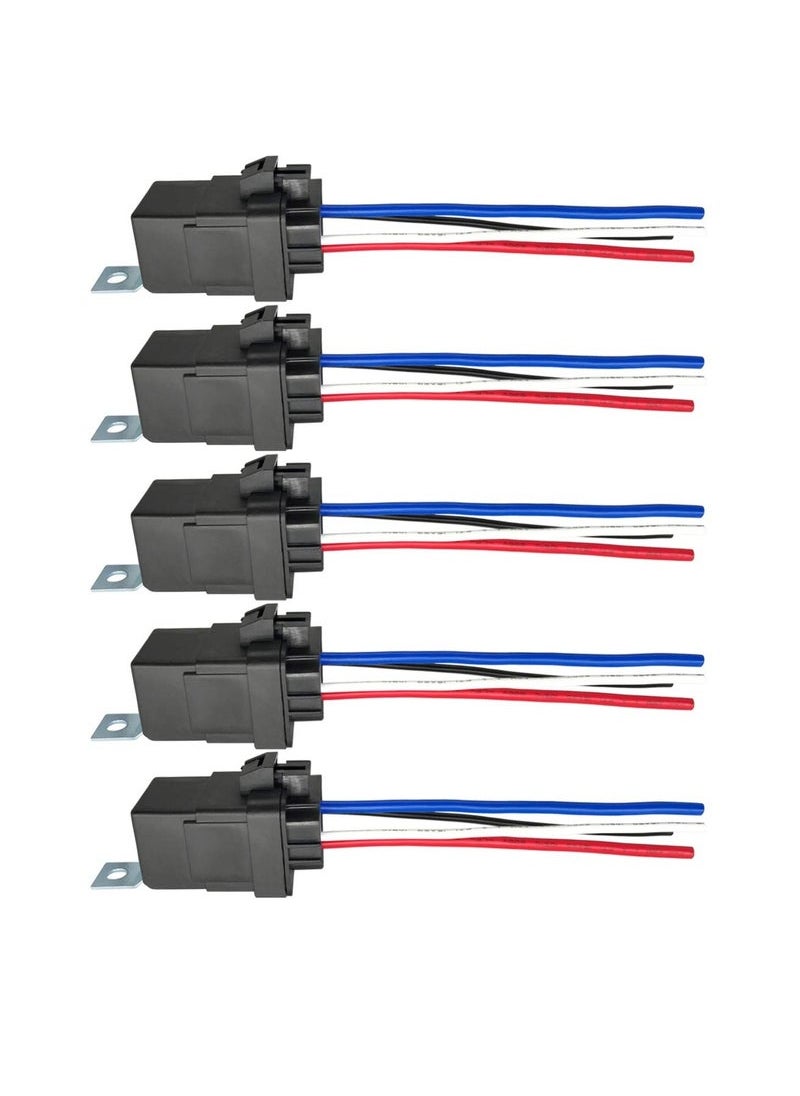

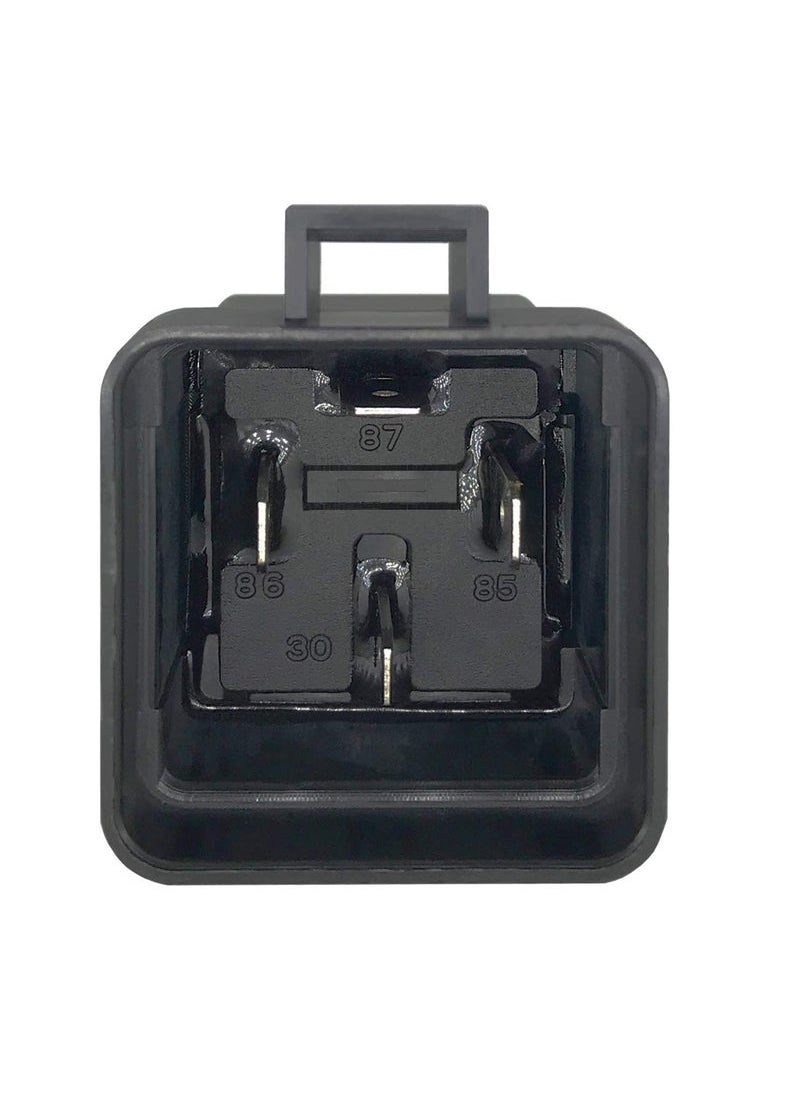

OverviewProduct DescriptionNominal Coil Voltage: 12 VDCCoil Power: 1.8 WCoil Resistance: 80 ΩMust Operate Voltage: 6~8 VDCMust Release Voltage: 0.6~3.6 VDCMaximum Applied Voltage: 15.6 VDCContact Ratings: NO 40A 14VDCContact Resistance: 100mMAX (at6VDC 1A)Max Switching Current: 40AMax Switching Power: 560 W12AWG Tinned Copper Wire: Pin 87 Blue12AWG Tinned Copper Wire: Pin 30 Red16AWG Tinned Copper Wire: Pin 85 Black16AWG Tinned Copper Wire: Pin 86 WhiteLife Expectancy Electrical: 100,000 Operations (at30 Operations/minute)Life Expectancy Machanical: 10,000,000 OperationsTemperature Range: -30 ~ +80 degrees CelsiusVibration Resistance: 10~55Hz, 1.5mmShock Resistance: Operations Extremes: 10g. Damage Limits: 100gHunidity: 40% ~ 85%Insulation Resistance: 100mΩ Min at500VDCDielectric Strength Between Open Contacts: 500VAC (for one minute/sec)Between Contactw and coil: 750AC (for one minute/sec)Operate Tice: 7msRelease Tice: 5msFor your and others' safety, let professional technicians install the equipmentPackage Content: 5 * 4 PIN 12VDC Waterproof relay with harness

Waterproof Relay, 4-PIN 40/30 AMP 12 V DC Waterproof Relay with Harness - Heavy Duty 12 AWG Tinned Copper Wires 2 Pack SPST Automotive Relay
